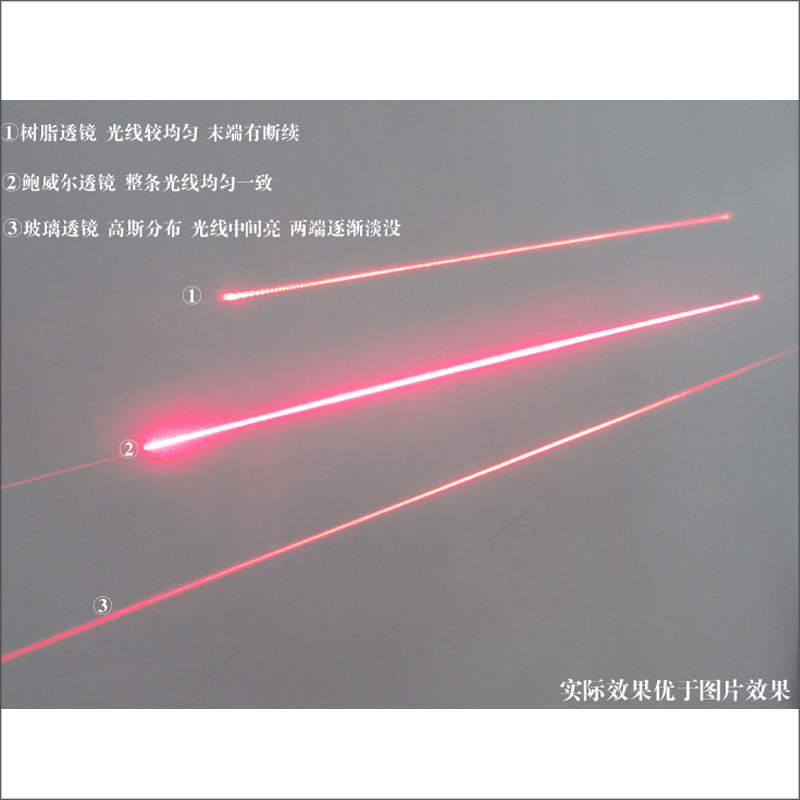

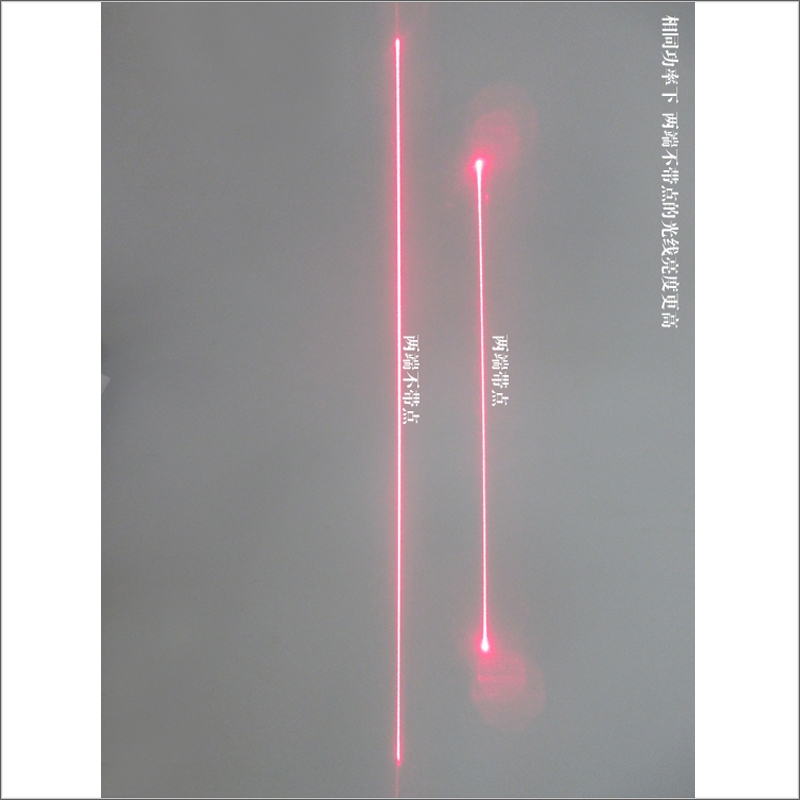

Product Title：FU650AB100-GD16-WLD powell lens line laser 650nm <100mw 3-5VDC line laser light projector no point at end
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Model: FU650AB100-GD16-WLD
Line specification:
Wavelength(nM): 650±10 Red color
Output Power (mW): <100
Operating Voltage(VDC): 5

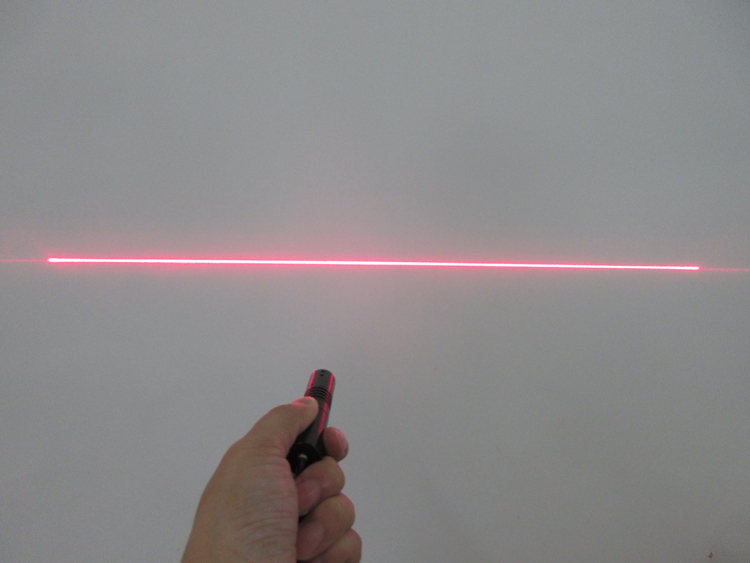

Projection Type : Line

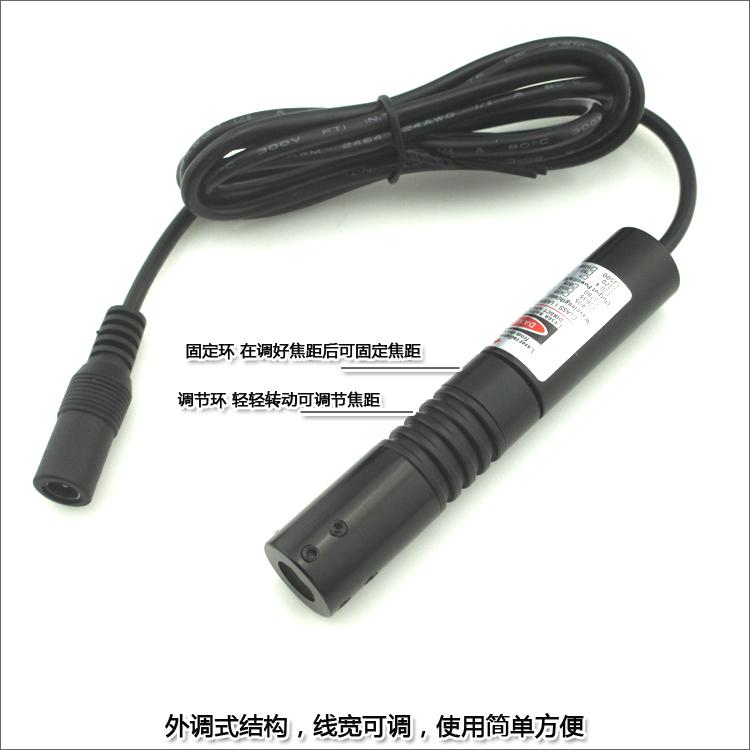

Beam focus: Line thickness adjustable(To thick or thin)
Projection Fan Angle(°, full angle) : 7~110
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air
Standard Warranty (months): 12

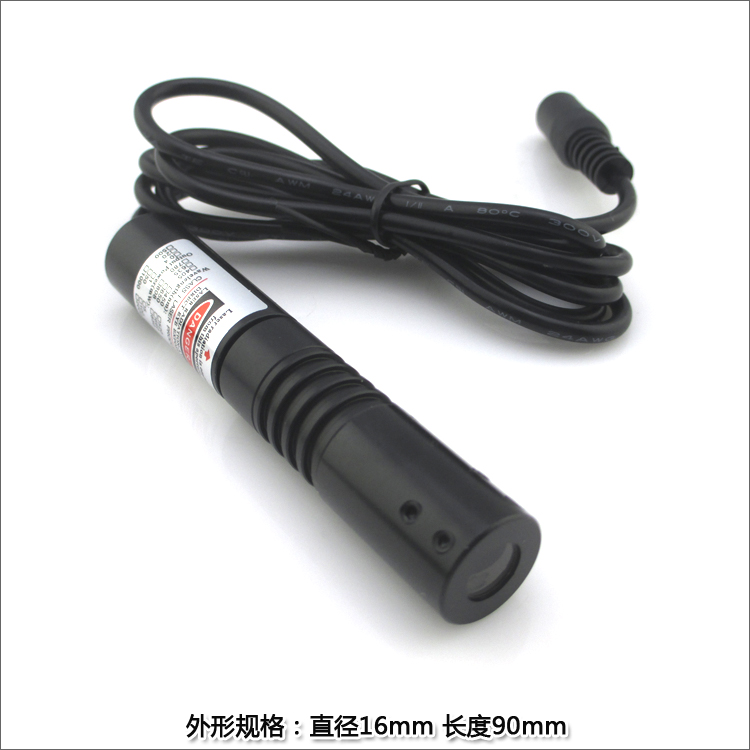

Laser Head Dimensions (mm): 90(L) x 16(D)
------------------

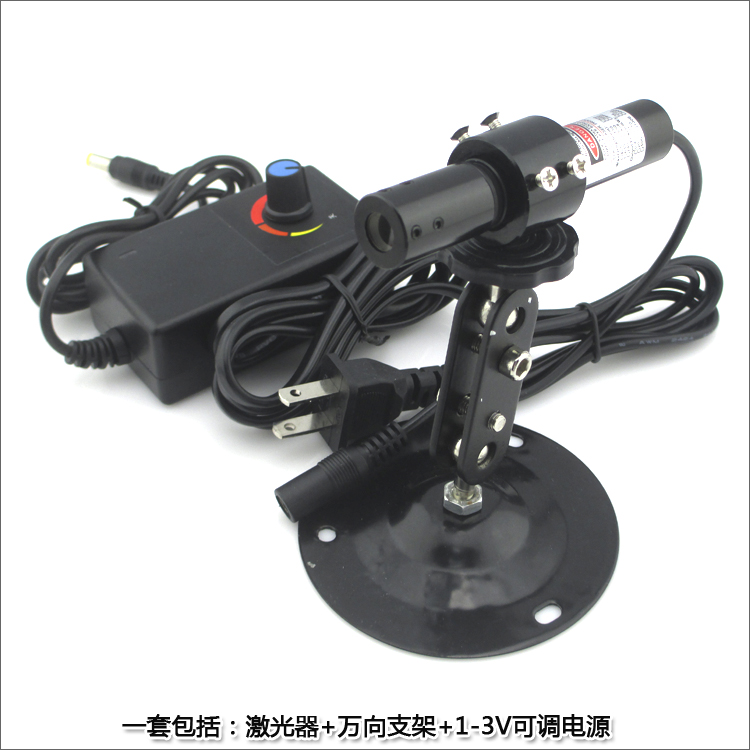

Package Includes:
Laser module -1 piece
1-3VDC power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
FU-Lasers for you!
FU650AB100-GD16-WLD powell lens line laser 650nm <100mw 3-5VDC line laser light projector no point at end
