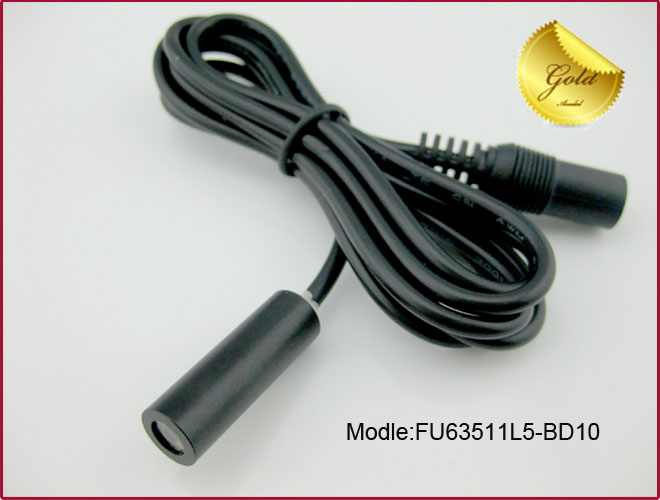

FU63511L5-BD10 635nm 5mw red line laser module
Line specification：
Wavelength(nM): 635±10
Output Power (mW): <5
Operaing Voltage(VDC): 3~5
IEC Safety : Class 2
Projection Type : Line
Beam focus: Fixed
Projection Fan Angle(°, full angle) : 10~120
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) 1
Cooling Method : Passive Air
Standard Warranty (months): 6
MTTF (operational hours) : 3000

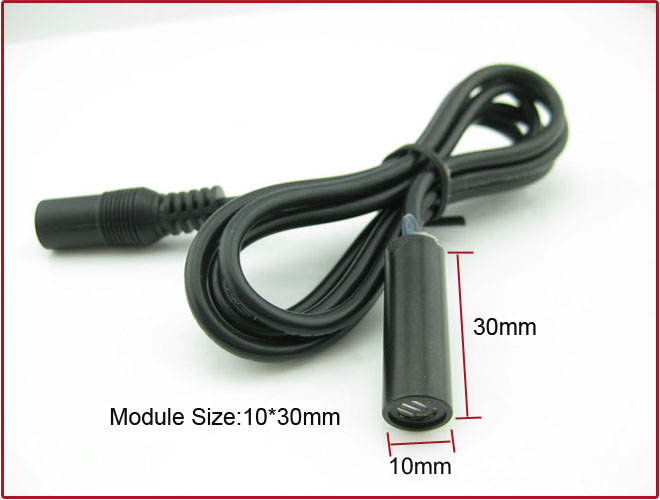

Laser Head Dimensions (mm) 30 (L) x 10 (D)
------------------

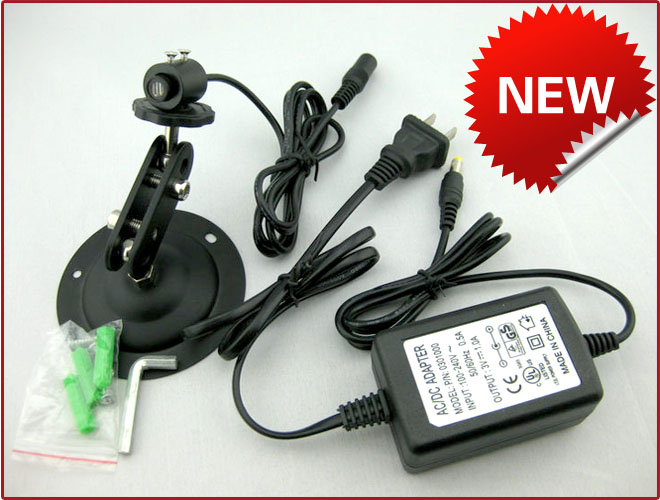

Package Includes:
Laser module -1 piece
Aluminum casing with tripod mount -1 piece
Power supply -1 piece
More laser products or service(OEM/ODM),please contact us!
