FU65011L100-BD22 Lines laser module 100mW
 |
FU65011L100-BD22 Download |
Line specification：
Wavelength(nM): 650±10
Output Power (mW): <100
Operaing Voltage(VDC): 3~5
IEC Safety : Class 2

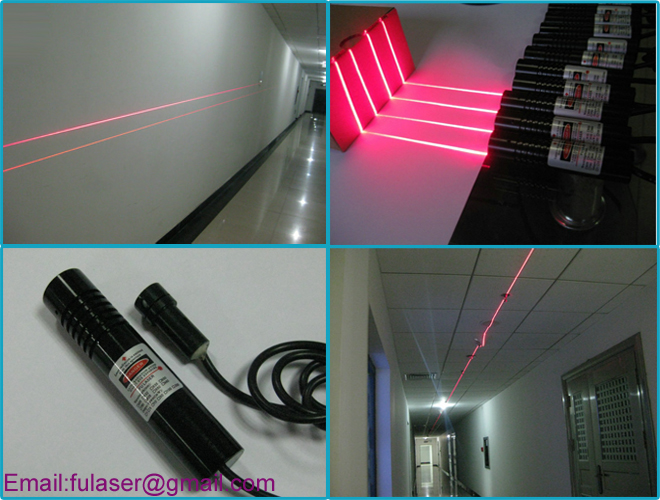

Projection Type : Line (Cylindrical Lens CYL)
Beam focus: Fixed
Projection Fan Angle (°, full angle): 110
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) 1
Cooling Method : Passive Air
Standard Warranty (months): 12
MTTF (operational hours) : 5000

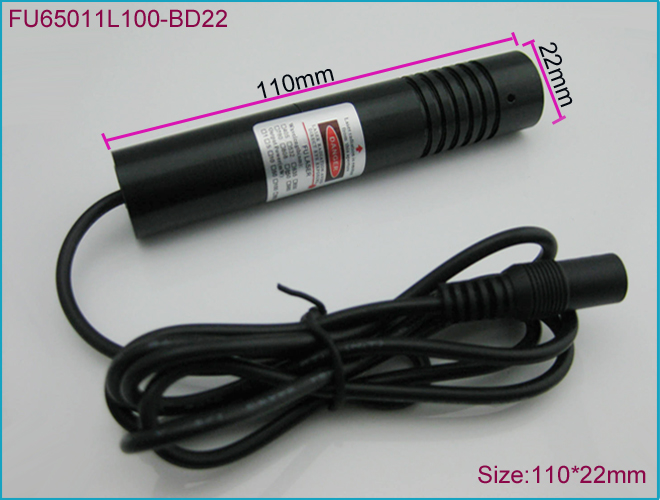

Laser Head Dimensions (mm) 110 (L) x 22 (D)
------------------
Package Includes:
Laser module -1 piece

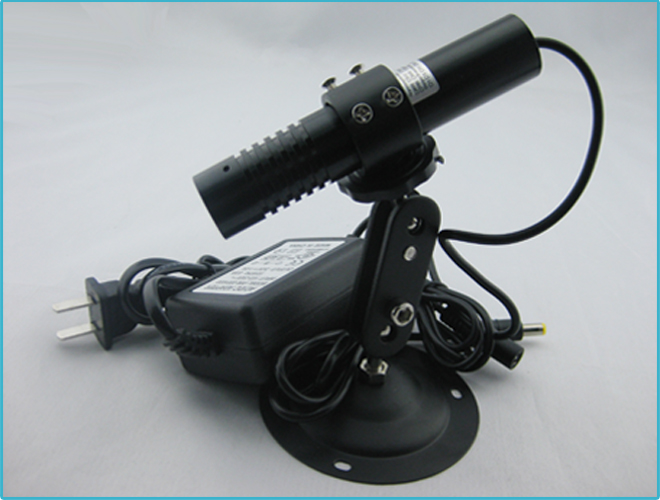

Aluminum casing with tripod mount -1 piece
Power supply -1 piece
