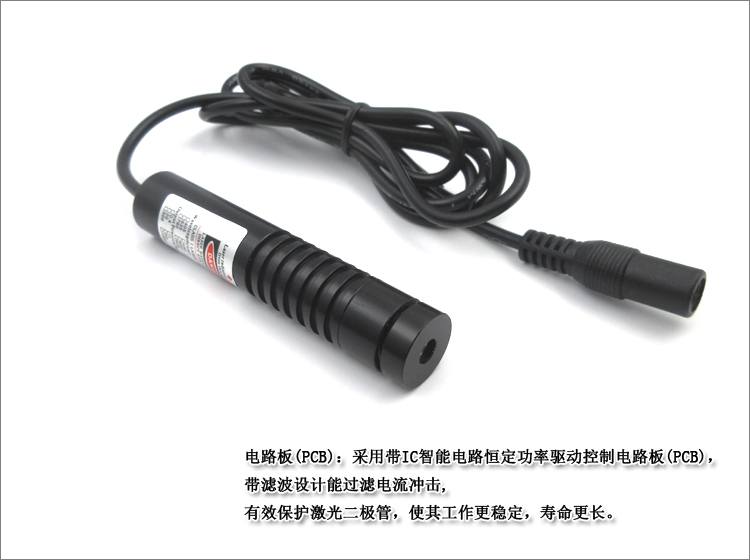

Product Title：FU635XYD1200-GD1682(Dot) 630-640NM 0-1200mW red small round dot/spot/point laser diode module lazer light lamp locator 16x82mm(Diameter x length)

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

----------------------------------------------------

 Model: FU635XYD5-GD1682(635nm <5mW)

(Operating voltage: 2.8-5.2V DC)

----------------------------------------------------

Model: FU635XYD10-GD1682(635nm <10mW)

(Operating voltage: 2.8-5.2V DC)

---------------------------------------------------

Model: FU635XYD20-GD1682(638nm <20mW)

(Operating voltage: 2.8-5.2V DC)

----------------------------------------------------

Model: FU635XYD30-GD1682(638nm <30mW)

(Operating voltage: 2.8-5.2V DC)

---------------------------------------------------

Model: FU635XYD120-GD1682(638nm <120mW)

(Operating voltage: 2.8-3.2V DC)

----------------------------------------------------

Model: FU635XYD220-GD1682(639nm <220mW)

Notice: It need add heat-sink if work > 30 seconds.

(Operating voltage: 2.8-3.2V DC)

---------------------------------------------------

Model: FU635XYD700-GD1682(638nm <700mW)

Notice: It need add heat-sink if work > 30 seconds.

(Operating voltage: 9-24V DC)

----------------------------------------------------

Model: FU635XYD1200-GD1682(637nm <1200mW)

Notice: It need add heat-sink if work > 30 seconds.

(Operating voltage: 9-24V DC)

---------------------------------------------------

Different model but in same parameter:

Wavelength(nM): 635±10

Output Power (mW): <1200

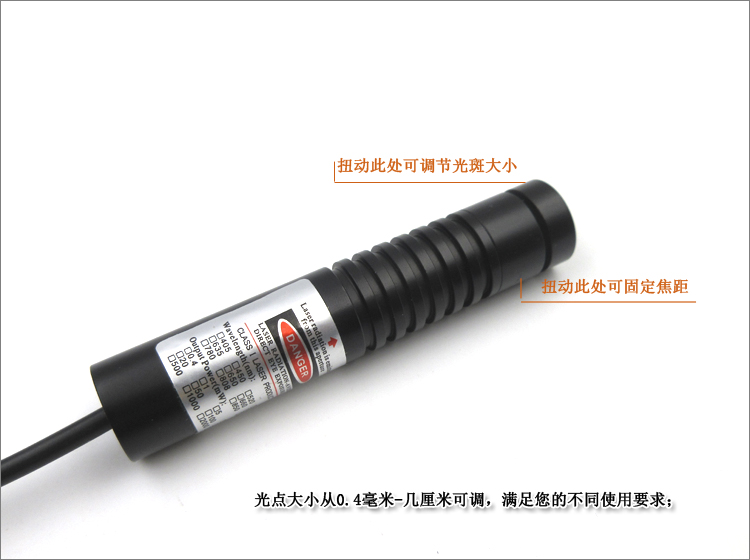

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

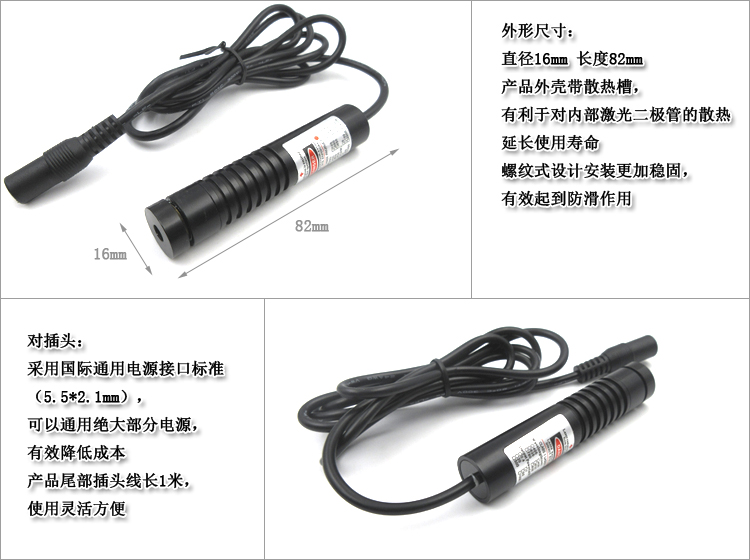

Laser Head Dimensions (mm): 82(L) x 16(D)



Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

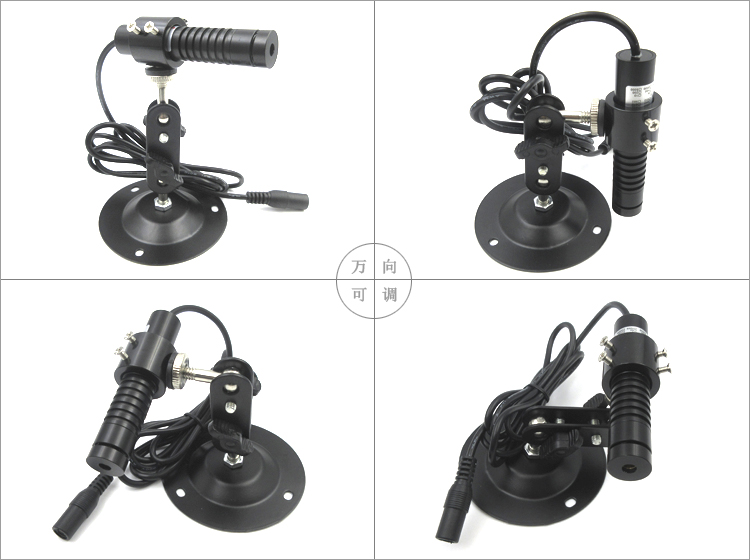

Tripod/support/holder -1 piece





FU-Lasers for you!
