Product Title：FU635AD04-YC4 4*9.5mm include PCB 635nm 0.4mW red dot laser module include PCB Class 1 spot laser diode module light pointer, Japan standard

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU635AD04-YC4

Dot specification:

Wavelength(nM): 635±10

Output Power (mW): <0.4

Operating Voltage(VDC): 2.8-5.2

Projection Type : Dot/spot/point

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W): 1

Cooling Method : Passive air

Cable length(cm): <8

Standard Warranty (months): 6

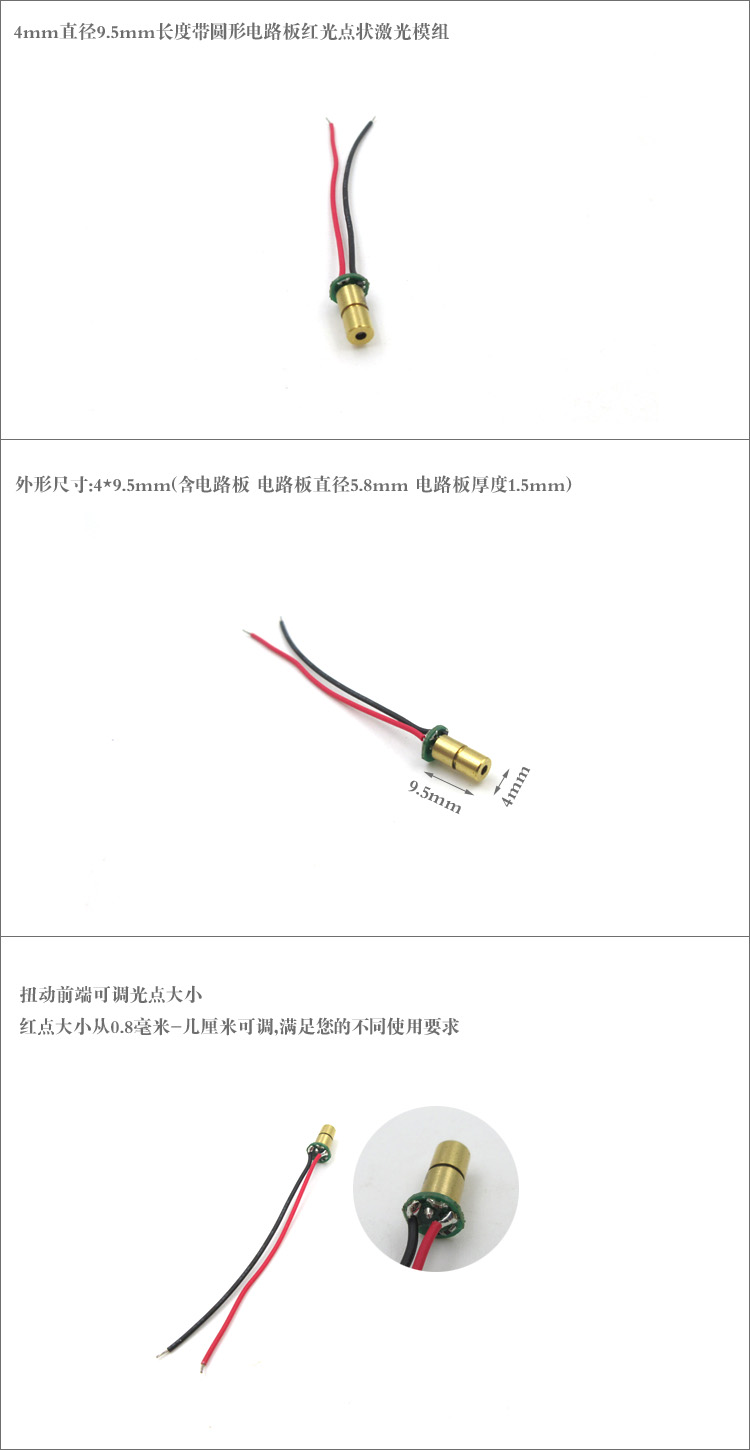

Laser Head Dimensions include PCB (mm): 9.5(L) x 4(D)

------------------

Package Includes:

Laser module -1 piece

FU635AD04-YC4 4*9.5mm include PCB 635nm 0.4mW red dot laser module include PCB Class 1 spot laser diode module light pointer, Japan standard
