Product Title：FU685AD60-GD16 675~695nm 685nm 60mW red dot/spot/pointer laser diode module with adjustable focus plastics lens
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Model: FU685AD60-GD16
Dot specification：
Wavelength(nM): 685±10
Output Power (mW): <60
Operating Voltage(VDC): 3
Projection Type : Dot/Point
Beam focus: Adjustable
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air+Heat sink
Cable length(cm): <100
Standard Warranty (months): 6
Laser Head Dimensions (mm): 70(L) x 16(D)
------------------

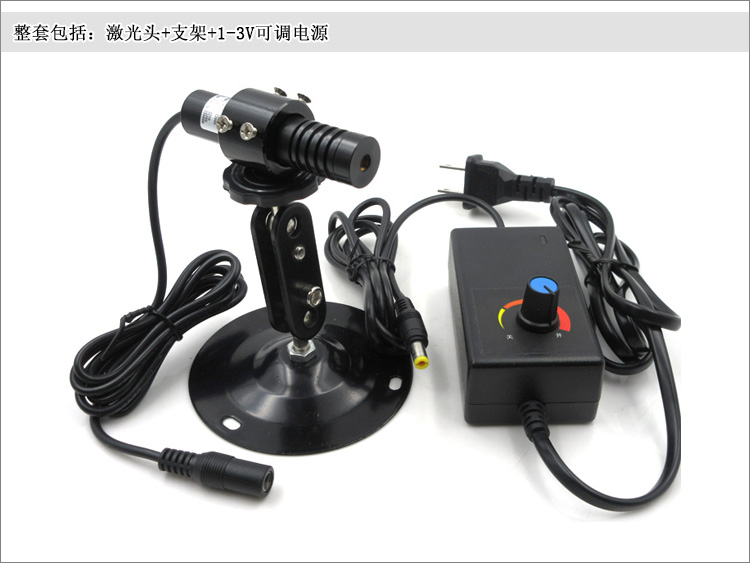

Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
FU685AD60-GD16 675~695nm 685nm 60mW red dot/spot/pointer laser diode module with adjustable focus plastics lens
FU685AD60-GD16, 675~695nm,685nm,60mW,red dot laser,red spot laser,red pointer laser,red laser diode module,red laser module, red laser diode
