FU-NS-LS650 Optical Light Source
Features

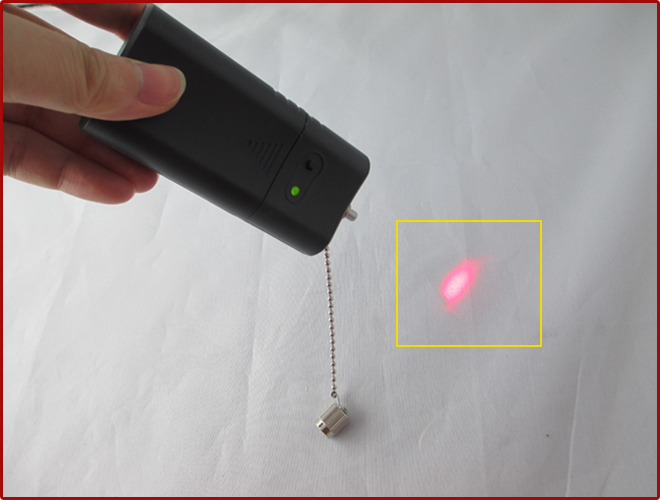

1.Detects breaks,micro-bends even through jacketed fibers
2.End-to-end visual fiber identification lacates faults up to 2Km above along the fiber
3.Mechanical fusion splice optimization
4.Compact size and light weight
5.Suitable for field testing
|
Detailed Product Description and Product parameters: |
|
|
Product size |
92*45*28mm |
|
Laser Wavelength |
650nm |
|
Output Power |
1mW |
|
Outside Material |
Metel |
|

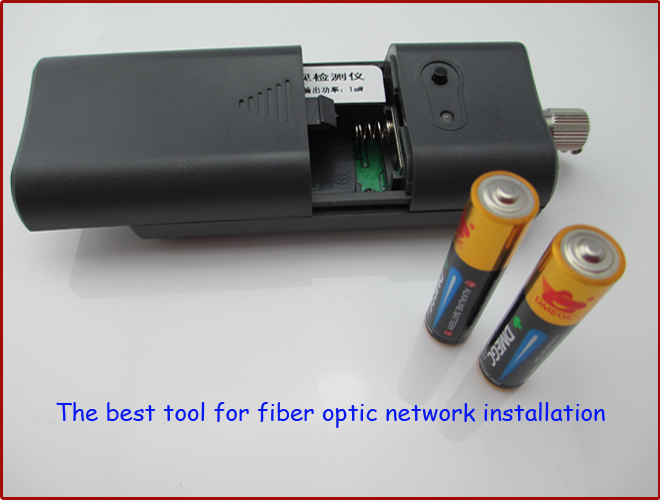

Battery |
AAA -2pcs |
|
Transmission distance |
Up to 2Km |
|
Packaging |
Anti Static Bag or Tray |
|
Working Temperature |
-10~60C |
|
Laser type |
visible laser, red color |
|
Connector |
all kind adapter |
|
Optical Connector |
CW,2Hz |
|
Specifications |
fixed focus, the expected lifetime is more than 8000 hours |
|
Main Application |

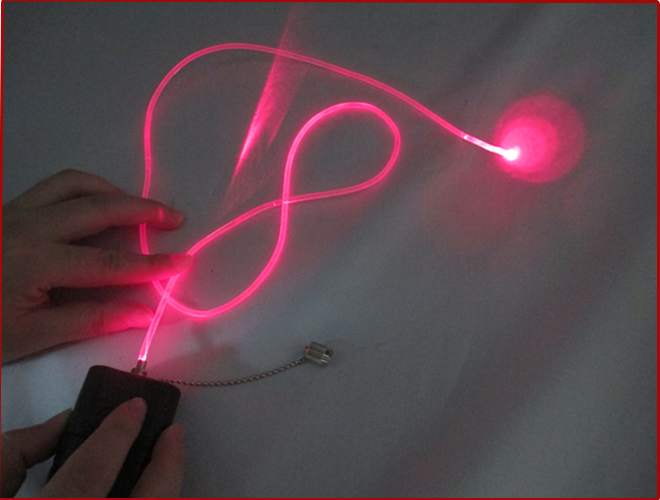

Identifying fiber fault location by visible light |
|
Continuous working hours |
More than 6 hours |
