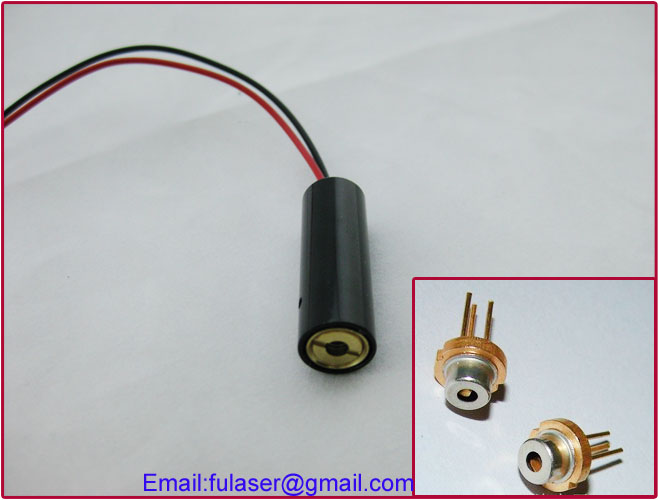

FU635AD5-BC10 Dot Laser Module
|
Dot specification： |
Wavelength(nM): 635±10
Output Power (mW): <5
Operating voltage(VDC): 3~5
IEC Safety: Class 2

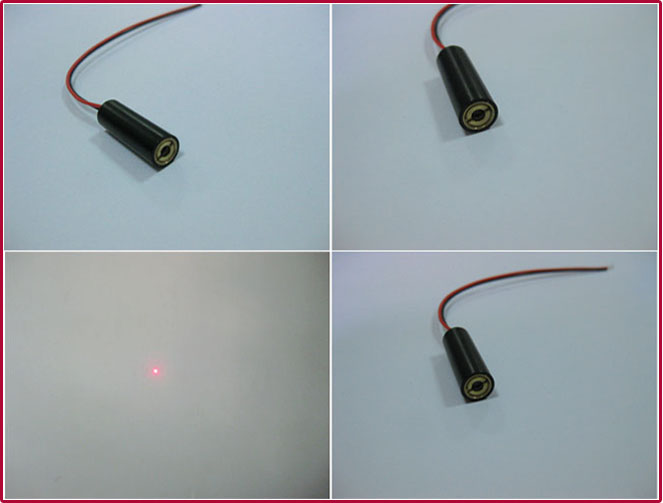

Projection Type : Dot

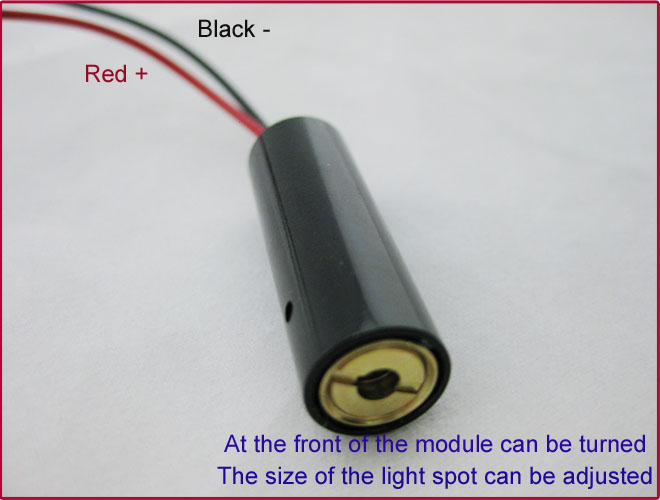

Beam focus: Adjust(Can make it big or small) or Fixed
Divergence (mrad, full angle): <1
Transverse Mode: Near TEM00
Operating Temperature Range: (°C) -10 to 40
Storage Temperature Range : (°C) -10 to 50
Total Power Consumption (W): 1
Cooling Method :Passive Air
Standard Warranty (months): 12
MTTF (operational hours) :5000

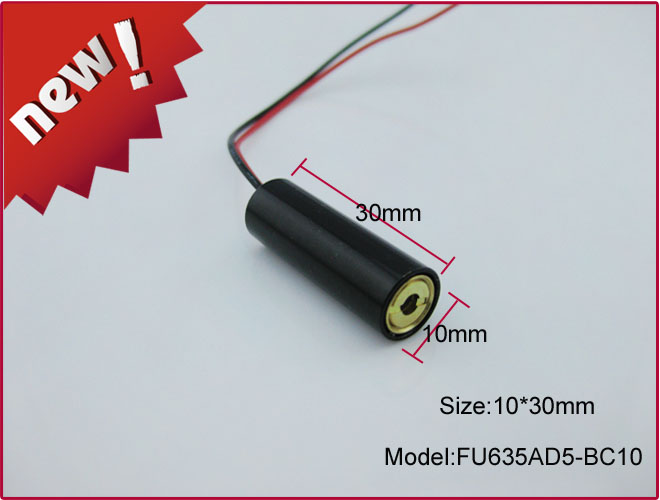

Laser Head Dimensions (mm) 30 (L) x 10 (D)
------------------
Package Includes:
Laser module -1 piece
Aluminum casing with tripod mount -1 piece
Power supply -1 piece
|
|
FU635AD5-BC10 Download |
