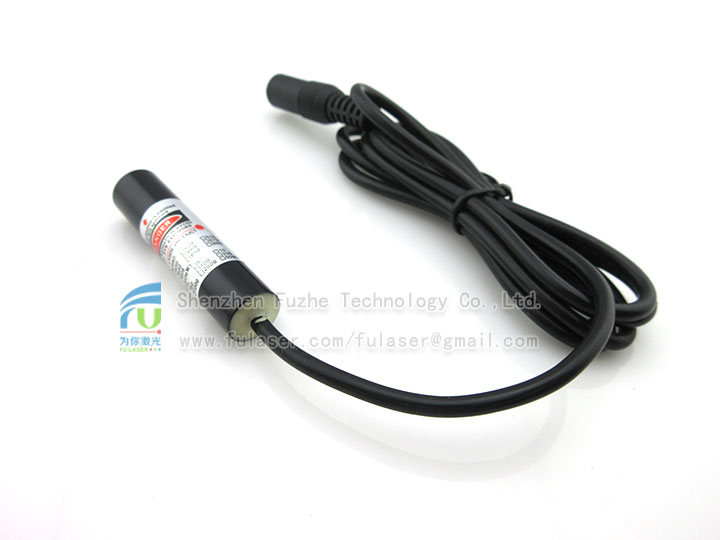

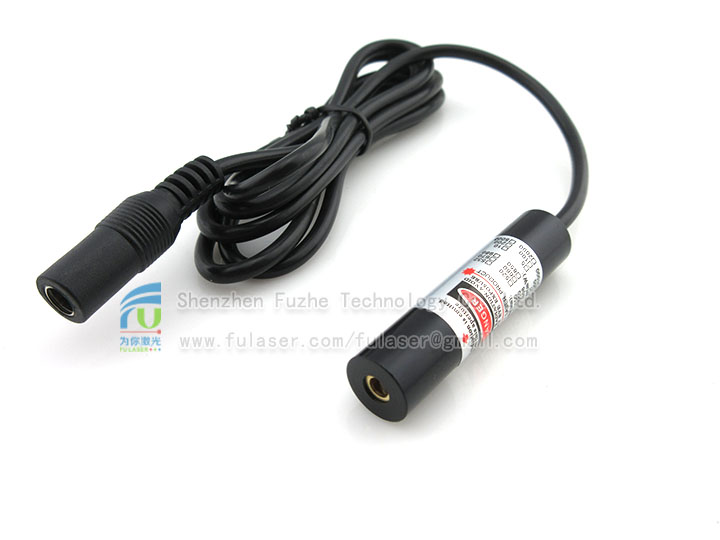

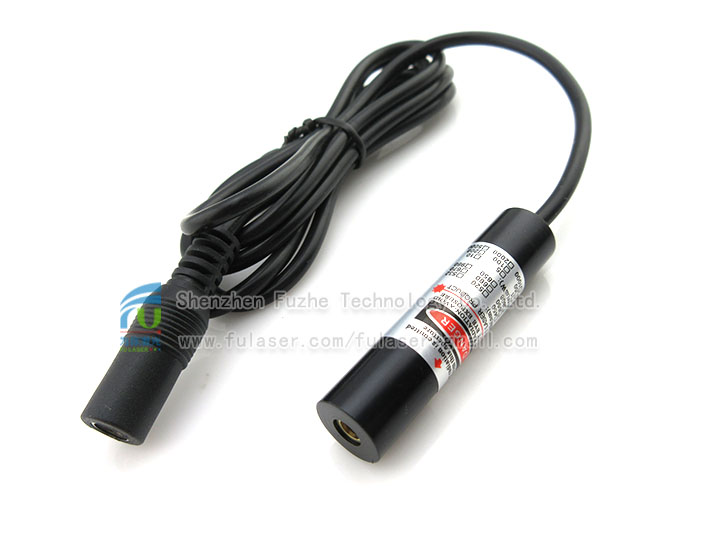

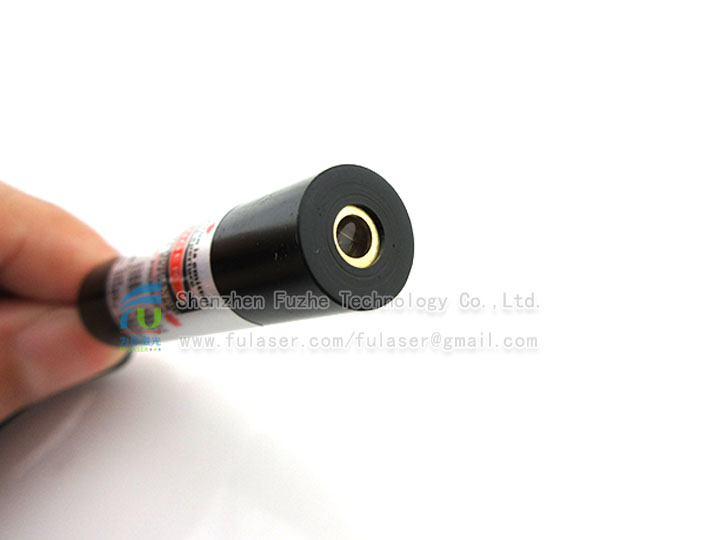

Product Title：FU635C5-JYBD12 635nm 5mW red cross hair line laser module fixed focus with no polarity

Brand: FU

Model:FU635C5-JYBD12

Line specification：

Wavelength(nM): 635±10

Output Power (mW): <5

Operaing Voltage(VDC): 3~5

Projection Type : Cross hair

Beam focus: Fixed

Projection Fan Angle(°, full angle) : 10~110

Divergence (mrad, full angle): <1

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air

Standard Warranty (months): 12

Laser Head Dimensions (mm): 50(L) x 12(D)

------------------

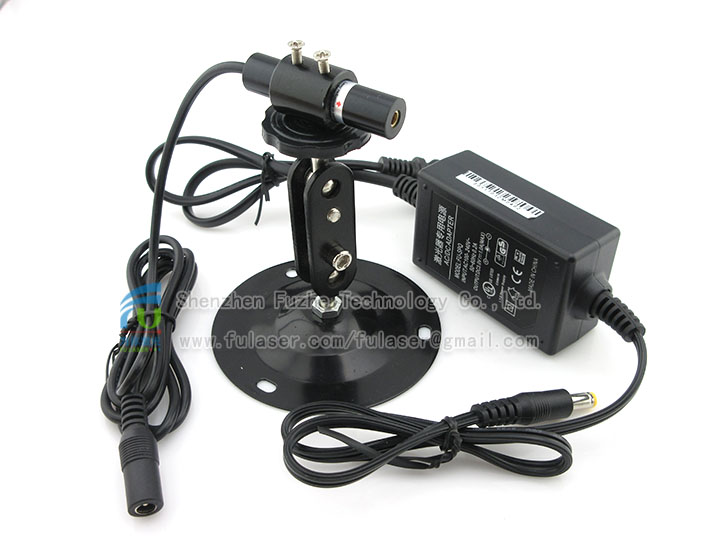

Package Includes:

Laser module -1 piece

Aluminum casing with tripod mount -1 piece

Power supply -1 piece

FU635C5-JYBD12 635nm 5mW red cross hair line laser module fixed focus with no polarity
