FU65010C5-BD1240 650nm 5mW 10 degree fan angle Red small cross line laser module
Cross hair line specification:
Wavelength(nM): 650±10
Operating Voltage(VDC): 3~5
Output Power (mW) : <5
IEC Safety: Class 2
Projection Type : Cross
Projection Fan Angle (°, full angle): 10
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) : 1
Cooling Method : Passive Air
Standard Warranty (months) : 12
MTTF (operational hours) : 5000
Laser Head Dimensions (mm): 40 (L) x 12 (D)
-------------

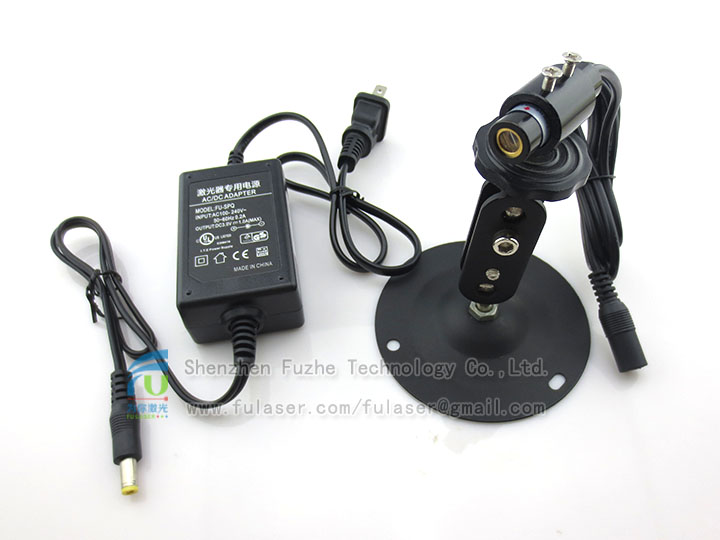

Package Includes:

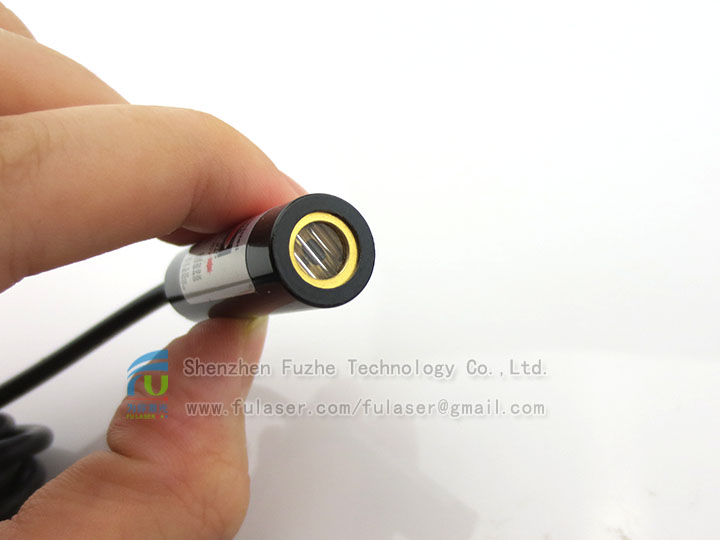

Laser module-1 piece
Aluminum casing with tripod mount-1 piece
Power supply-1 piece
