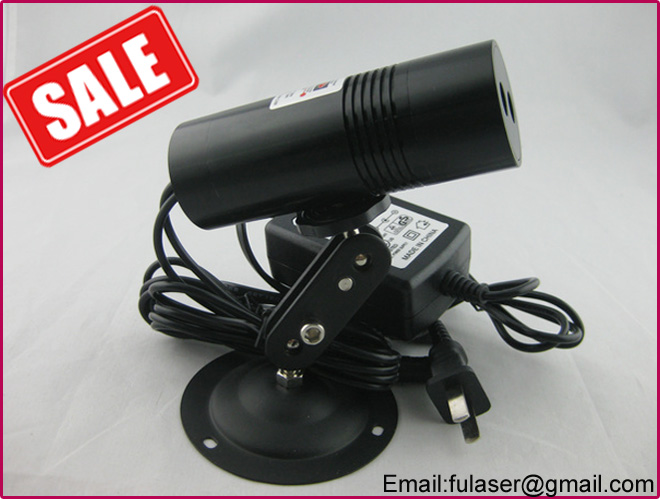

FU650LC200-BD40 High Power Cross Line Laser Module,can be line or cross line
Cross hair line specification:
Wavelength(nM): 650±10
Output Power (mW) : <200
IEC Safety: Class 2

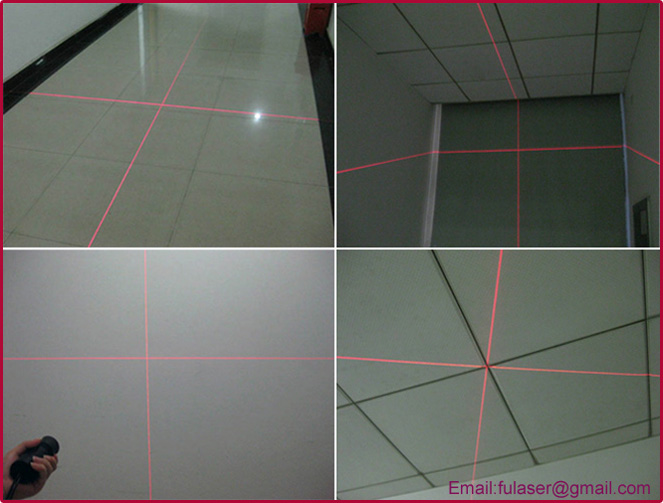

Projection Type : Cross (Cylindrical Lens CYC)
Projection Fan Angle (°, full angle): 110
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) : 1
Cooling Method : Passive Air
Standard Warranty (months) : 12
MTTF (operational hours) : 5000

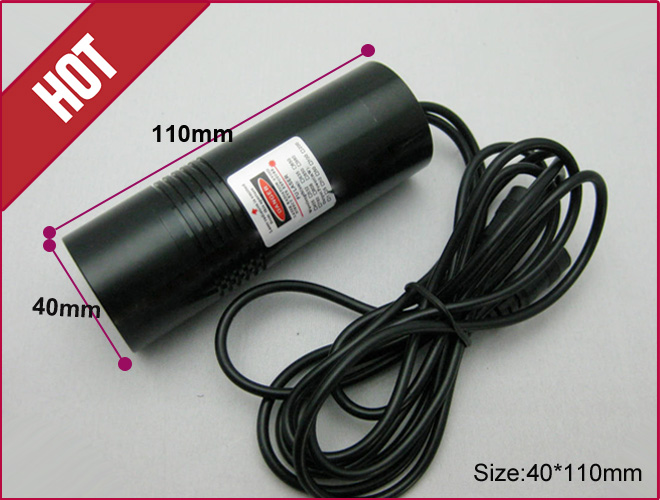

Laser Head Dimensions (mm): 110 (L) x 40 (D)
-------------

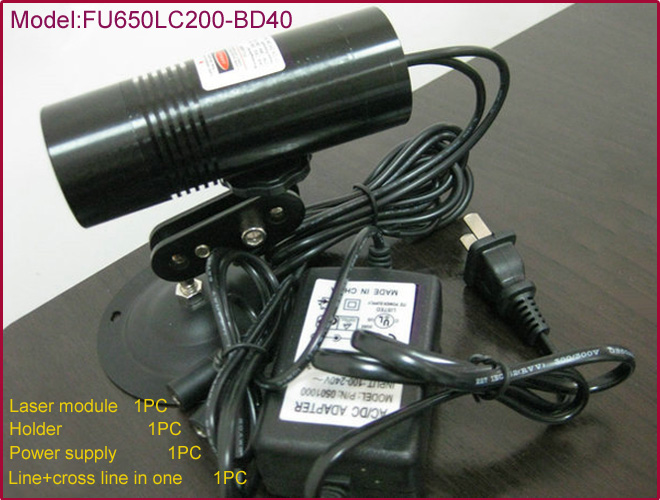

Package Includes:
Laser module-1 piece
Aluminum casing with tripod mount-1 piece
Power supply-1 piece
