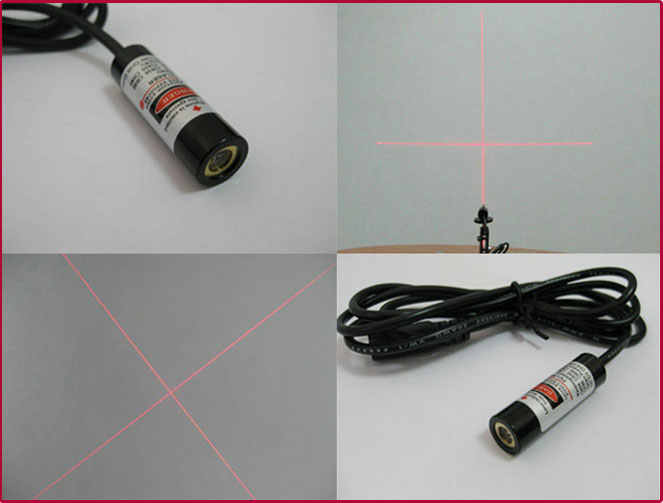

FU635C5-BD1240 Cross Line Red Laser Module

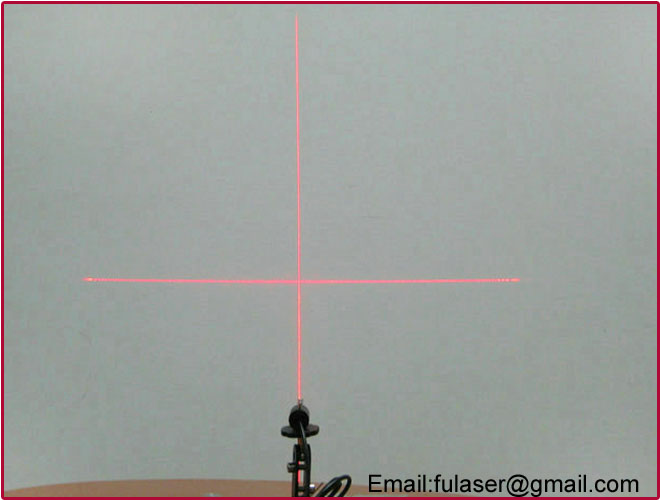

Cross hair line specification:
Wavelength(nM): 635±10
Output Power (mW) : <5
Operating voltage(V): 3-5
IEC Safety: Class 2
Projection Type : Cross
Beam focus: Fixed
Projection Fan Angle (°, full angle): 60
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) : 1
Cooling Method : Passive Air
Standard Warranty (months) : 12
MTTF (operational hours) : 5000
Laser Head Dimensions (mm): 40 (L) x 12 (D)
-------------
Package Includes:
Laser module-1 piece
Aluminum casing with tripod mount-1 piece
Power supply-1 piece
More laser products or service(OEM/ODM),please contact us.
FU-Lasers for you!
