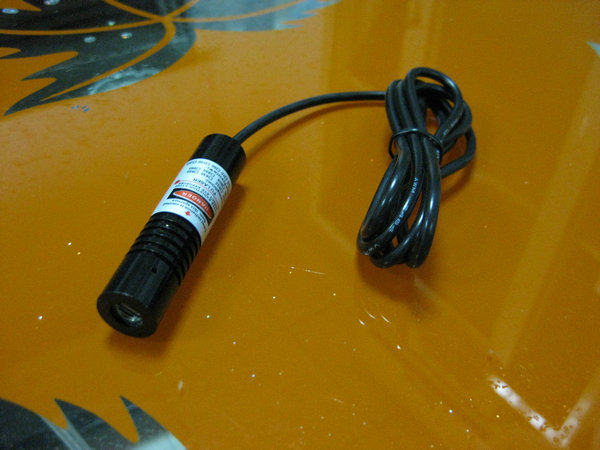

FU63510C5-BD16 635nm 5mW red small cross line laser module for sewing machine
Cross hair line specification:
Output Power (mW) : <5
IEC Safety: Class 2
Projection Type : Cross
Projection Fan Angle (°, full angle): 10
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) : 1
Cooling Method : Passive Air
Standard Warranty (months) : 12
MTTF (operational hours) : 5000
Laser Head Dimensions (mm): 70 (L) x 16 (D)
Cross hair line specification:
Output Power (mW) : >5
-------------
Package Includes:
Laser module-1 piece
Aluminum casing with tripod mount-1 piece
Power supply-1 piece
