Product Title：FU650AD100-XHJ1260(Dot) FU65015AL100-XHJ1260(Line) FU65015AC100-XHJ1260(Cross) 650NM 100mW red laser diode module 3-5VDC Embroidery machine laser light

FU650AD100-XHJ1260(Dot) FU65015AL100-XHJ1260(Line) FU65015AC100-XHJ1260(Cross) 650NM 100mW red laser diode module 3-5VDC Embroidery machine laser light

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650AD100-XHJ1260(DOT)
Projection Type : Dot/spot/point

Beam size: about 1.5*2mm dot at 100cm height



Different model but in same parameter:

Wavelength(nM): 650±10

Output Power (mW): <100

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

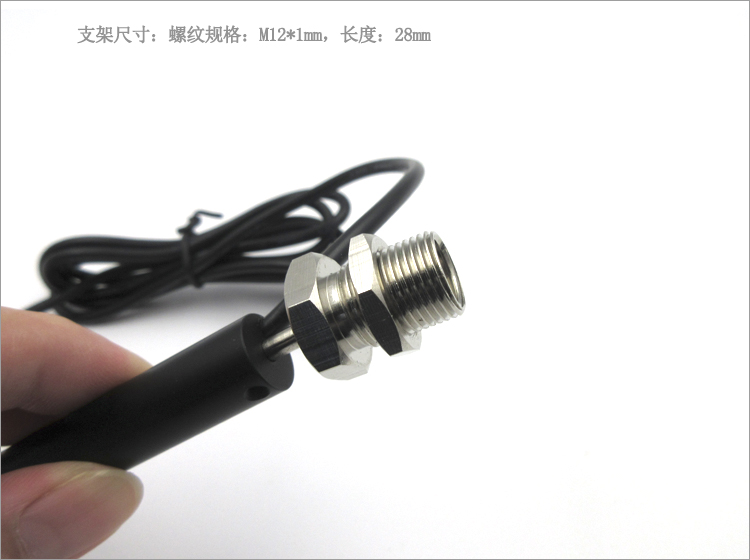

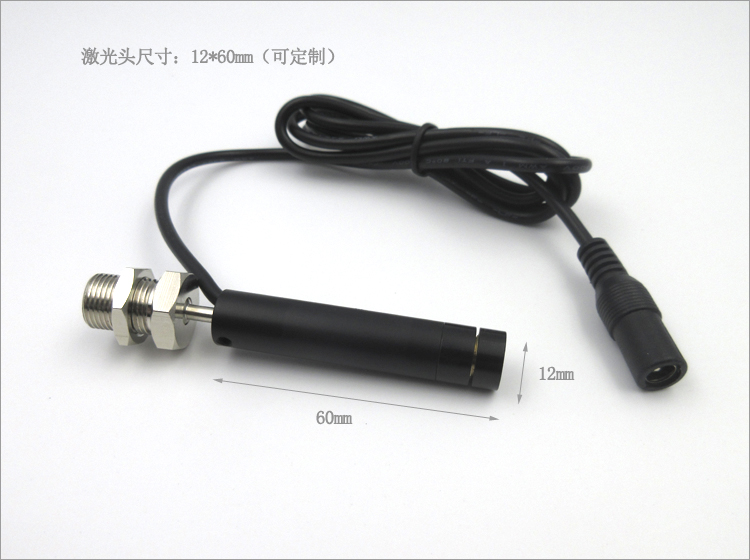

Laser Head Dimensions (mm): 60(L) x 12(D) not include screw

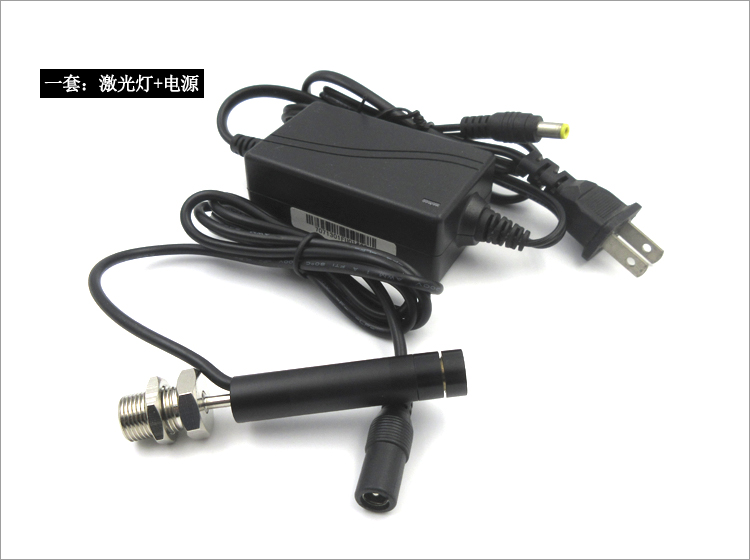

Package Includes:

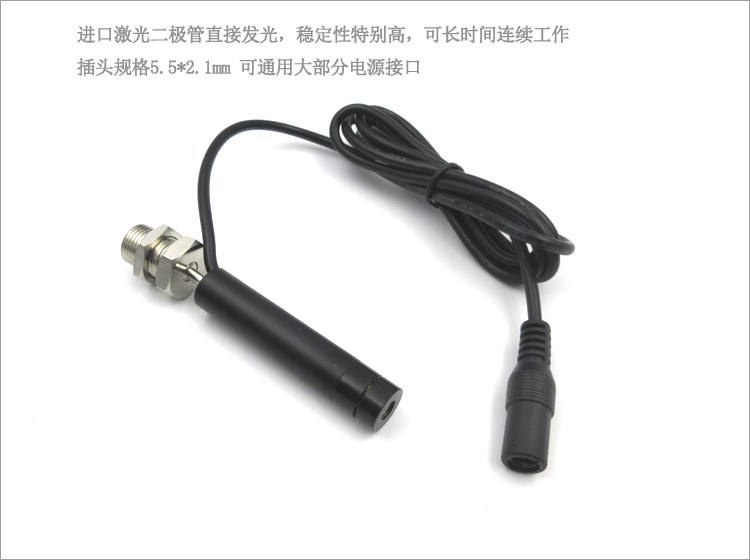

Laser module -1 piece

Power supply 3VDC- 1 piece







FU-Lasers for you!
