Product Title：FU650AD5-KTGD12(Dot) FU650AL5-KTGD12(Line) FU650AC5-KTGD12 650NM 0-5mW power adjustable red laser diode module 3-5VDC light with resistor

FU650AD5-KTGD12(Dot) FU650AL5-KTGD12(Line) FU650AC5-KTGD12 650NM 0-5mW power adjustable red laser diode module 3-5VDC light with resistor

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650AD5-KTGD12(DOT)
Projection Type : Dot/spot/point



Different model but in same parameter:

Wavelength(nM): 650±10

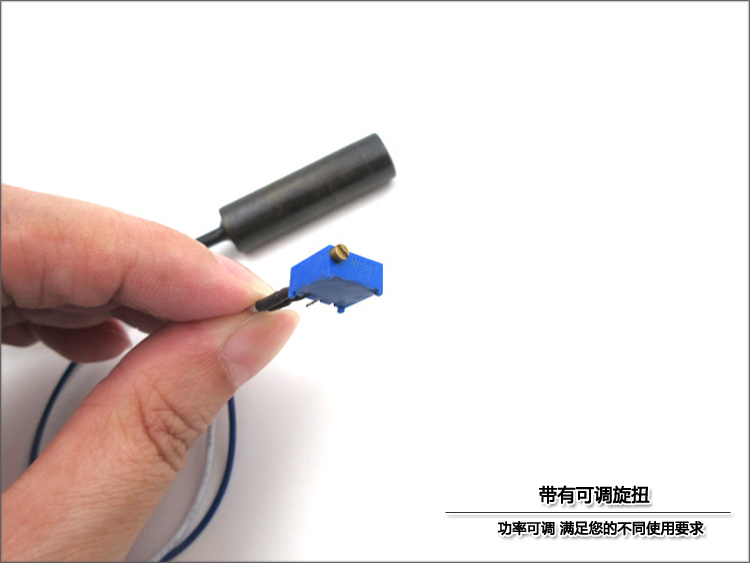

Output Power (mW): 0~5 power adjustable

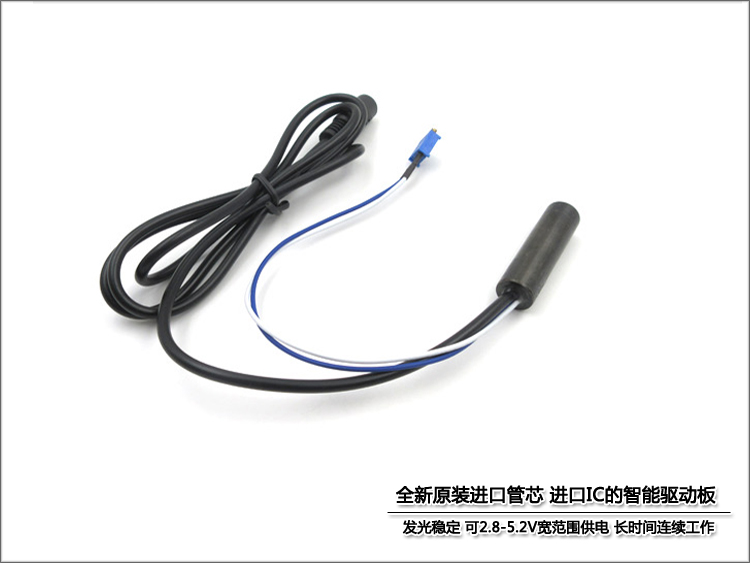

Operating Voltage(VDC): 3-5

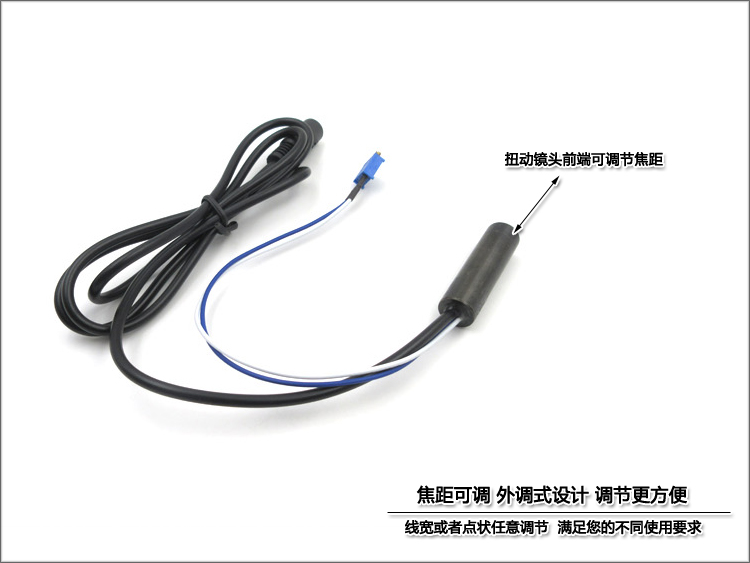

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

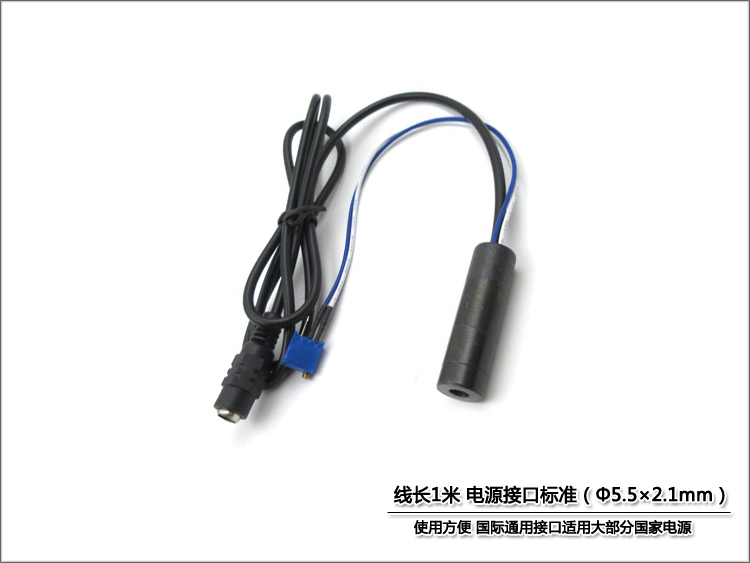

Cable length(cm): <100

Standard Warranty (months): 6

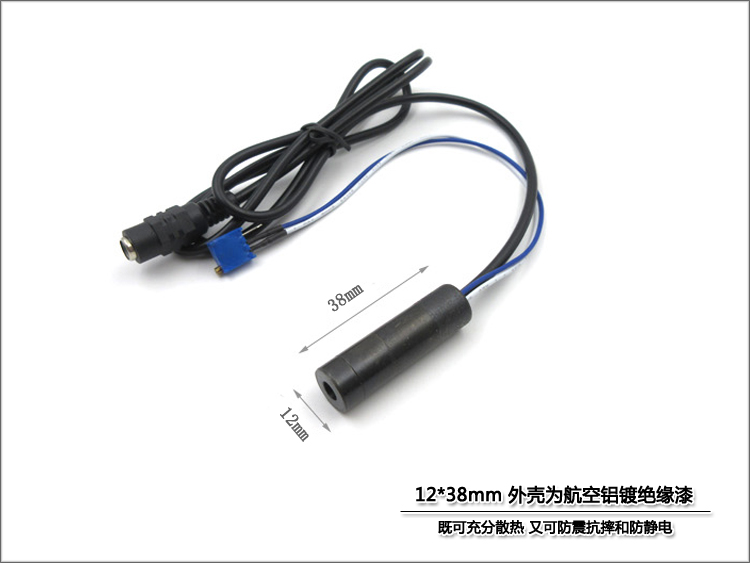

Laser Head Dimensions (mm): 38(L) x 12(D)

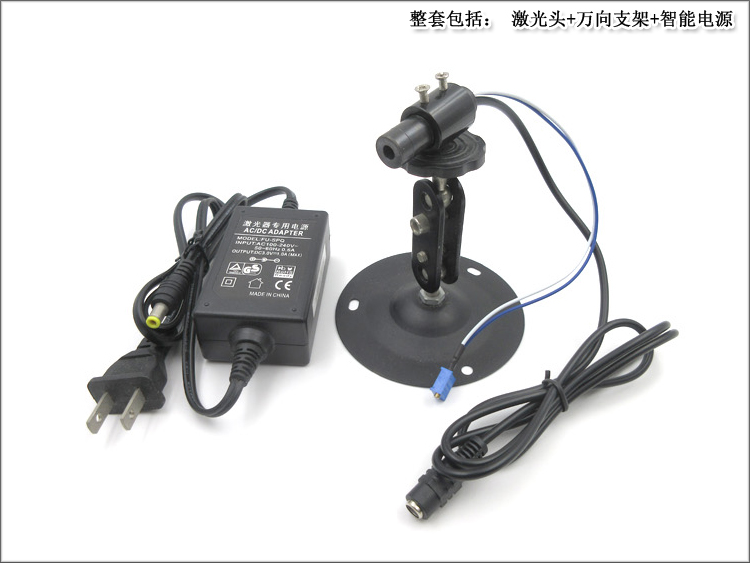

Package Includes:

Laser module -1 piece

Power supply 3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece

FU-Lasers for you!
