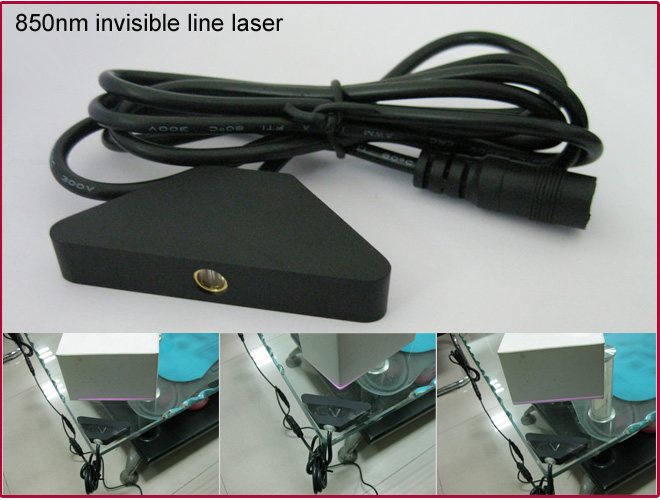

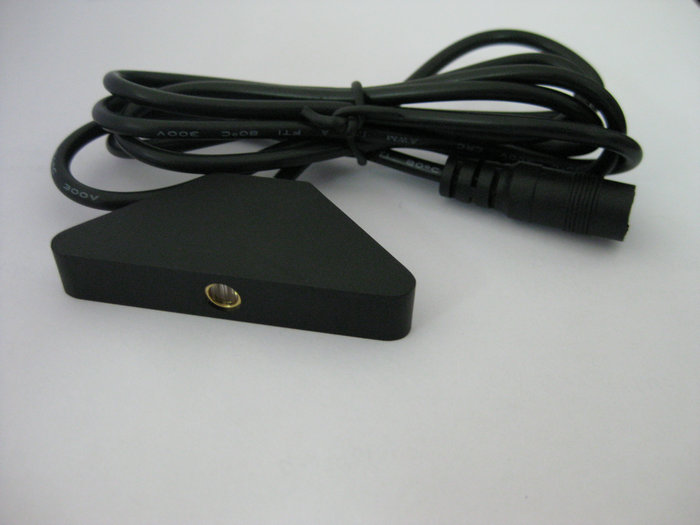

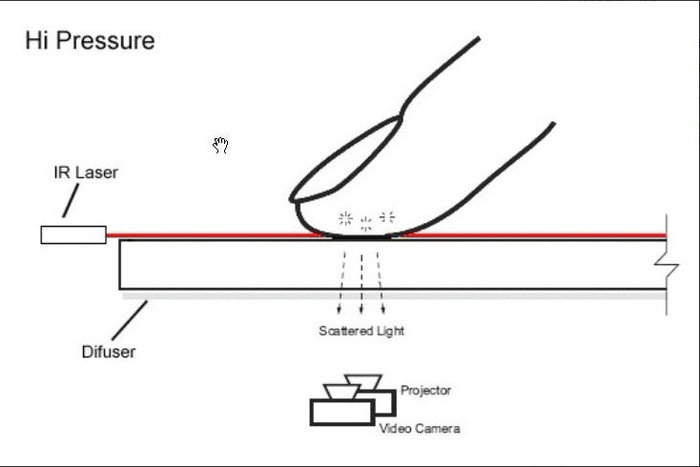

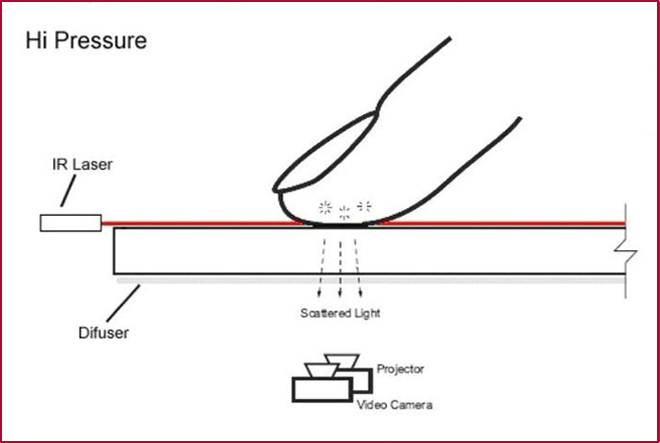

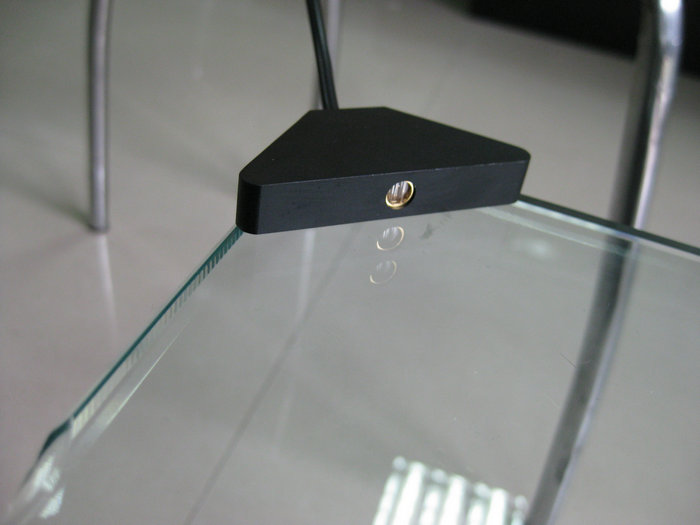

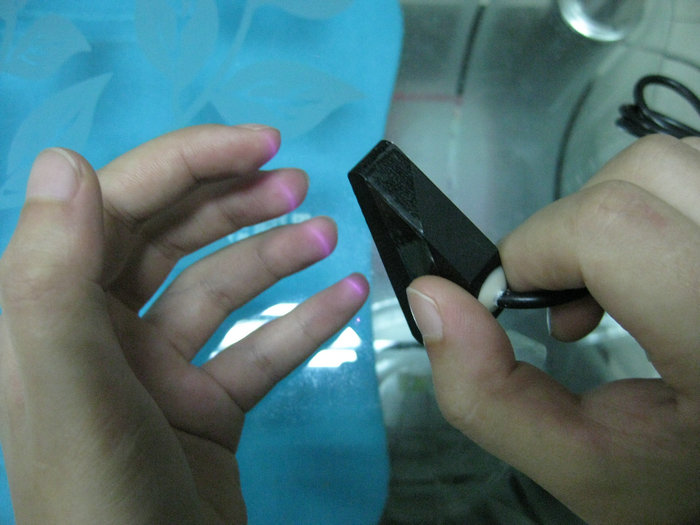

Product Title：FU85011L50-T60 IR Line Laser Diode Module for multitouch, 850nm laser, 850nm ir laser, 850nm line laser, 850nm laser line,ir laser line, infrared line laser
FU85011L50-T60 IR Line Laser Diode Module for multitouch, 850nm laser, 850nm ir laser, 850nm line laser, 850nm laser line,ir laser line, infrared line laser
Line specification：
Wavelength(nM): 850±10
Output Power (mW): <50
Operaing Voltage(VDC): 3~5
IEC Safety : Class 2
Projection Type : Line
Beam focus: Fixed
Projection Fan Angle(°, full angle) : 110
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) 1
Cooling Method : Passive Air
Standard Warranty (months): 12
MTTF (operational hours) : 5000

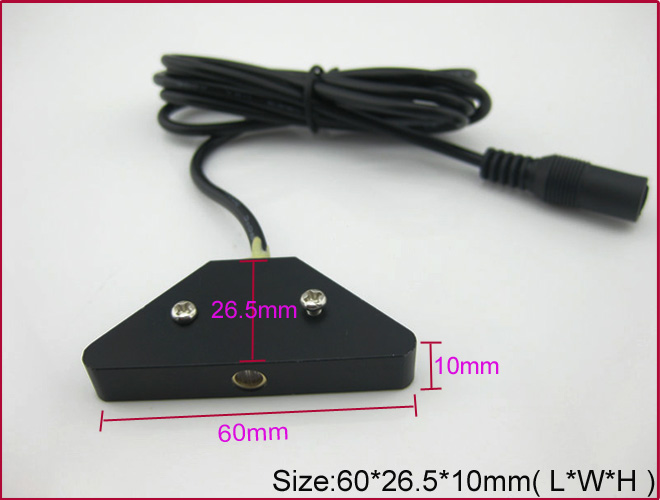

Laser Head Dimensions (mm) : 60*26.5*10
------------------

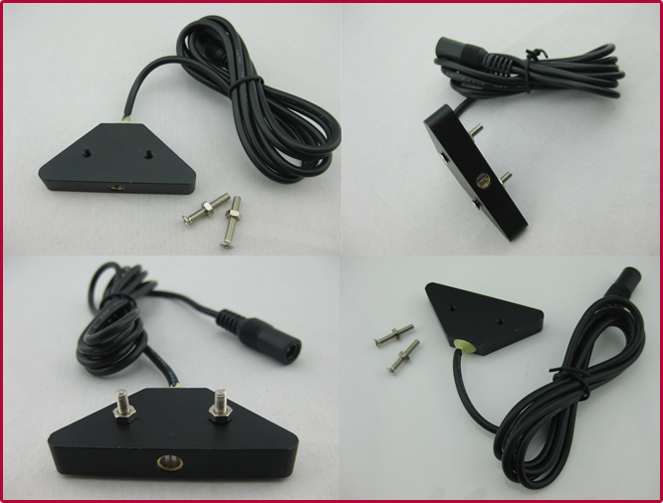

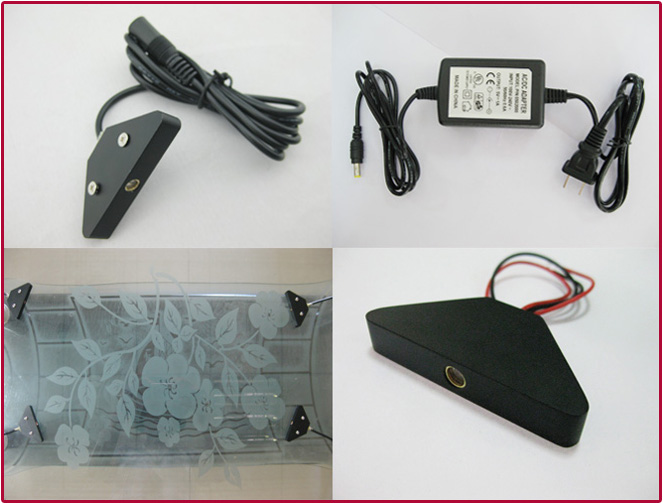

Package Includes:
Laser module -1 piece
-------------------
Buy laser accessories separately
Power supply
IR filter
