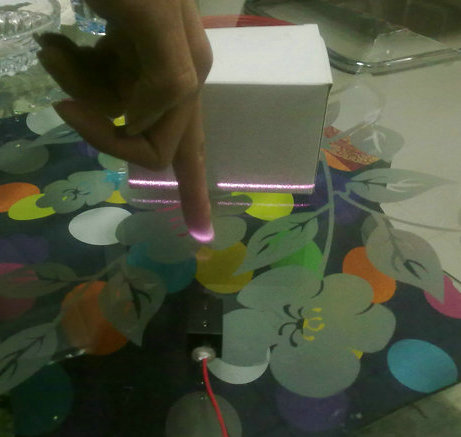

FU85011L40-BC10 850nm 40mW infrared line laser module for touch screen
Brand:FU(For You)
Model: FU85011L40-BC10
Cross hair line specification:
Wavelength(nM): 850
Output Power (mW) : <40
IEC Safety: Class 2
Projection Type : Line
Projection Fan Angle (°, full angle): 90
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to 40
Storage Temperature Range (°C): -10 to 50
Total Power Consumption (W) : 1
Cooling Method : Passive Air
Standard Warranty (months) : 6
MTTF (operational hours) : 5000
Laser Head Dimensions (mm): 30 (L) x 10 (D)
-------------
Package Includes:

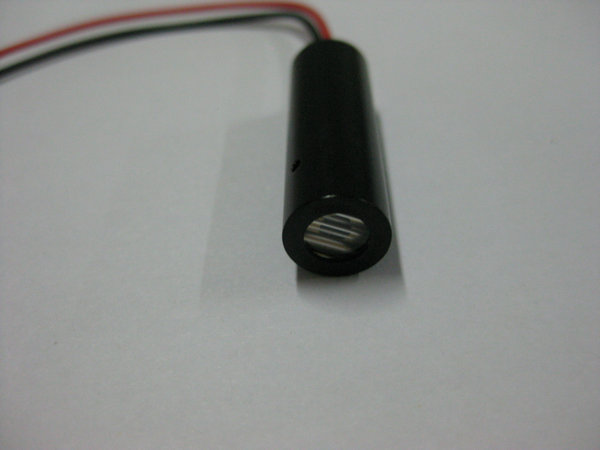

Laser module-1 piece

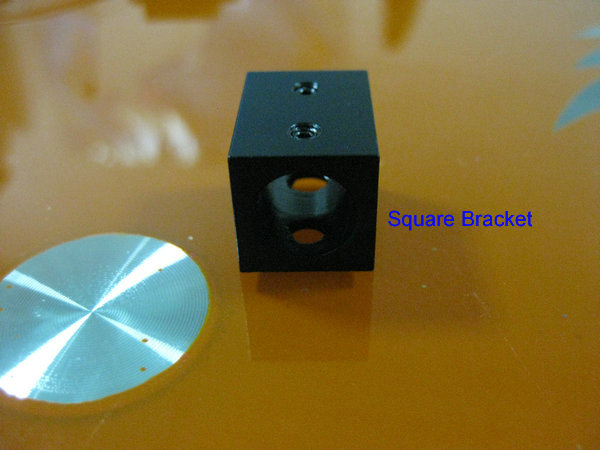

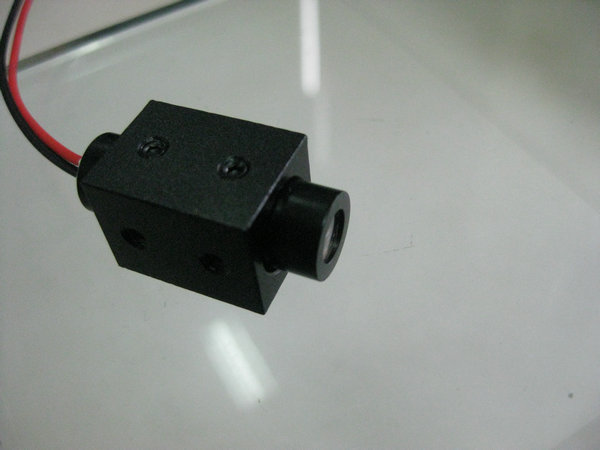

Aluminum casing with tripod mount-1 piece
-------------------------
Buy laser accessories separately
Power supply

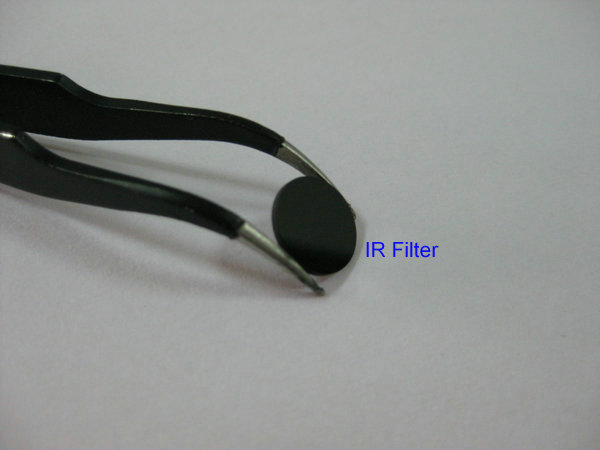

IR filter
Some of Accessories:
