Product Title：FU905D50-XYD1250 905nm 895-915nm <50mW infrared IR point dot spot laser module pointer fixed focus, small fan angle <0.5mrad
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Model: FU905D50-XYD1250
Dot specification：
Wavelength(nM): 905±10
Output Power (mW): <50
Operating Voltage(VDC): 3-5
Projection Type : Dot/Point
Beam focus: Dot shape fixed
Divergence (mrad, full angle): <0.5
Dot diameter: 2.5mm at 10meter, 10mm at 100meter(Middle of dot)
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air+Heat sink
Standard Warranty (months): 6

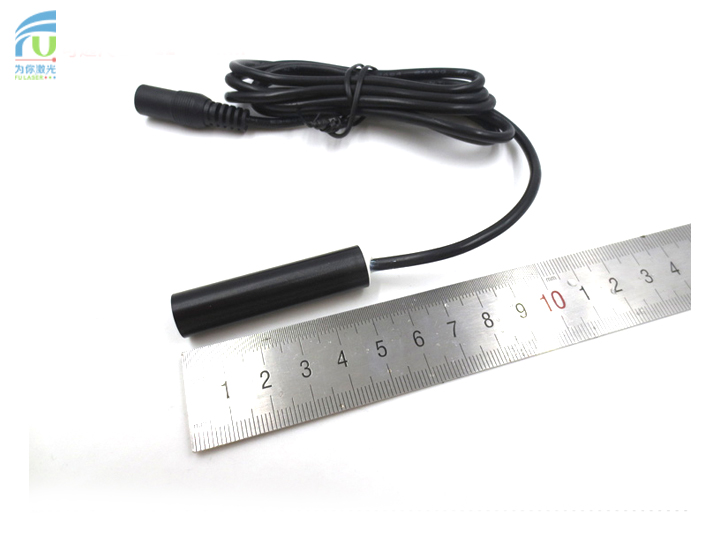

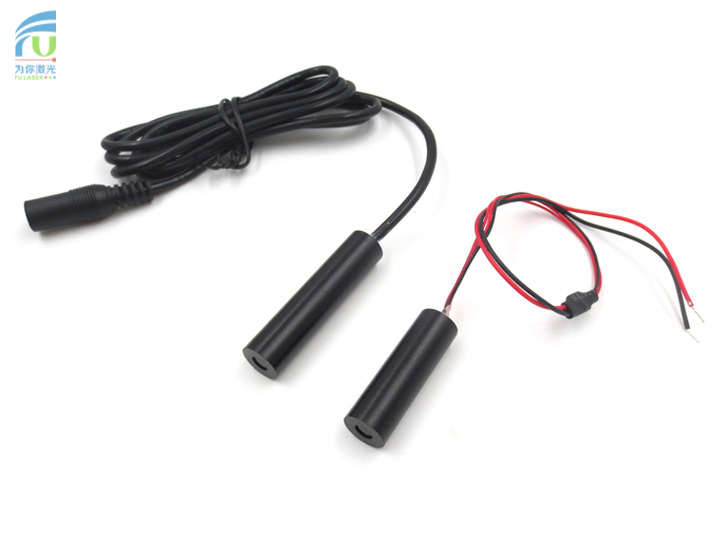

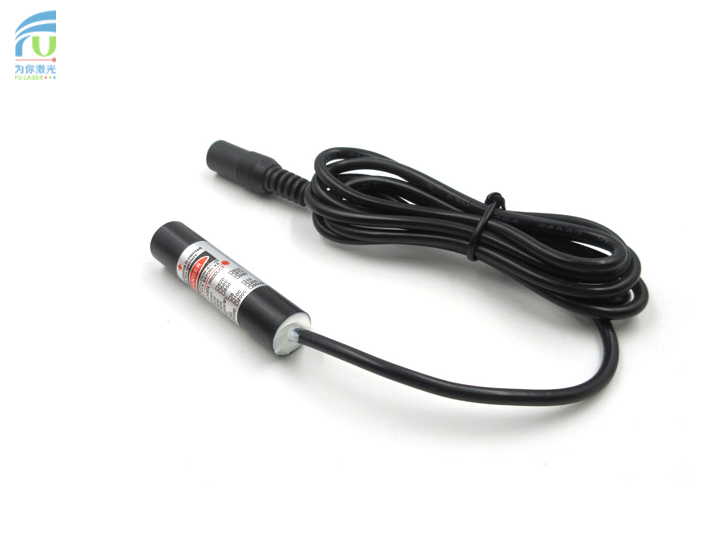

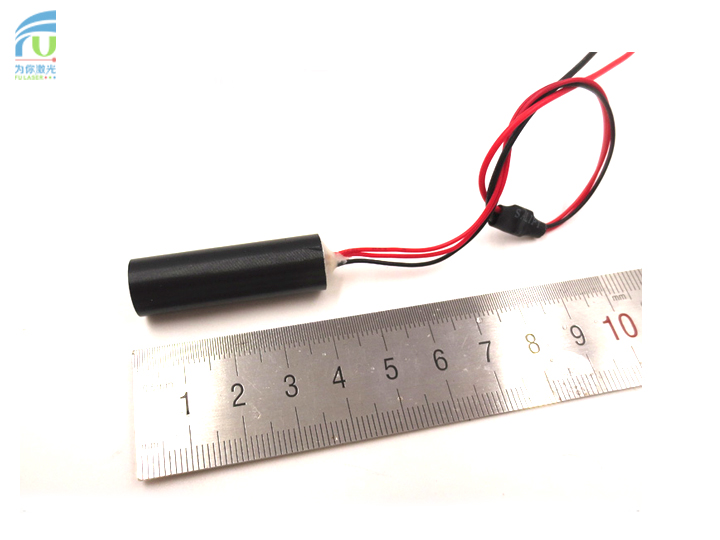

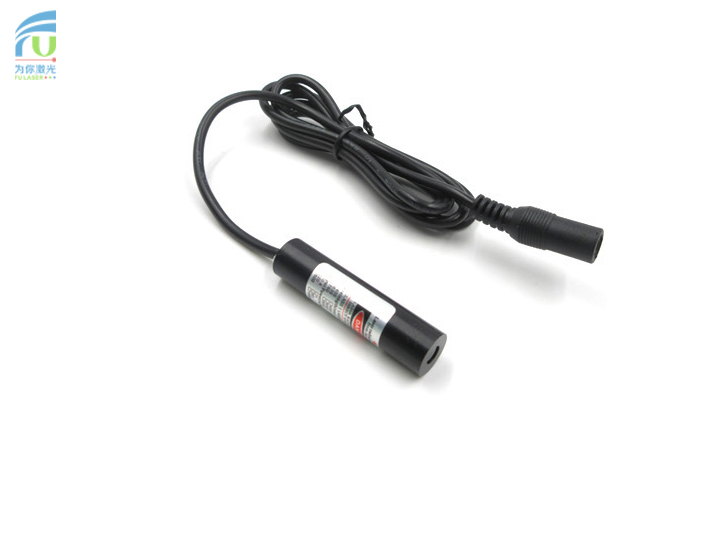

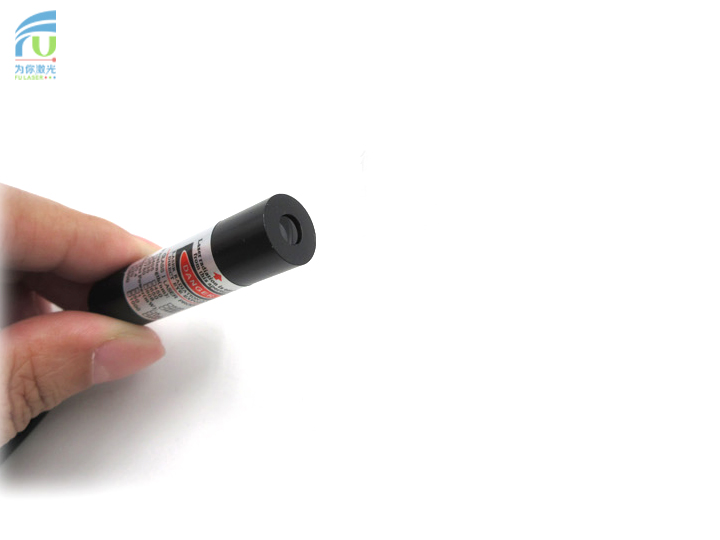

Laser Head Dimensions (mm): 50(L)*12(D)---PCB inside, 39(L)*12(D)---PCB outside
------------------

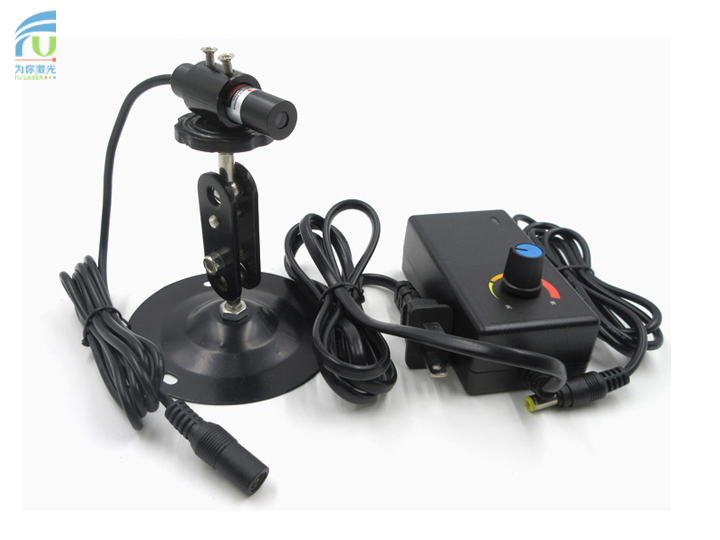

Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
FU905D50-XYD1250 905nm 895-915nm <50mW infrared IR point dot spot laser module pointer fixed focus, small fan angle <0.5mrad
FU905D50-XYD1250,895-915nm,905nm laser,ir laser,ir dot laser, dot laser, point laser, infrared point laser, pointer laser, point laser module, diode laser, diode module laser, laser pointer, laser diode module, laser pointer,infrared laser pointer
