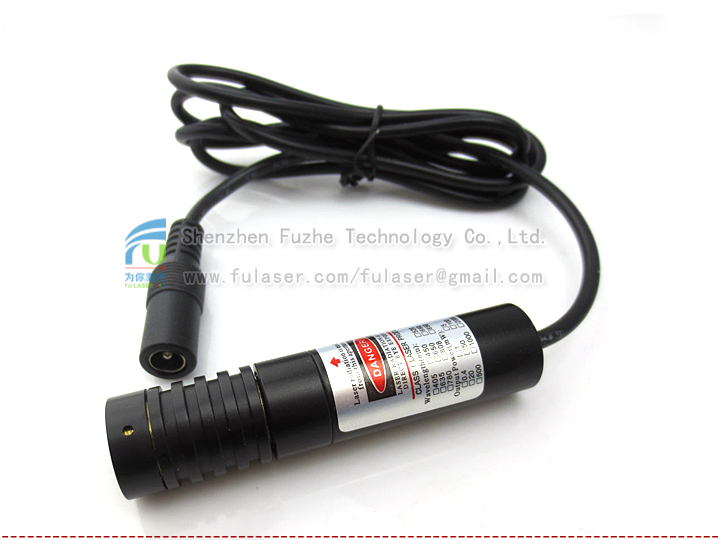

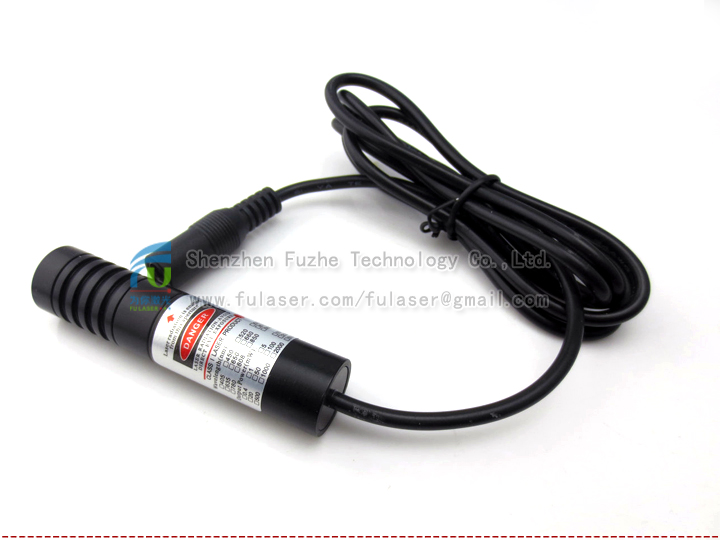

Product Title：FU880AD04-GD16 Adjustable focus 870nm-890nm 880nm 0.4mW IR laser diode module spot point beam size dimension L70mm*D16mm

Model: FU880AD04-GD16

Dot specification:

Wavelength(nM): 880±10

Output Power (mW): <0.4

Operating voltage(VDC): 2.8~3.2

IEC Safety: Class 2

Projection Type : Dot

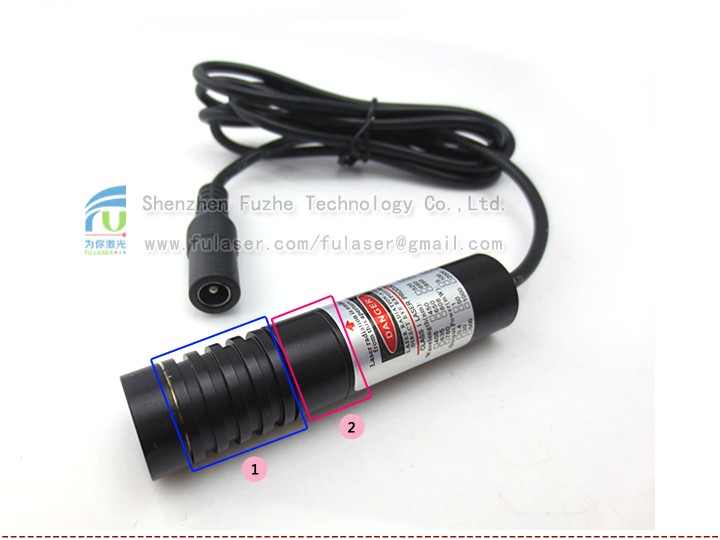

Beam focus: Adjust(Can make it big or small) or Fixed

Divergence (mrad, full angle): <1

Transverse Mode: Near TEM00

Operating Temperature Range: (°C) -10 to 40

Storage Temperature Range : (°C) -10 to 50

Total Power Consumption (W): 1

Cooling Method :Passive air

Standard Warranty (months): 12

MTTF (operational hours) :5000

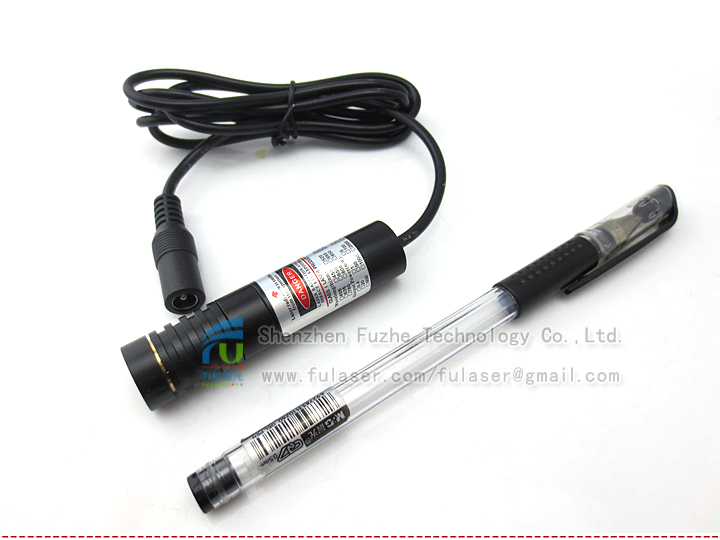

Laser Head Dimensions (mm) 70 (L) x 16 (D)

------------------

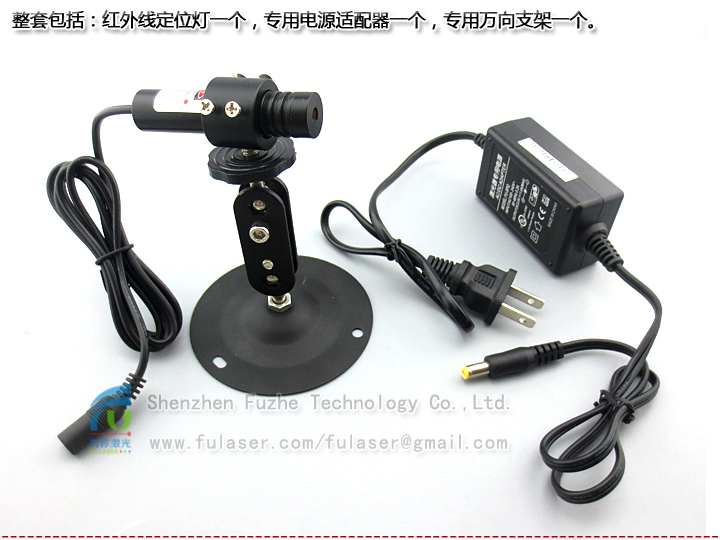

Package Includes:

Laser module -1 piece

Power supply 220VAC~3VDC-1 piece

Tripod-1 piece
