Product Title：1064nm 1000mW infrared semiconductor laser module(dot / line / cross, 9~24V, φ22*110mm, PCB sepeately)
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Dot Model: FU1064AD1000-GD22(dot)
Projection Type : Dot/Point
---------------------------------------------------
Line Model: FU1064AL1000-GD22(line)
Projection Type : Line
Projection Fan angle (°, full angle): <110
---------------------------------------------------
Cross hair Line Model: FU1064AC1000-GD22(crosshair)
Projection Type : Cross hair Line
Projection Fan angle (°, full angle): <110
---------------------------------------------------
Different model but in same parameter:
Wavelength(nM): 1064±10
Output Power (mW): <1000
Operating Voltage(VDC): 9-25

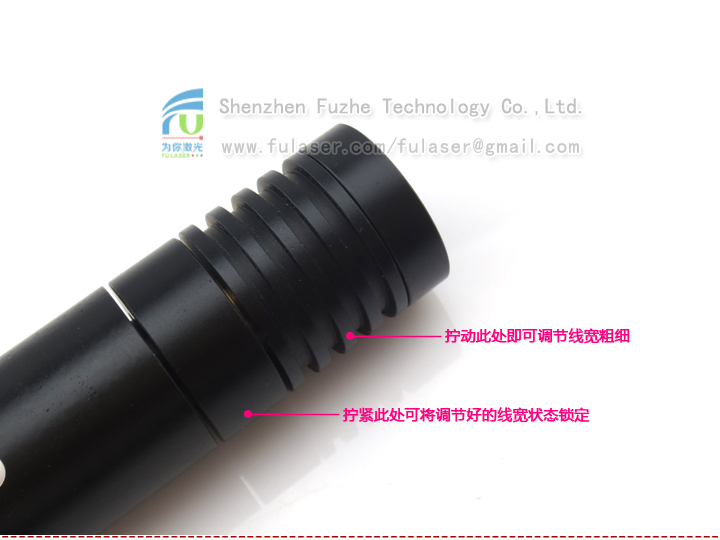

Beam focus: Adjustable
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Cooling Method : Passive air+Heat sink
Cable length(cm): <100
Standard Warranty (months): 6

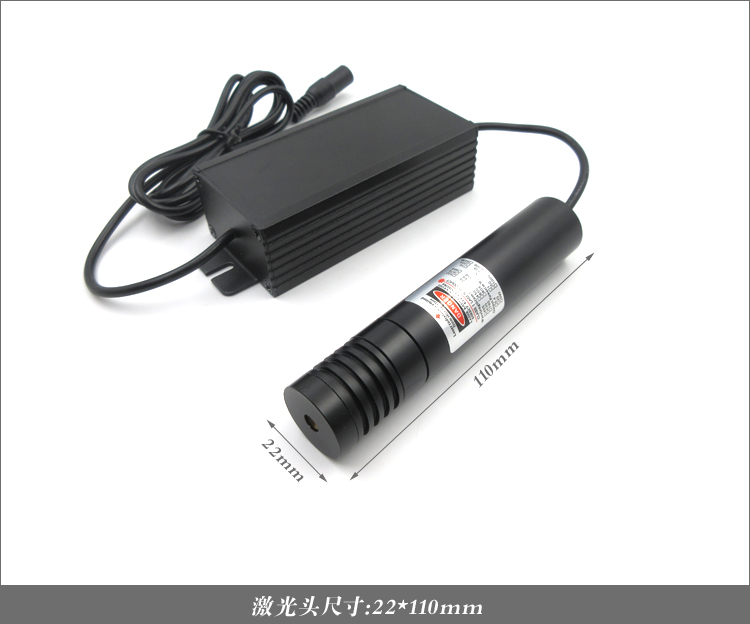

Laser Head Dimensions (mm): 110(L) x 22(D)
---------------------------------------------------------------

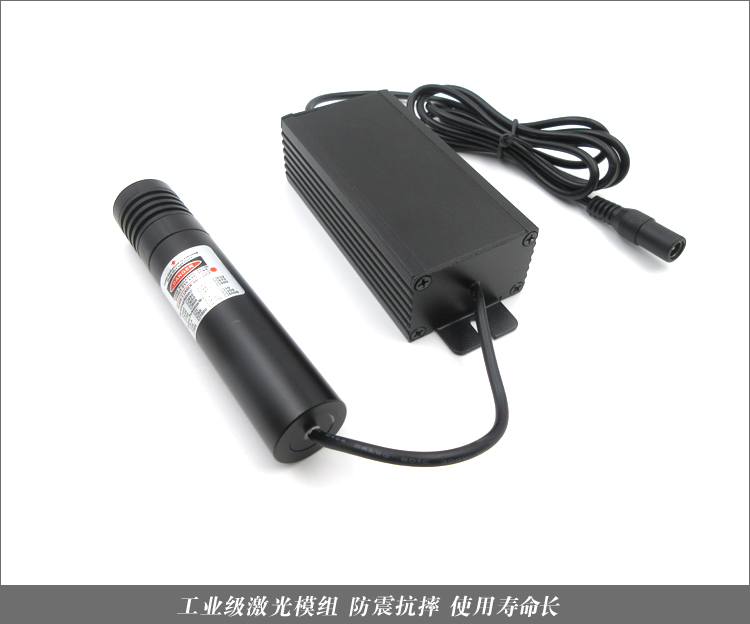

Package Includes:
Laser module -1 piece
Power supply- 1 piece
