Product Title：FU790AD5-GD16(Dot) FU790AL5-GD16(Line) FU790AC5-GD16(Cross) 3-5VDC 780-800NM 790nm 5mW infrared laser diode module light lamp

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU790AD5-GD16(DOT)
Projection Type : Dot/spot/point

----------------------------------------------------

Model: FU790AL5-GD16(LINE)

Projection Type : Line

Projection Fan angle (°, full angle): <110

----------------------------------------------------

Model: FU790AC5-GD16(CROSS)

Projection Type : Cross hair Line

Projection Fan angle (°, full angle): <110

---------------------------------------------------

Different model but in same parameter:

Wavelength(nM): 790±10

Output Power (mW): <5

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

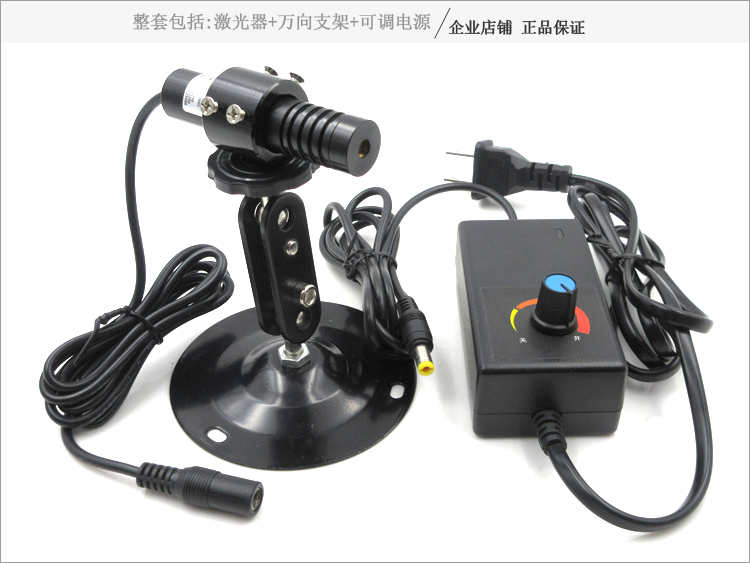

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Power supply -1 piece
