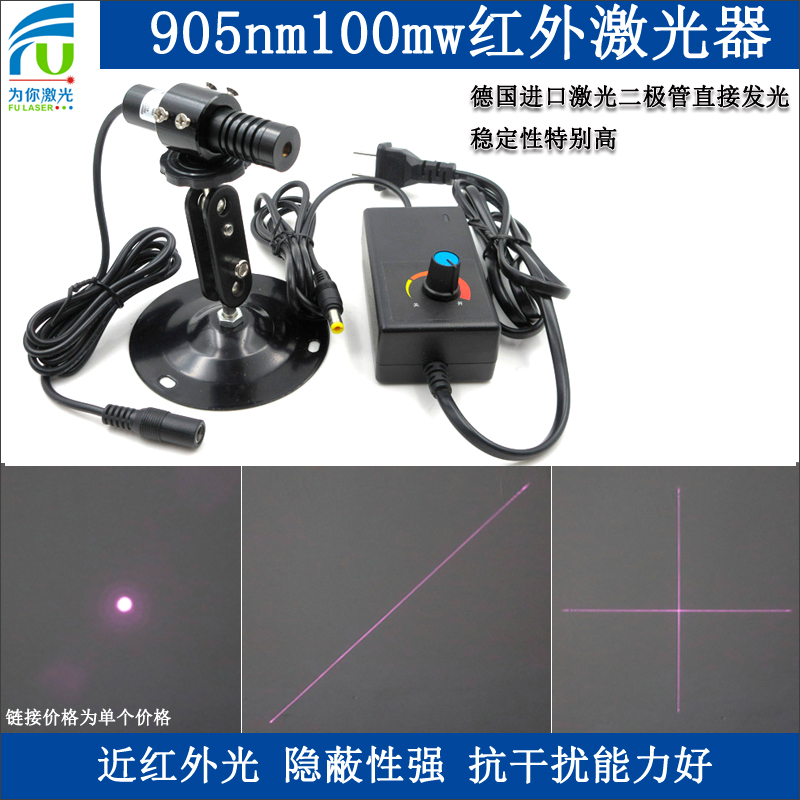

Product Title：FU905AX100-GD16 FU905AD100-GD16(DOT) FU905AL100-GD16(LINE) FU905AC100-GD16(CROSS) adjustable focus 895nm-915nm 905nm 100mW IR spot point laser diode module light, IR line, IR cross hair line lazer lamp 2.8-5.2VDC

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU905AD100-GD16(DOT)
Projection Type : Dot/spot/point

----------------------------------------------------

Model: FU905AL100-GD16(LINE)

Projection Type : Line

Projection Fan angle (°, full angle): <110

----------------------------------------------------

Model: FU905AC100-GD16(CROSS)

Projection Type : Cross hair Line

Projection Fan angle (°, full angle): <110

---------------------------------------------------

Different model but in same parameter:

Wavelength(nM): 905±10

Output Power (mW): <100

Operating Voltage(VDC): 2.8-5.2

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air

Cable length(cm): <100

Standard Warranty (months): 12

Laser Head Dimensions (mm): 70(L) x 16(D)

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece

------------------------------------------------------------------
