FU850AX750-GD16 FU850AD750-GD16(DOT) FU850AL750-GD16(LINE) FU850AC750-GD16(CROSS) adjustable focus 840nm-860nm 850nm 750mW IR spot point laser diode module light, IR line, IR cross hair line lazer lamp 5-24VDC-Infrared laser(IR)-深圳市富喆科技有限公司-官方网站-Shenzhen Fuzhe Technology Co., Ltd.

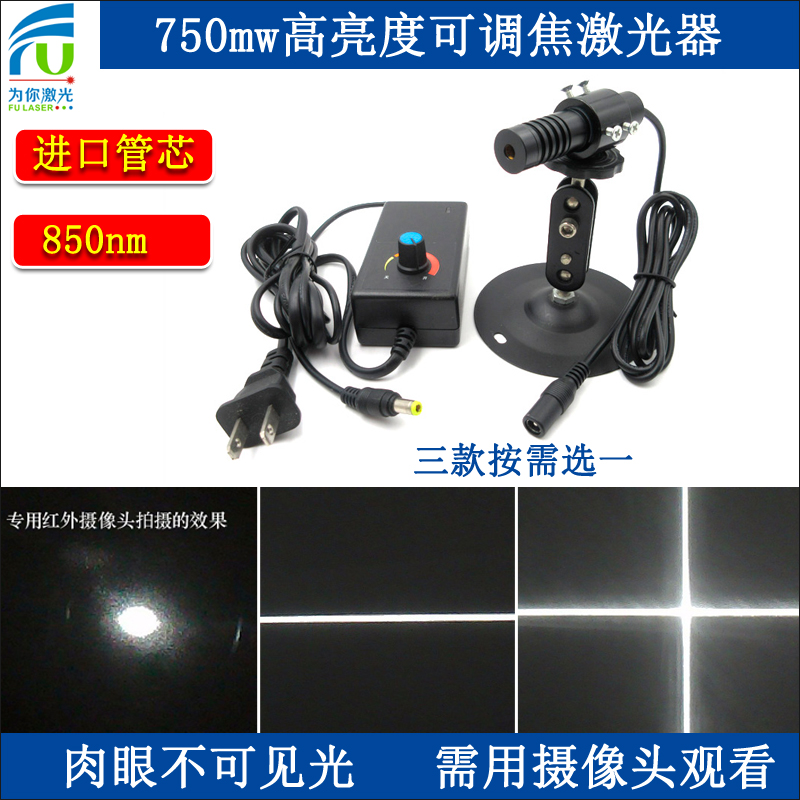

Product Title：FU850AX750-GD16 FU850AD750-GD16(DOT) FU850AL750-GD16(LINE) FU850AC750-GD16(CROSS) adjustable focus 840nm-860nm 850nm 750mW IR spot point laser diode module light, IR line, IR cross hair line lazer lamp 5-24VDC

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU850AD750-GD16(DOT)
Projection Type : Dot/spot/point

----------------------------------------------------

Model: FU850AL750-GD16(LINE)

Projection Type : Line

Projection Fan angle (°, full angle): <110

----------------------------------------------------

Model: FU850AC750-GD16(CROSS)

Projection Type : Cross hair Line

Projection Fan angle (°, full angle): <110

---------------------------------------------------

Different model but in same parameter:

Wavelength(nM): 850±10

Output Power (mW): <750

Operating Voltage(VDC): 5-24

Beam focus: Adjustable

Divergence (mrad, full angle): <2

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

Package Includes:

Laser module -1 piece

Power supply 1-12VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece
