Range |
0.05 m to 40 m(131 feet) |
|
Measuring accuracy |
typically: ± 1.5 mm |
|
Minimum unit displayed |
1 mm |
|
Laser class |
II |
|
Laser type |
620-690 nm, < 1 mW |
|
Automatic power off |
after 180 s |
|
Display illumination |
√ |
|
Continuous measurement |
√ |
|
Addition / subtraction |
√ |
|
Battery (AAA 2×1.5V) |
up to 5000 measurements |
|
Dimensions and weight |
122×45×26mm 105 g |
|
Storage Temperature range: |
-25℃ to +70 ℃ |
Function:
Selectable datum side
Display illumination
Buzzer
Single/continuous measurement
Area
Pythagoras

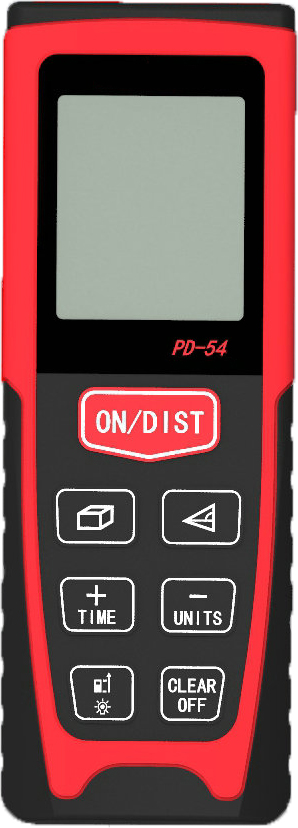

1 ON / Single measure / Continuous measure
2 Area / Volume measure
3 Pythagorean measure
4 Plus / Timer
5 Minus / Units
6 Reference / Illumination
7 Clear / OFF

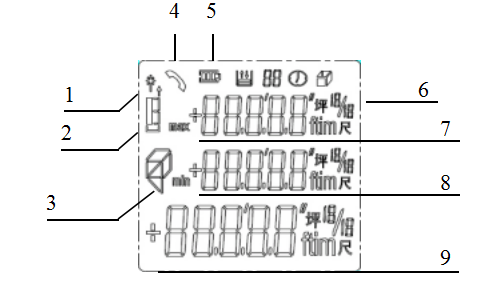

1 Laser ON
2 Reference (front/rear)
3 Area /Volume/ Pythagorean
4 Hardware error
5 Battery display
6 Units with exponents ( 2/3 )
7 Auxiliary Display 2 (e.g. intermediate values)
8 Auxiliary Display 1
9 Main display
