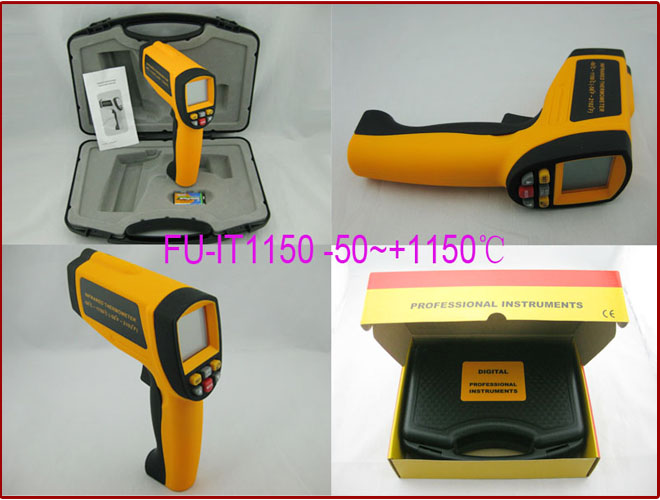

FU-IT1150 -50C ~ 1150C infrared thermometerTemperature
| Measurement range | -50°C to 1150°C(-58°F to 2102°F) |
| Accuracy | 0~1150°C(32-2102°F):±1.5°C(2.7°F) or 1.5% ,-50~0 °C (-58~32 °F ): ± 3 °C ( ± 5 °F )Whichever is greater |
| Resolution | 0.1°C or 0.1°F |
| Distance to spot size | 20:1 |
| Repeatability | 1% of reading or 1°C |
| Operating Humidity | 10~95%RH non-condensing up to 30°C(86°F) |
| Spectral response | (8-14)um |
| Response Time | 500ms |
| Emissivity | 0.95(Pre-Set) |
| Power | 9V Alkaline or NiCd battery |
| Typical battery life(Alkaline | Non-laser mode; 22 hrs ,Laser models:12hrs |
| Storage Temperature | -20~60°C(-4~140°F) |
| Size | 141*60*200mm |
| Weight | 270g |
A:Press SET key to save setup
B:Date storage :when selected STO ,lock &data&1 indicator will show when press
SET key,After temperature read out press STO/CAL key to store.then 2 memory unit will be shown,
there 12 groups memory unit available,To recall the stored date in normal measuring mode by pressing
STO/CAL key remove all data by pressing STO/CAL keys for 3 seconds
C:Laser/back light button.When backlight is on,any operations will remain back light for 10 seconds
LCD indicate on/off status
D/F:High temperature alarm:when selected HAL Press D/F to set high temperature
alarn trigger and confirmed by pressing SET key.Low temperature alarm:when selected LAL,
press D/F to set low termperture alarm trigger and confirmed by pressing SET key
E:Key functions:press MODE key ,LCD subdisplay blinks MAX-MIN-AVG-HAL-LAL-STO-EMS
segment(only main display means normal measuring mode)press SET enter
G:Clesius/Fahrenheit switch :Please open battery and push the slide switch for convertsion
H:Trigger:when turn on LCD distplay Verxx software version for 1 sec,And turn to display reading with
SCAN icon,Release the trigger ,dispaly reading with HOLD icon,Buit in auto power off in 7 sec.
1.Infrared thermometer 1PCS
2.Manual English 1PCS
3.Battery 9V 1PCS
4.Gift box 1PCS
