Product Title：FU505AB35-GD832 FU515AB10-GD832 FU520AB50-GD832 green 505nm 515nm 520nm 0-50mW adjustable focal length powell line laser light source with 8*32mm diode lazer module lamp
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Model: FU505AB35-GD832, FU515AB10-GD832, FU520AB50-GD832
Projection Type : Line
Projection Fan angle (full angle): near 10°, 20°,30°,45°,60°,75°,90°
Line lens: Glass powell lens
Wavelength(nM) and output power: 505±10nm(0-35mW), 515±10nm(0-10mW), 520±10nm(0-50mW)
Operating Voltage(VDC): 3-5
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50

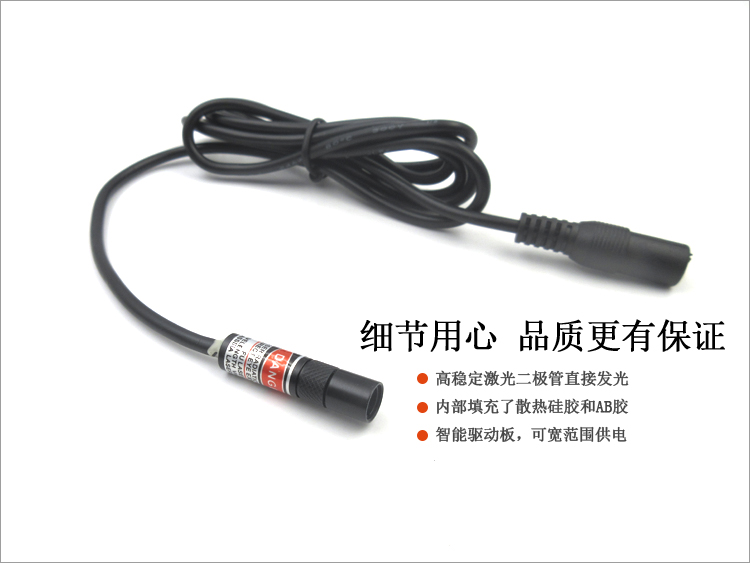

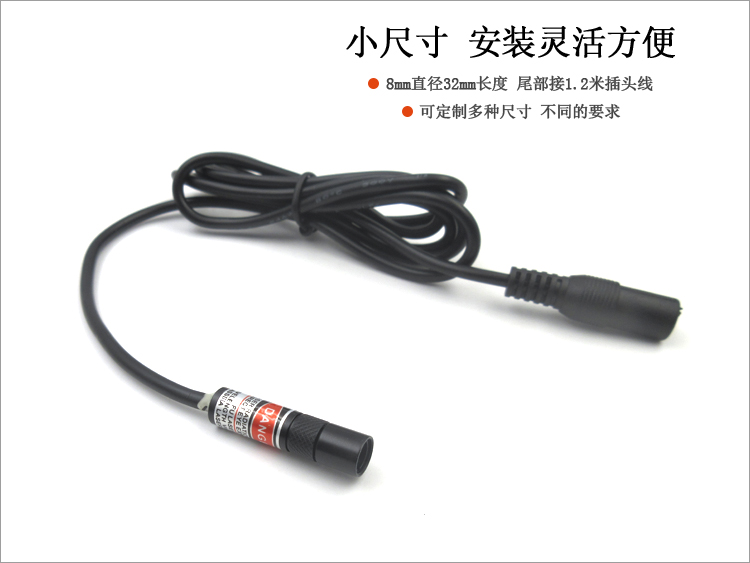

Laser Head Dimensions (mm): 32(L) x 8(D)
---------------------------------------------------------------

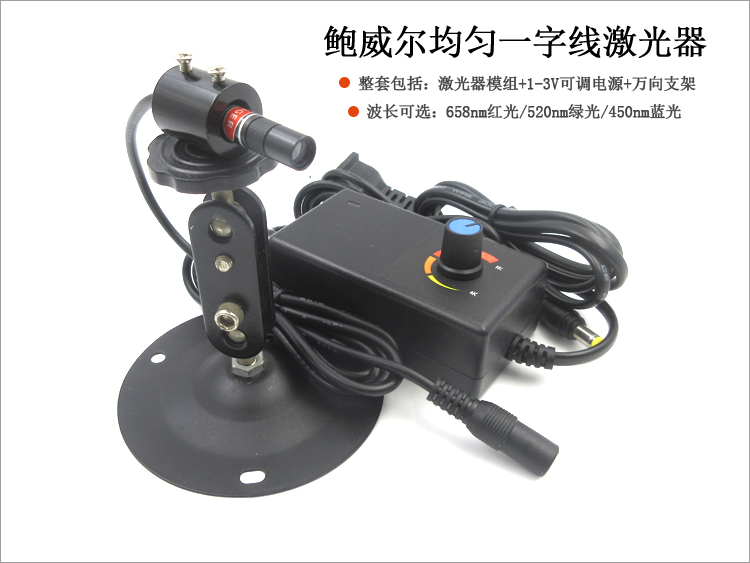

Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
