Product Title：FU520AB50-GD16-WLD powell lens line laser 520nm <50mw 3-5VDC class 3B laser, line laser light, line laser projector no point at end
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Model: FU520AB50-GD16-WLD
Line specification:
Wavelength(nM): 520±10 green color
Output Power (mW): <50
Operating Voltage(VDC): 5
Projection Type : Line
Beam focus: Line thickness adjustable(To thick or thin)
Projection Fan Angle(°, full angle) : 7~110
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air
Standard Warranty (months): 12
Laser Head Dimensions (mm): 90(L) x 16(D)
------------------

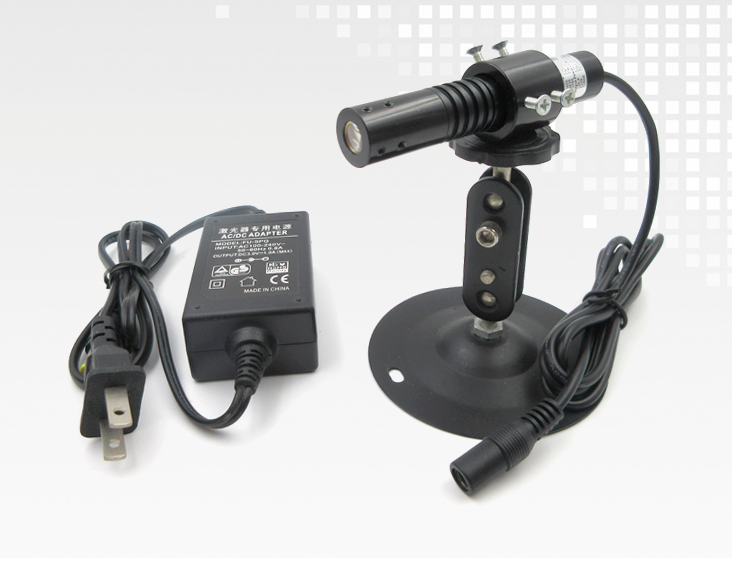

Package Includes:
Laser module -1 piece
5VDC power supply- 1 piece
Brightness controller- 1 piece
Tripod(Bracket/Mount)- 1 piece
FU520AB50-GD16-WLD powell lens line laser 520nm <50mw 3-5VDC class 3B laser, line laser light, line laser projector no point at end
