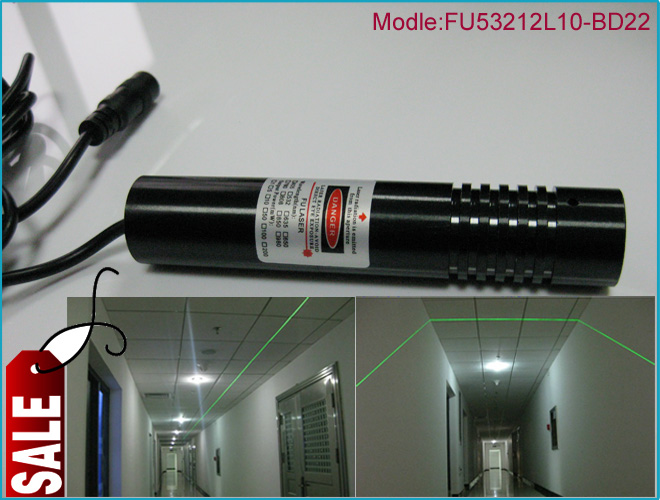

FU53212L10-BD22 Green line laser module
Line specification：
Wavelength(nM): 532±10
Output Power (mW): <10
Operaing Voltage(VDC): 3
IEC Safety : Class 2
Projection Type : Line
Beam focus: Fixed
Projection Fan Angle(°, full angle) : 120
Divergence (mrad, full angle): <1
Transverse Mode : Near TEM00
Operating Temperature Range (°C): 10 to 30
Storage Temperature Range (°C): 0 to 40
Total Power Consumption (W) 1
Cooling Method : Passive Air
Standard Warranty (months): 12
MTTF (operational hours) : 5000

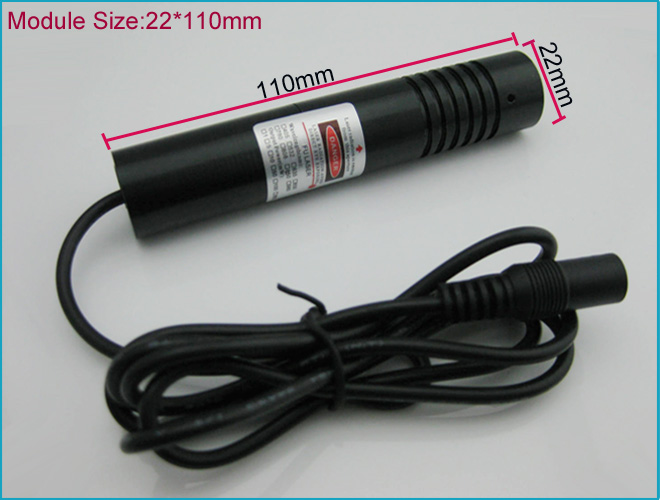

Laser Head Dimensions (mm) 110 (L) x 22 (D)
------------------
Package Includes:
Laser module -1 piece

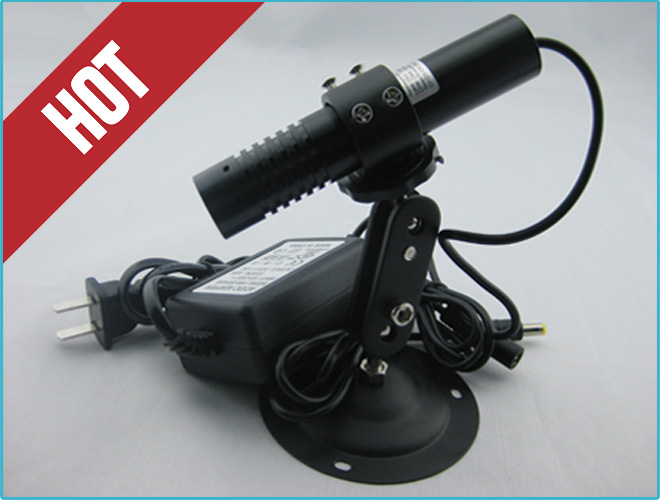

Aluminum casing with tripod mount -1 piece
Power supply -1 piece
