More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.



Brand: FU

Model: FU505AC35-GD1673, FU515AC10-GD1673, FU520AC1200-GD1673

Projection Type : Cross hair Line

Projection Fan angle (°, full angle): <110

Line lens: two glass cylindrical lens



Wavelength(nM) and output power: 505±10nm(0-35mW), 515±10nm(0-10mW), 520±10nm(0-1200mW)

Operating Voltage(VDC): 3-5(<=100mW) or 9-24(>100mW)

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

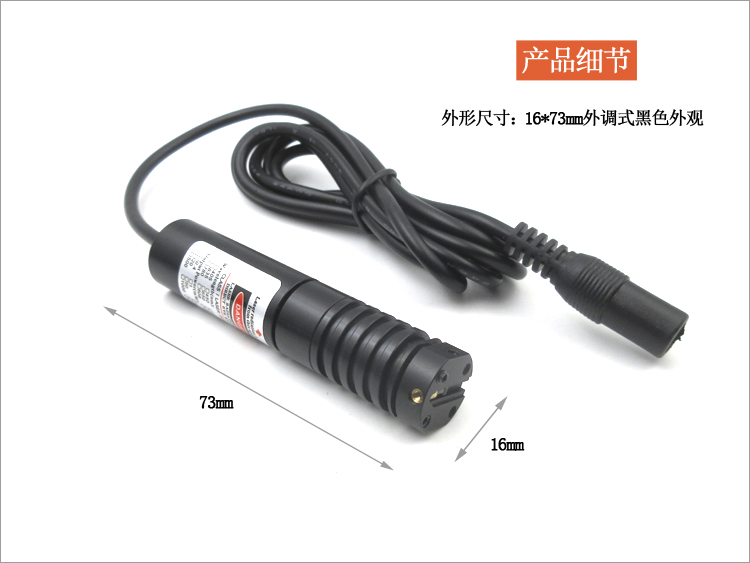

Laser Head Dimensions (mm): 73(L) x16(D)

---------------------------------------------------------------

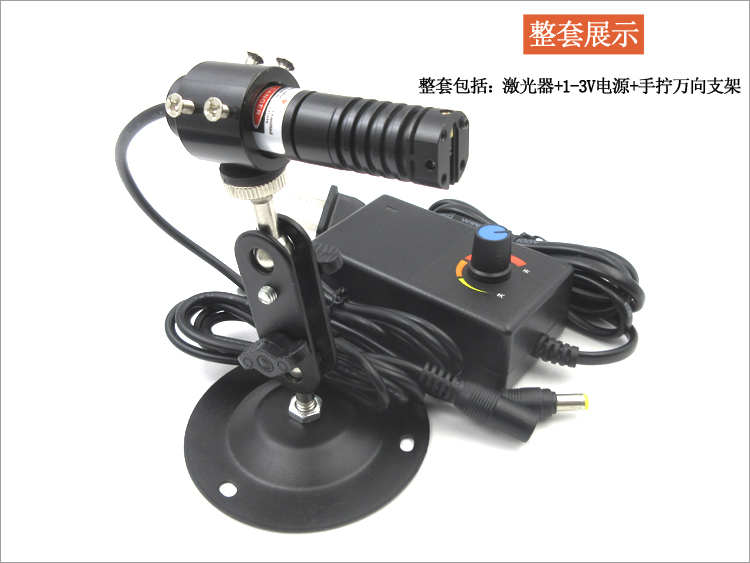

Package Includes:

Laser module -1 piece

Power supply- 1 piece

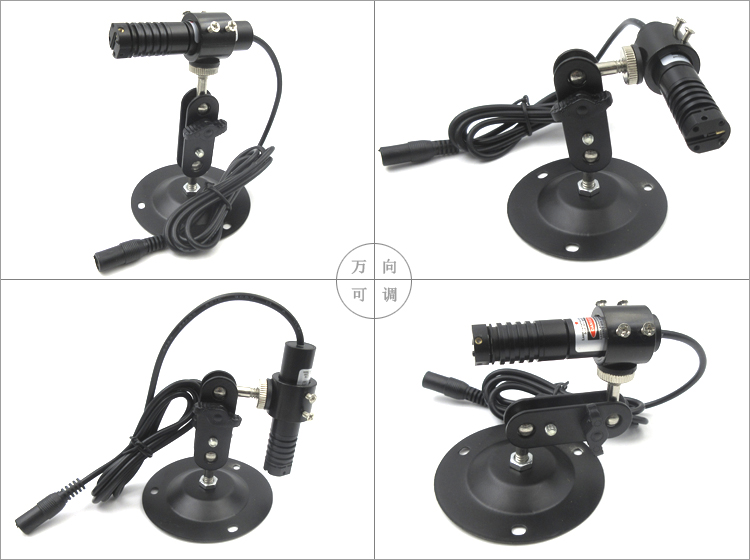

Tripod(Bracket/Mount)- 1 piece
