More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Cross Line specification:
Wavelength(nM): 520±10 green color
Output Power (mW): <150
Operating Voltage(VDC): 9-25

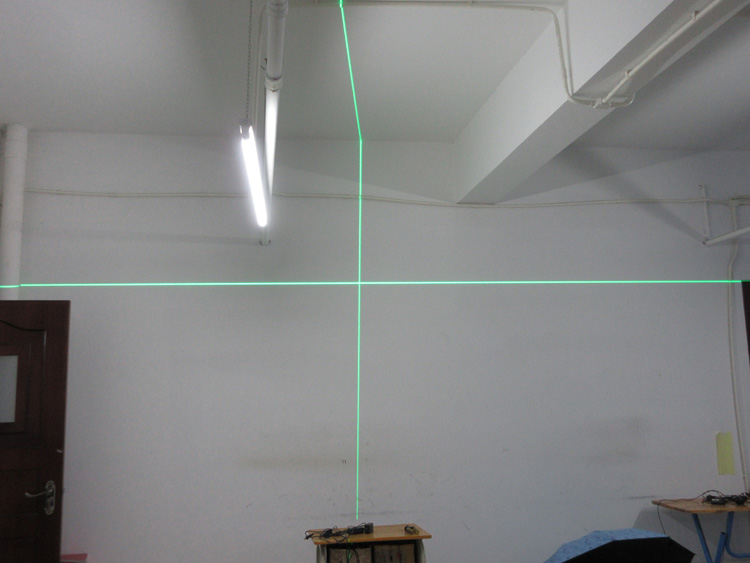

Projection Type : Cross hair Line
Beam focus: Line thickness adjustable(To thick or thin)
Projection Fan Angle(°, full angle) : 5~110
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air + Heat sink
Standard Warranty (months): 12
Laser Head Dimensions (mm): 70(L) x 16(D)
------------------
|
|
