Product Title：FU505AD35-GD16(DOT)/FU505AL35-GD16/FU505AC35-GD16 505nm 35mw adjustable focus green dot laser pointer cross hair light projector line shape lazer lamp

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU505AD35-GD16(DOT)
Projection Type : Dot/spot/point

----------------------------------------------------

Model: FU505AL35-GD16(Line)

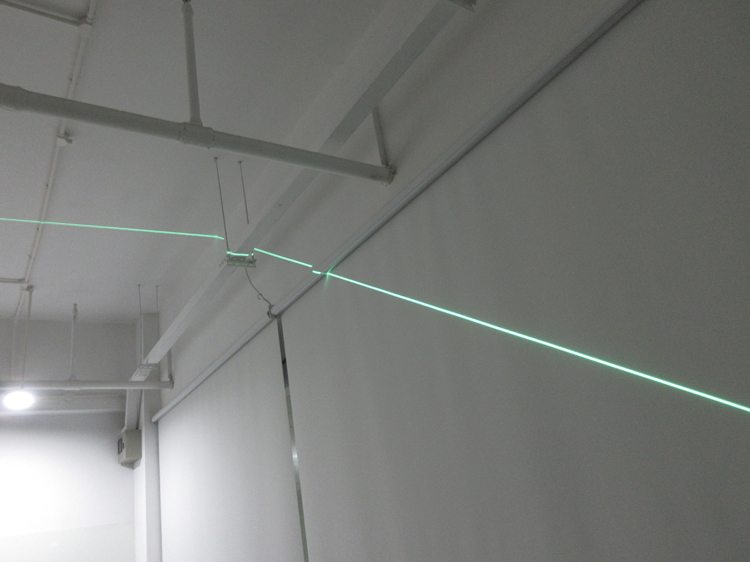

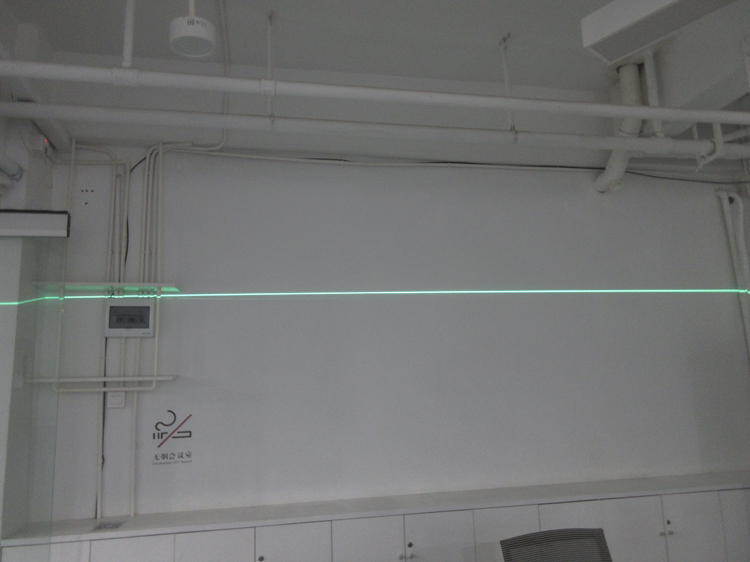

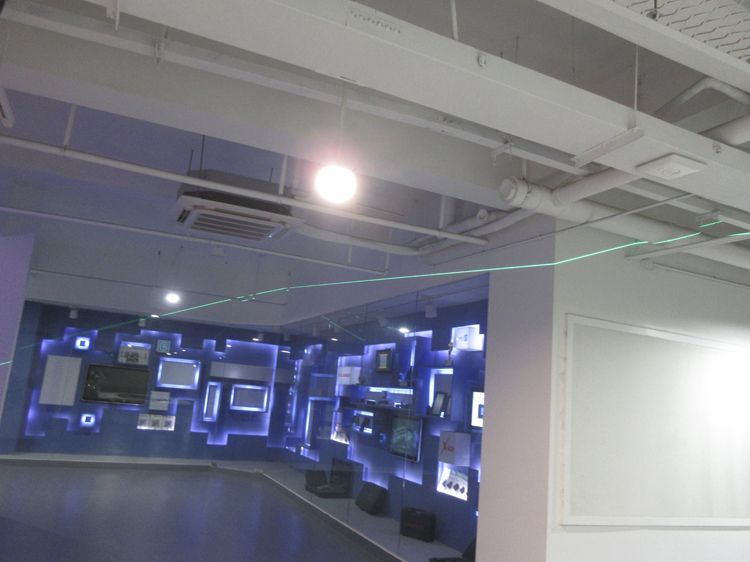

Projection Type : Line

Projection Fan angle (°, full angle): <110
----------------------------------------------------
Model: FU505AC35-GD16(Cross)

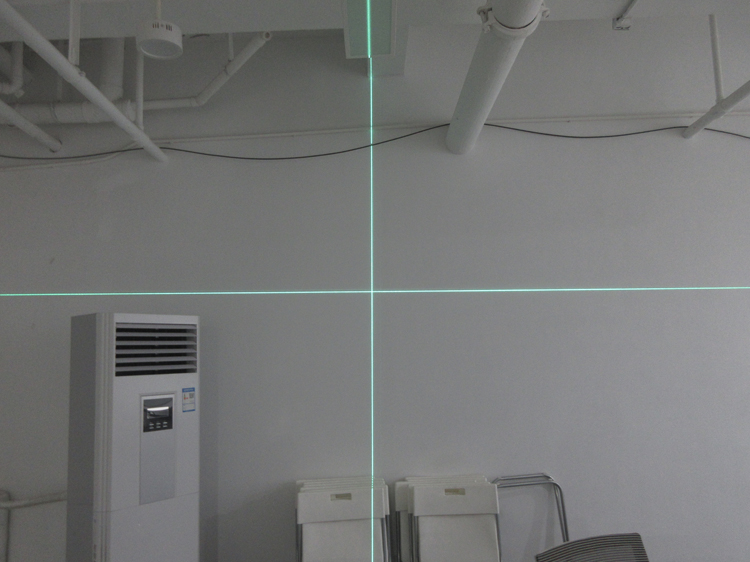

Projection Type : Cross hair Line
Projection Fan angle (°, full angle): <110
---------------------------------------------------

Different model but in same parameter:
Wavelength(nM): 505±10
Output Power (mW): <35
Operating Voltage(VDC): 2.8-5.2
Beam focus: Adjustable
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air
Cable length(cm): <100
Standard Warranty (months): 12
Laser Head Dimensions (mm): 70(L) x 16(D)

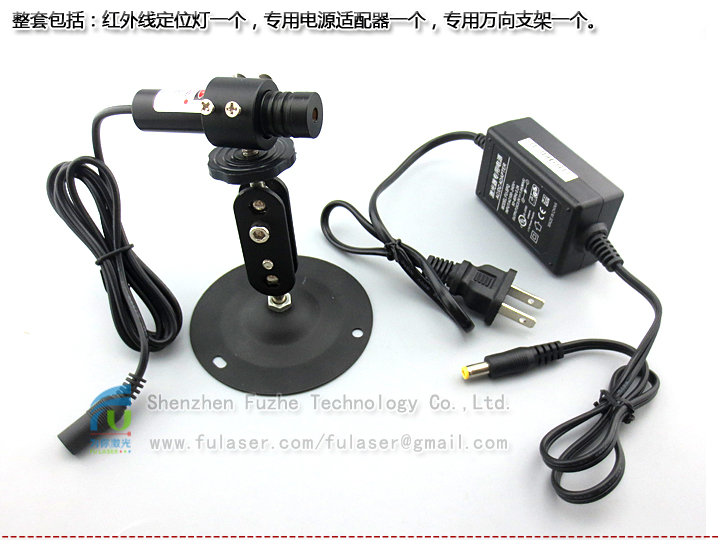

Package Includes:
Laser module -1 piece
Power supply 3VDC- 1 piece
Tripod(Bracket/Mount)- 1 piece
------------------------------------------------------------------









FU-Lasers for you!

FU505AD35-GD16(DOT)/FU505AL35-GD16(Line)/FU505AC35-GD16(Cross) 505nm 35mw adjustable focus green dot laser pointer cross hair light projector line shape lazer lamp
