Product Title：Red glass HB600 HB610 HB630 HB640 HB650 HB670 HB685 HB700 HB720 HB600/610/630/640/650-2500nm band pass filter

Red glass Characteristic

Type	Thickness (mm)	A[2856k]			D65			Chemical Stability		N_D	α×10^-7 (/℃)	Tg (℃)	Ts (℃)	S
Type	Thickness (mm)	x	y	Y	x	y	Y	D_A	D	N_D	α×10^-7 (/℃)	Tg (℃)	Ts (℃)	S
HB600	2	0.680	0.319	27.0	0.675	0.325	16.5	1	2	1.523	103	527	605	2.64
HB610	2	0.695	0.305	18.4	0.690	0.310	10.7	1	2	1.523	103	527	605	2.64
HB630	2	0.713	0.287	10.4	0.711	0.289	5.5	1	2	1.523	103	527	605	2.64
HB640	2	0.724	0.276	5.0	0.723	0.277	2.4	1	2	1.523	103	527	605	2.64
HB650	2	0.728	0.272	3.2	0.728	0.272	1.5	1	2	1.523	103	527	605	2.64
HB670	2	0.731	0.269	1.1	0.730	0.270	0.5	1	2	1.523	103	527	605	2.64
HB685	2	0.734	0.266	0.3	0.734	0.266	0.1	1	2	1.523	103	527	605	2.64
HB700	2	0.735	0.265	0.0	0.735	0.265	0.0	1	2	1.523	111	534	592	2.64
HB720	2							5	4	1.532	111	534	592	2.77

Red glass Technical Indexes and Class Of Bubble、Stripe、Stress

Type	Thickness (mm)	λ_tj(nm)	λ_0(nm)	Tλ_0(%)	K	Bubble	Stripe	Stress
HB600	2	600 ± 10	680	≥88.7	≥1.2	C-B	3C	3
HB610	2	610 ± 10	680	≥88.7	≥1.2	C-B	3C	3
HB630	2	630 ± 10	700	≥88.7	≥1.2	C-B	3C	3
HB640	2	640 ± 10	720	≥88.7	≥1.2	C-B	3C	3
HB650	2	650 ± 10	720	≥87.5	≥1.0	C-B	3C	3
HB670	2	670 ± 10	750	≥87.5	≥1.0	C-B	3C	3
HB685	2	685 ± 10	800	≥83.6	≥0.8	C-B	3C	3
HB700	2	700 ± 10	800	≥79.8	≥0.8	C-B	3C	3
HB720	3	720 ± 10	800	≥80.0	≥0.8	C-B	4	3

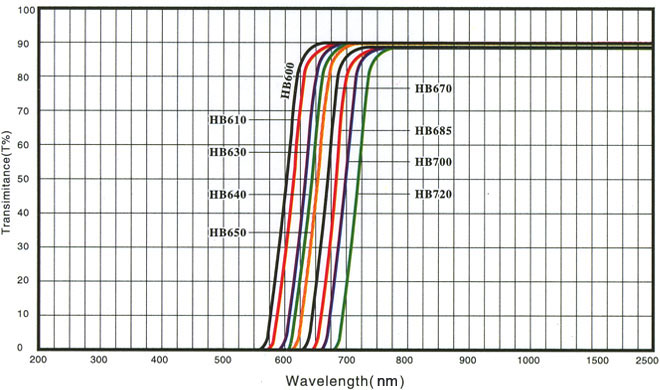

Red glass's Spectra
