Orange glass CB535 CB550 CB565 CB580 CB535/550/565/580-2500nm Band Pass Filter-Orange glass-深圳市富喆科技有限公司-官方网站-Shenzhen Fuzhe Technology Co., Ltd.

Product Title：Orange glass CB535 CB550 CB565 CB580 CB535/550/565/580-2500nm Band Pass Filter

Orange glass Characteristic

Type	Thickness (mm)	A[2856k]			D65			Chemical Stability		N_D	α×10^-7 (/℃)	Tg (℃)	Ts (℃)	S
Type	Thickness (mm)	x	y	Y	x	y	Y	D_A	D_W	N_D	α×10^-7 (/℃)	Tg (℃)	Ts (℃)	S
CB535	2	0.549	0.448	82.2	0.504	0.492	70.2	3	2	1.523	103	527	605	2.64
CB550	2	0.594	0.405	63.6	0.569	0.430	48.4	3	2	1.523	103	527	605	2.64
CB565	2	0.622	0.377	51.6	0.605	0.395	36.7	3	2	1.523	103	527	605	2.64
CB580	2	0.658	0.342	35.9	0.649	0.351	23.3	1	2	1.523	103	527	605	2.64

Orange glass Technical Indexes and Class Of Bubble、Stripe、Stress

Type	Thickness (mm)	λ_tj(nm)	λ_0(nm)	Tλ_0(%)	K	Bubble	Stripe	Stress
CB535	2	535 ± 10	650	≥88.7	≥1.2	C-B	3C	3
CB550	2	550 ± 10	650	≥88.7	≥1.2	C-B	3C	3
CB565	2	565 ± 10	650	≥88.7	≥1.2	C-B	3C	3
CB580	2	580 ± 10	650	≥88.7	≥1.2	C-B	3C	3

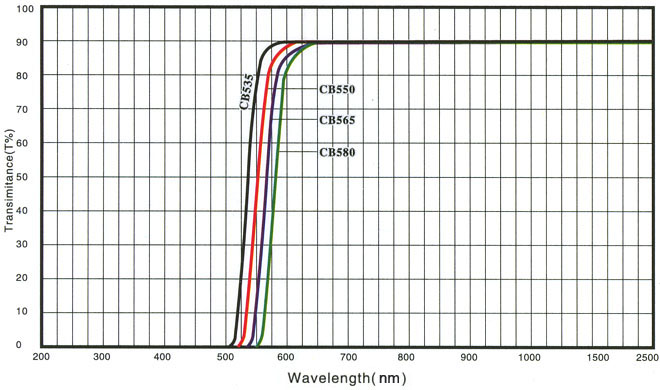

Orange glass's Spectra

FU-Lasers for you!

Orange glass CB535 CB550 CB565 CB580 CB535/550/565/580-2500nm Band Pass Filter
