| Model No. | FU785AD80-F100SFC |
| Wavelength (nm) | 785±5 |
| Spectral Line width (nm) | <3 |
| Output Power (mW) | 1~80(0~Max power adjustable) |
| Operating Mode | CW |
| Transverse Mode | TEM00 |
| Fiber core diameter (um) | 4~6 |
| Numerical aperture | 0.12 |
| Length of Fiber(cm) | 100(acquiescent), 50,200(For choose) |
| Fiber connector | FC/PC(acquiescent),FC/APC(For choose) |
| Power Stability(RMS, over 4 hours) | <3%(acquiescent),<2%(For choose) |
| Cooling System | TEC |
| Power Supply | 90~240VAC@50Hz |
| Modulating Repetition | 100KHz TTL / 10KHz Analogue |
| Warm-up Time (minutes) | <5 |
| Operation Temperature (℃) | 0~40 |
| Expected Lifetime (hours) | >10000 |
| Warranty Time | 12 Month |

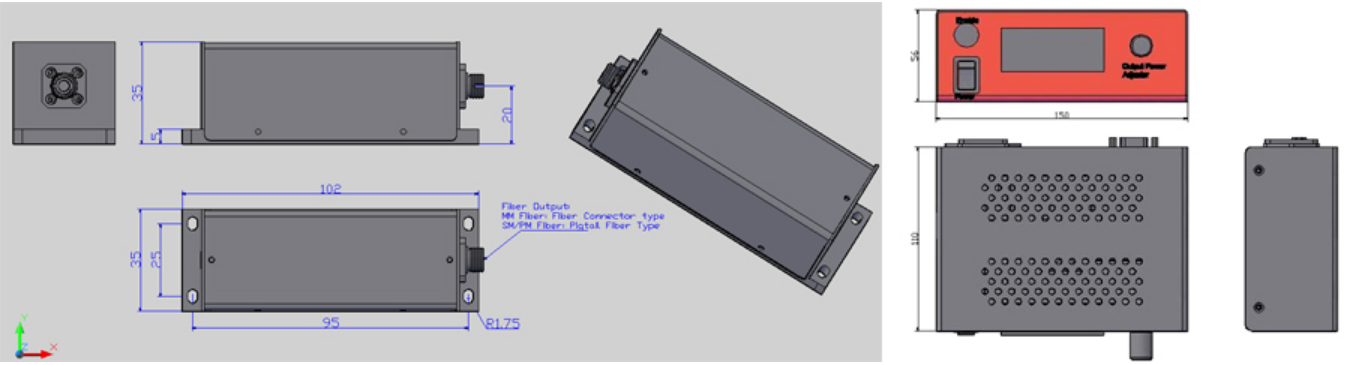

| Laser dimension | 102*35*35mm (L*W*H) |
| Power supply | 150(W)x110(W)x56(H)mm3 90~240V 50/60Hz input |
785nm 0-80mW Single mode fiber laser.pdf
