| 型号Model No. |

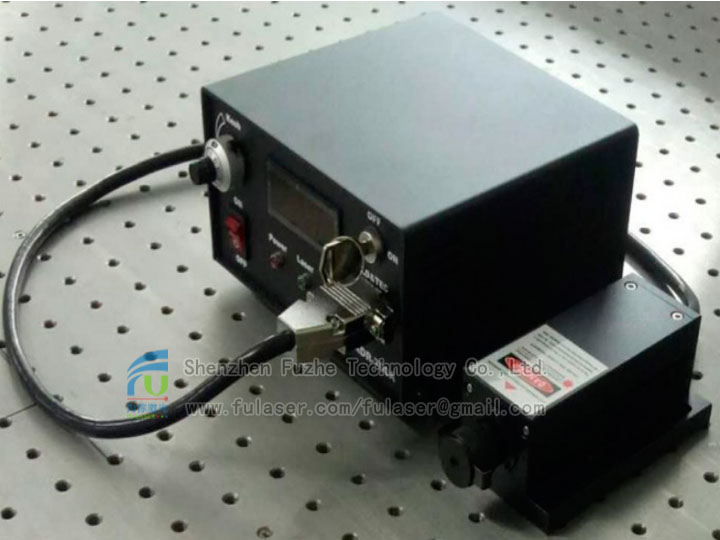

FU-UVSP-320/15mW |
| 波长Wavelength (nm) |
320±1 |
| 工作方式Operating mode |
CW |
| 输出功率Output Power (mW) |
>=15 (0~Max power adjustable) |
| 光斑模式 Transverse Mode |
TEM00 |
| 光束质量因子M² factor |
<2.0 |
| 偏振比Polarization ratio |
Line polarization >50:1 |
| 光束尺寸 Beam Diameter at Aperture (mm) |
~1.0±0.3 (Circle beam) |
| 光束发散角Beam divergence, Full Angle (mrad) |
<2.0 |
| 光束指向稳定性 Beam pointing stability (mrad) |
<0.05 |
| 功率稳定性 Power stability (RMS, over 4 hours) |
<3% |
| 制冷方式 Cooling system |
TEC |
| 供电方式 Power supply |
90~240VAC at 50Hz |
| 调制速率Modulation Repetition |
30kHZ TTL |
| 预热时间 Warm-up Time (minutes) |
<10 |
| 工作温度Operating temperature (℃） |
10~35 |
| 使用寿命 Expected lifetime (hours) |
>10000 |
|
|
