| 型号Model No. | FU808AD100F-100W(100W) |

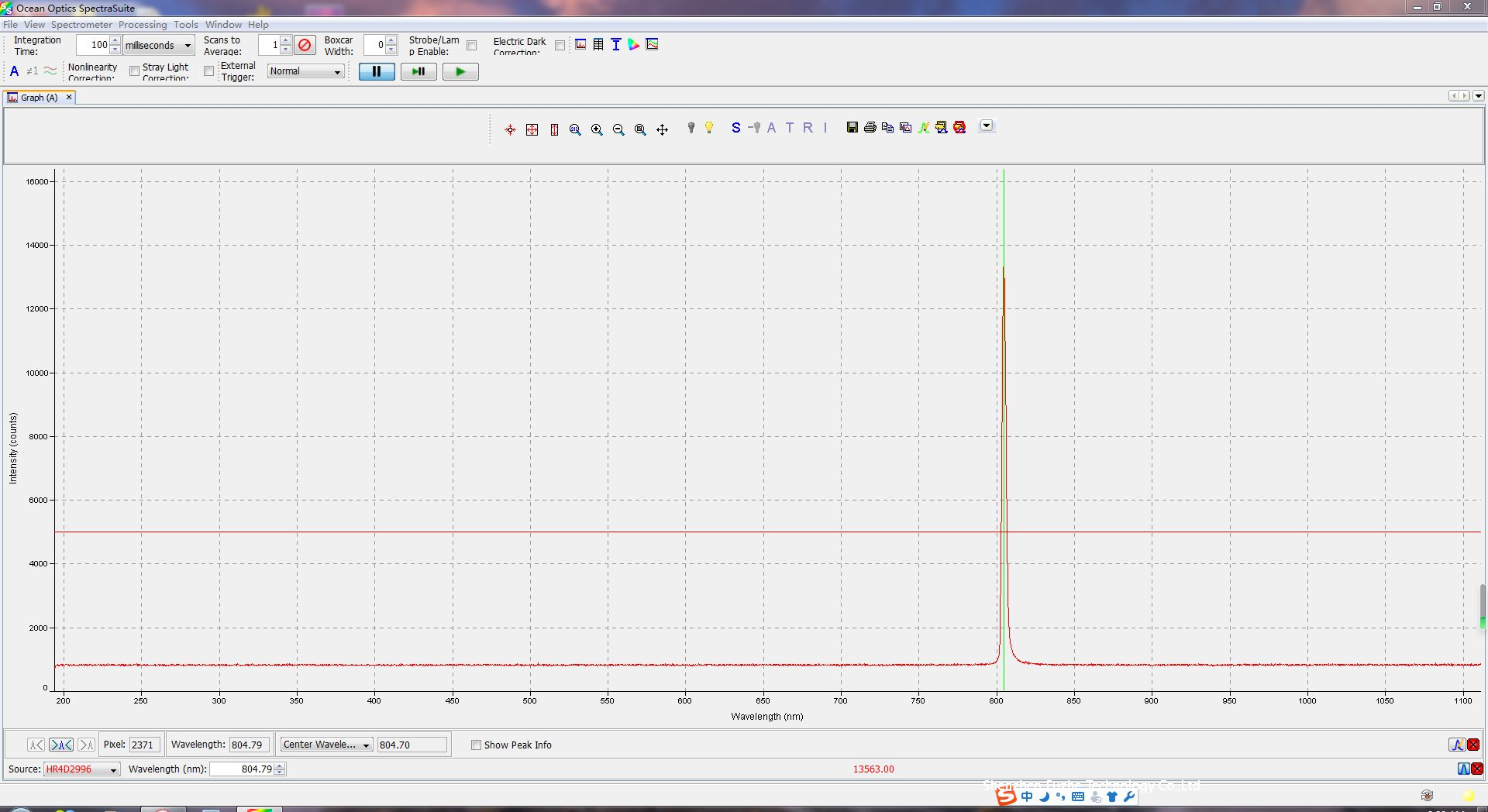

| 波长Wavelength (nm) | 808 ±5 |
| 光谱线宽Spectral Line width (nm) | <3 |
| 出光纤输出功率 Output Power (W) | 100(0~Max功率可调节) |
| 工作方式 Operating Mode | CW |
| 光斑模式 Transverse Mode | TEM00 |
| 光纤芯径Fiber core diameter (um) | 400 |
| 数值孔径 Numerical aperture | 0.22 |
| 光纤长度Length of Fiber(cm) | 50,100,200等(可选) |
| 光纤连接器fiber connector | SMA905,FC/PC(可选) |

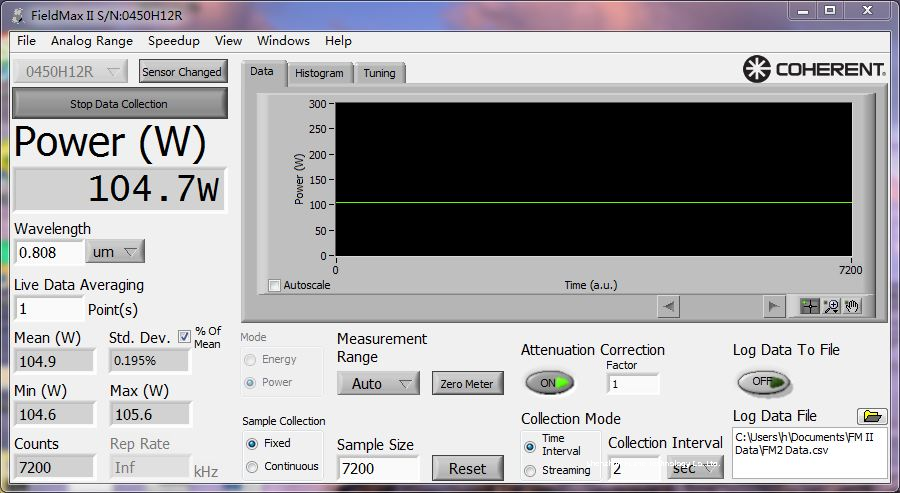

| 功率稳定性Power Stability (RMS, over 4 hours) | <1%,<3%(可选) |
| 制冷方式Cooling System | TEC |
| 供电方式 Power Supply | 90~240VAC@50Hz |
| 调制速率 Modulating Repetition | 10KHz TTL / 10KHz Analogue |
| 预热时间Warm-up Time (minutes) | <5 |
| 工作温度Operation Temperature (℃) | 10~30 |
| 使用寿命Expected Lifetime (hours) | >10000 |
| 保修期Warranty Time | 12Month |

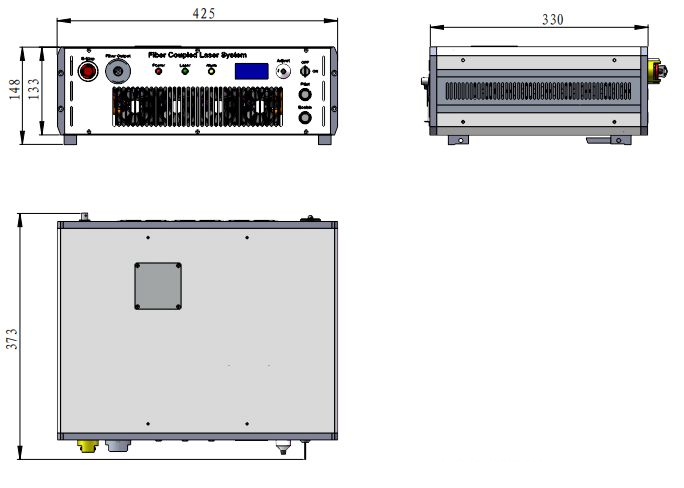

| 外形尺寸/重量 Dimensions/Weight | 425×373×148mm3 7.5kg (Based on actual situation) |
