Product Title：400-1100nm dot/line/crosshair line lazer projector light with adjustable focus diode Laser with heat sink 33*33*82.5mm
More customized diode laser modules with different wavelengths / dimensions and power options are available additionally to the standard types.
Brand: FU
Model (Wavelength / Power)
FU380AX220-BF33*33*82.5mm(380nm <220mW)
FU395AX400-BF33*33*82.5mm(395nm <400mW)
FU402AX850-BF33*33*82.5mm(402nm <850mW)
FU405AX300-BF33*33*82.5mm(405nm <300mW)
FU450AX300-BF33*33*82.5mm(450nm <300mW)
FU488AX60-BF33*33*82.5mm(488nm <60mW)
FU520AX350-BF33*33*82.5mm(520nm <350mW)
FU635AX240-BF33*33*82.5mm(635nm <240mW)
FU638AX700-BF33*33*82.5mm(638nm <700mW)
FU660AX400-BF33*33*82.5mm(660nm <400mW)
FU670AX5-BF33*33*82.5mm(670nm <5mW)
FU685AX60-BF33*33*82.5mm(685nm <60mW)
FU690AX50-BF33*33*82.5mm(690nm <50mW)
FU780AX200-BF33*33*82.5mm(780nm <200mW)
FU784AX150-BF33*33*82.5mm(784nm <150mW)
FU808AX1200-BF33*33*82.5mm(808nm <1200mW)
FU815AX220-BF33*33*82.5mm(815nm <220mW)
FU820AX200-BF33*33*82.5mm(820nm <200mW)
FU830AX400-BF33*33*82.5mm(830nm <400mW)
FU850AX750-BF33*33*82.5mm(850nm <750mW)
FU880AX10-BF33*33*82.5mm(880nm <10mW)
FU895AX50-BF33*33*82.5mm(895nm <50mW)
FU905AX200-BF33*33*82.5mm(905nm <200mW)
FU940AX750-BF33*33*82.5mm(940nm <750mW)
FU980AX500-BF33*33*82.5mm(980nm <500mW)
---------------------------------------------------
Different model but in same parameter:

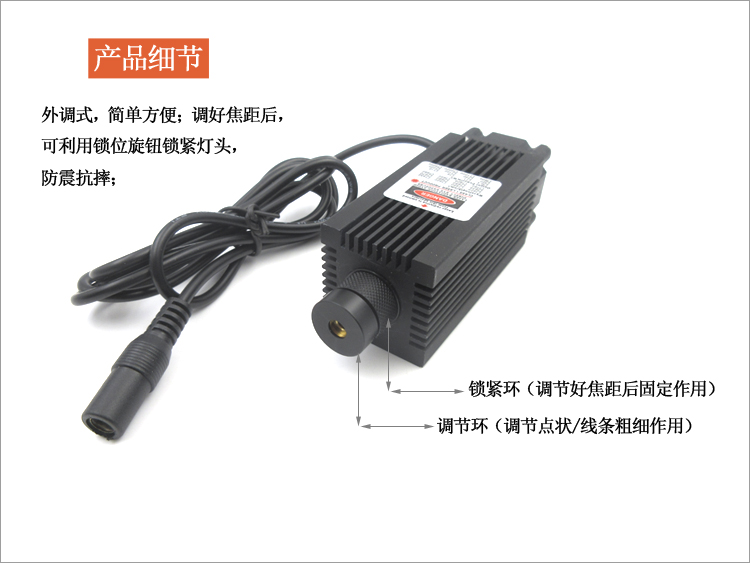

Beam focus: Adjustable

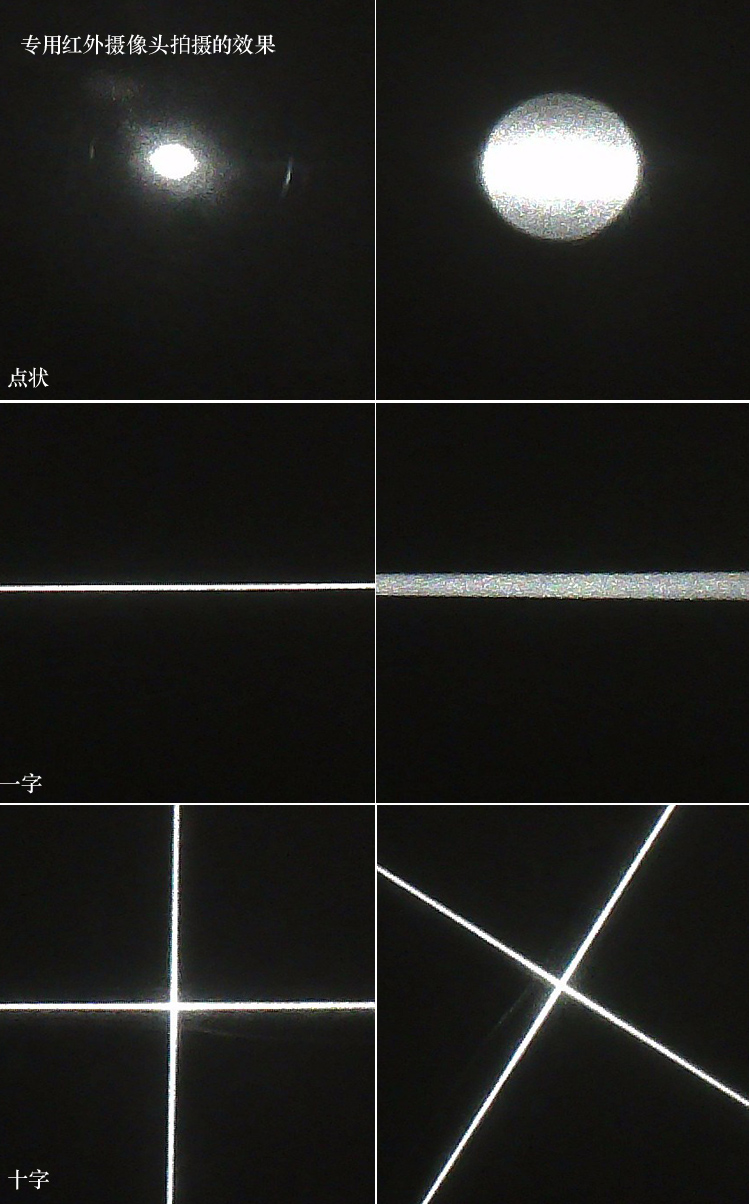

Beam mode: Dot / Line / Cross
Dot's divergence: <2mRad
Line and cross Projection Fan angle (°, full angle): <110
Operating Voltage(VDC): 2.8~3.2 or 5~24
Operating Temperature Range (°C): -10 to +50
Storage Temperature Range (°C): -20 to +60

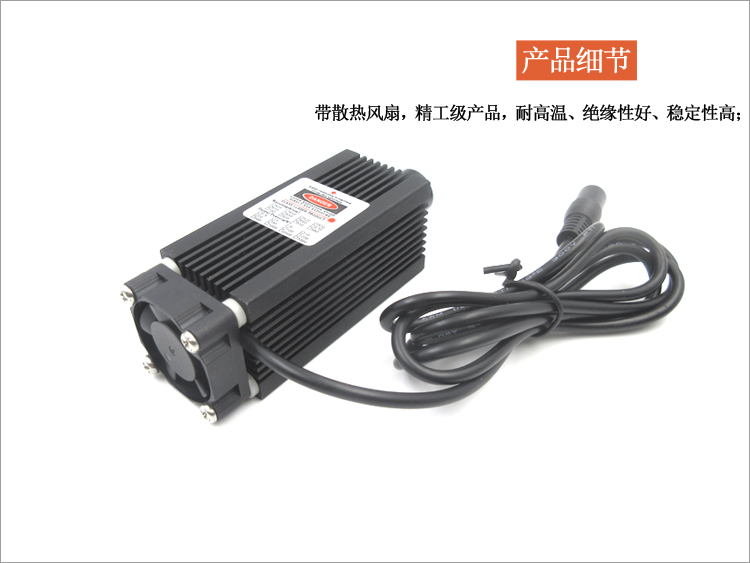

Cooling Method : Passive air

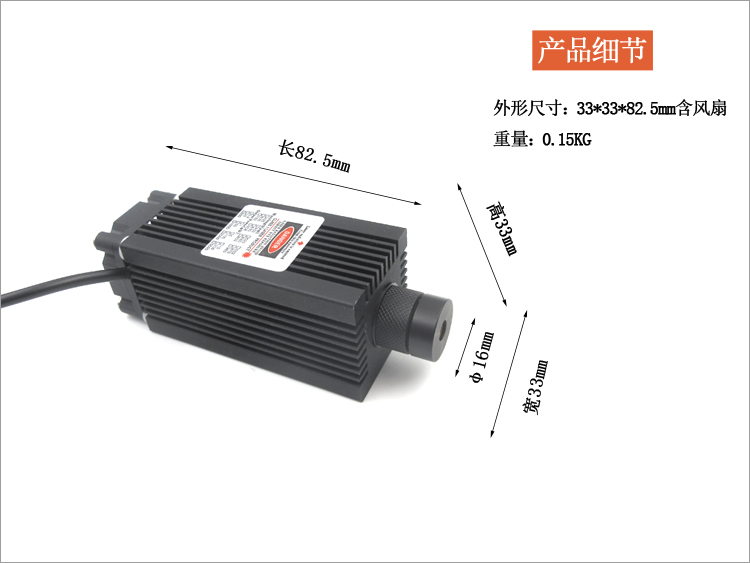

Laser Head Dimensions (W*H*L in mm): 33*33*82.5 (lasers with other power is also suitable for this size/dimension)
---------------------------------------------------------------

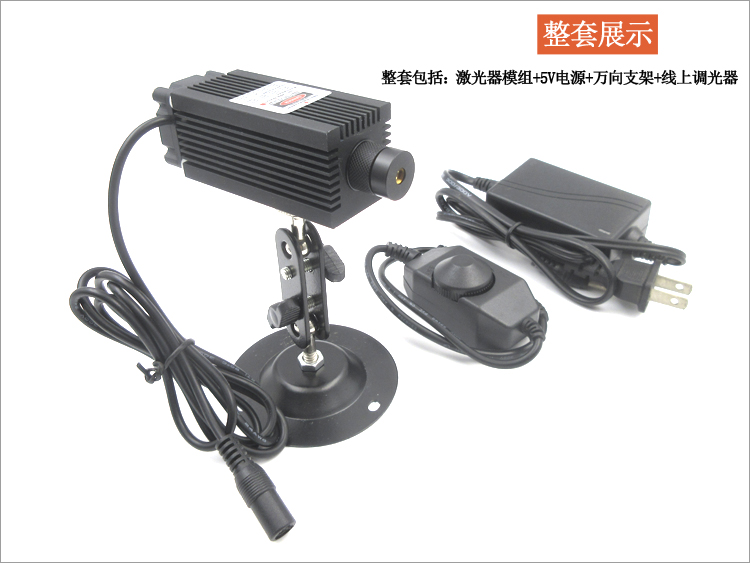

Package Includes:
Laser module -1 piece
Power supply- 1 piece
Power regulator- 1 piece

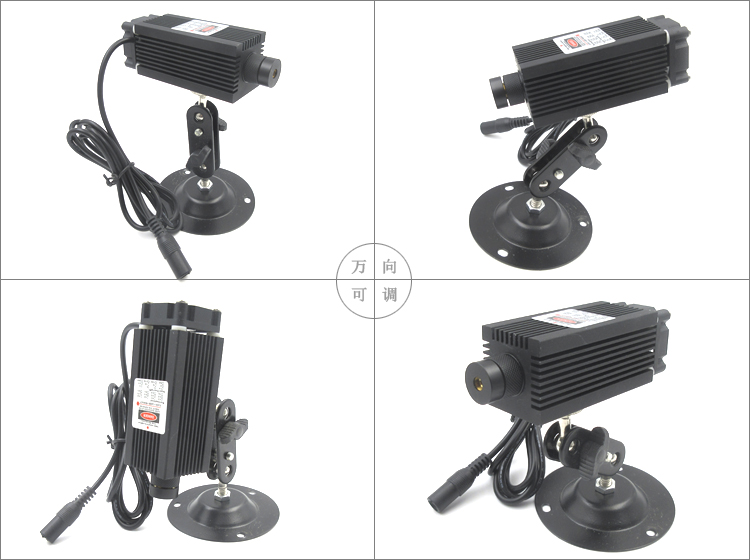

Tripod(Bracket/Mount)- 1 piece
---------------------------------------------------------------
