More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.



Brand: FU

Model: FU65090AY100-GD1690, FU63590AY120-GD1690

Projection Type : Circle

Projection Fan angle (full angle): near 90°

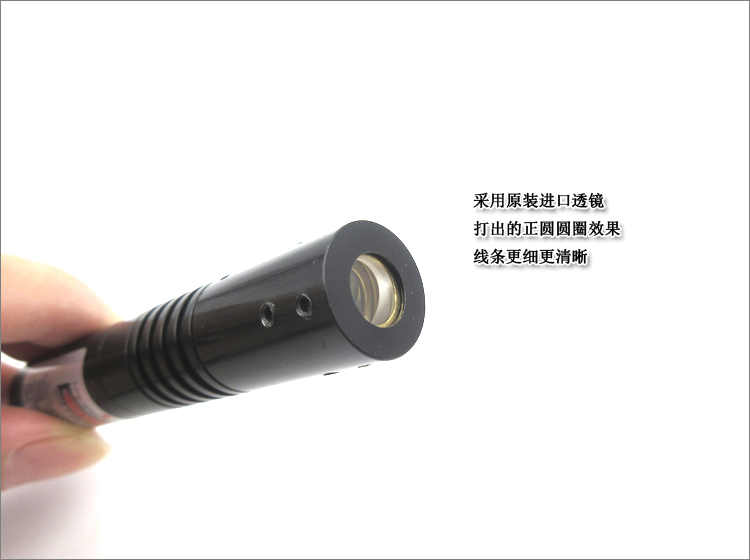

Lens: Glass lens

Circle diameter at 1meter: about 2meter (Distance: Diameter≈1:2)



Wavelength(nM) and output power: 650±10nm(0-100mW), 635±10nm(0-120mW)

Operating Voltage(VDC): 3-5

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

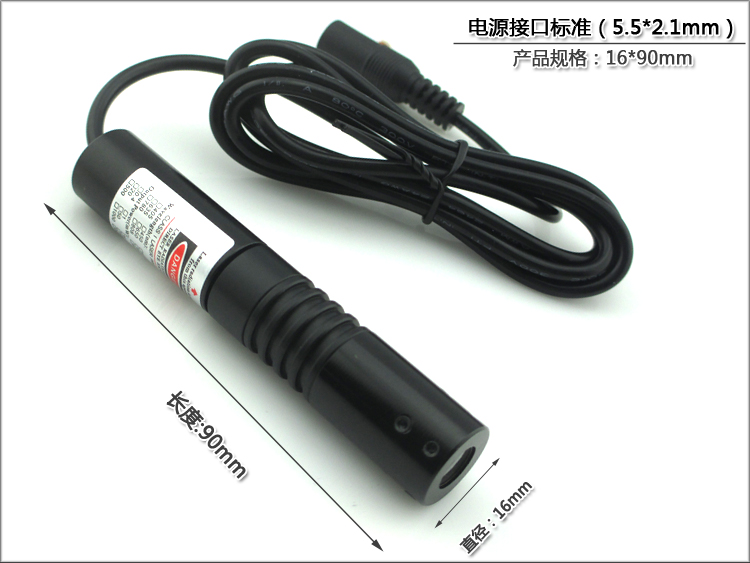

Laser Head Dimensions (mm): 90(L) x 16(D)

---------------------------------------------------------------

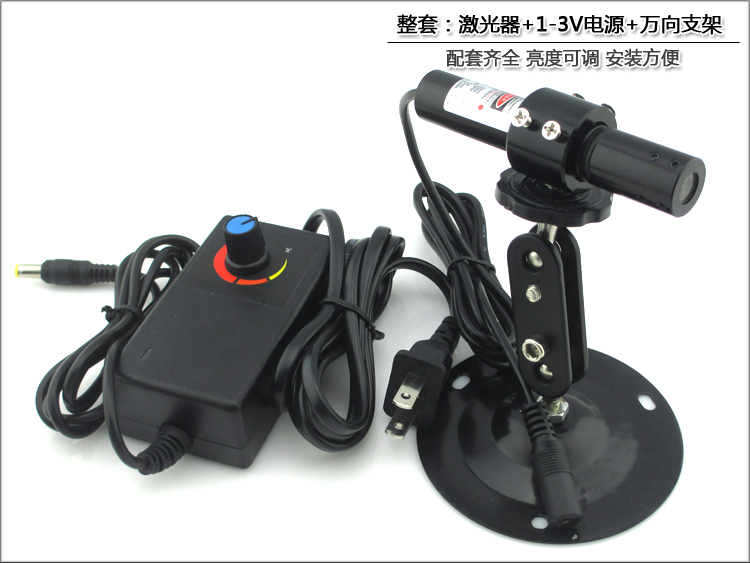

Package Includes:

Laser module -1 piece

Power supply- 1 piece

Tripod(Bracket/Mount)- 1 piece

FU-Lasers for you!
