Product Title：FU650SXY100-GD16-54.02°-360(RED) FU520SXY100-GD16-54.02°-360(GREEN) FU450SXY100-GD16-54.02°-360(BLUE) laser diode module Uniform Solid circle laser light (proportional scaling)

FU650SXY100-GD16-54.02°-360(RED) FU520SXY100-GD16-54.02°-360(GREEN) FU450SXY100-GD16-54.02°-360(BLUE) laser diode module Uniform Solid circle laser light (proportional scaling)

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650SXY100-GD16-54.02°-360(RED)

Wavelength: 650nm

----------------------------------------------------

Model: FU520SXY100-GD16-54.02°-360(GREEN)

Wavelength: 520nm

----------------------------------------------------

Model: FU450SXY100-GD16-54.02°-360(BLUE)

Wavelength: 450nm

---------------------------------------------------

Different model but in same parameter:

Output Power (mW): <100

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

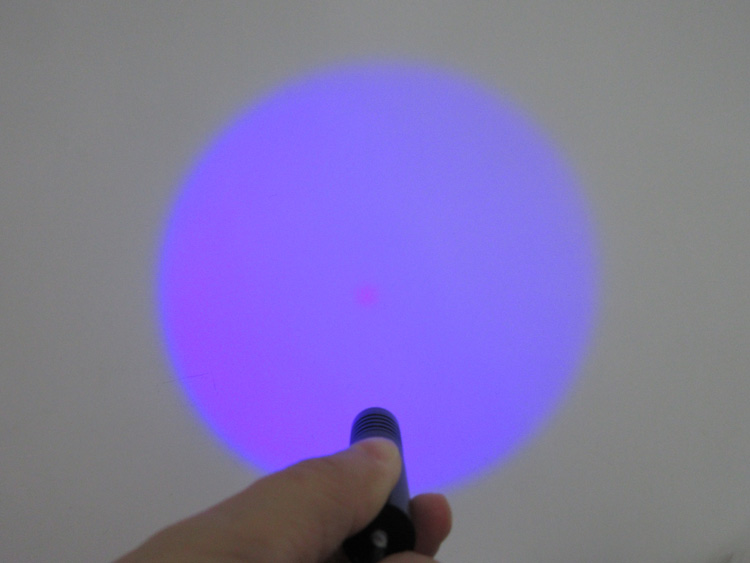

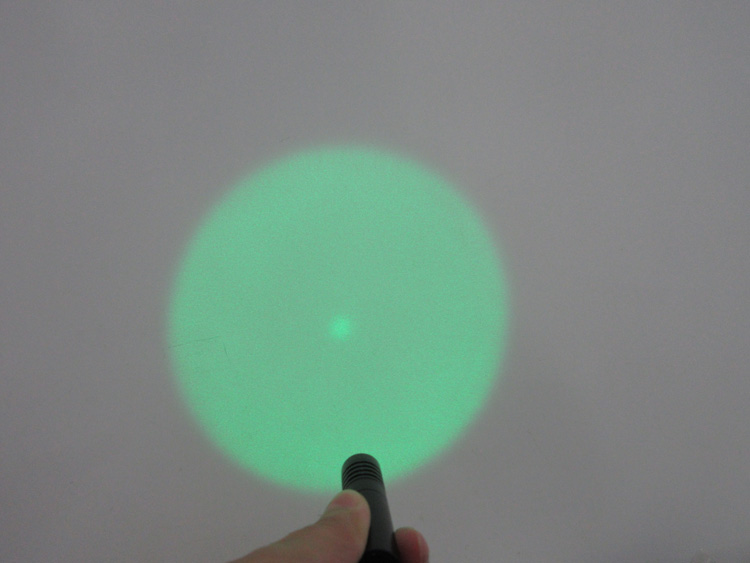

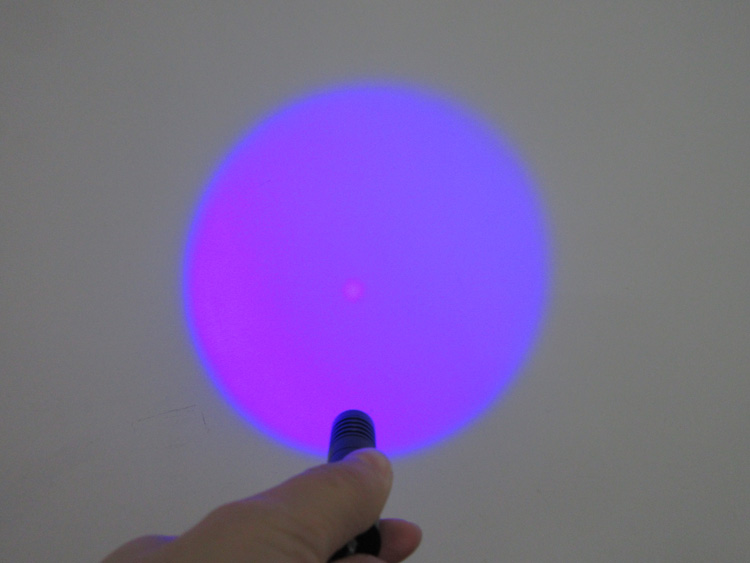

Beam mode: Solid circle

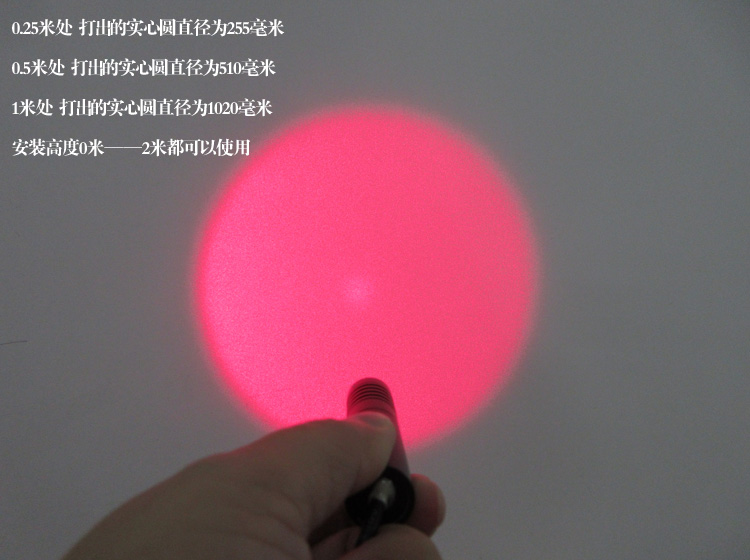

Beam size: circle diameter about 1020mm at 1000mm distance (proportional scaling)

Fan angle: about 39.2degree*30.4degree

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

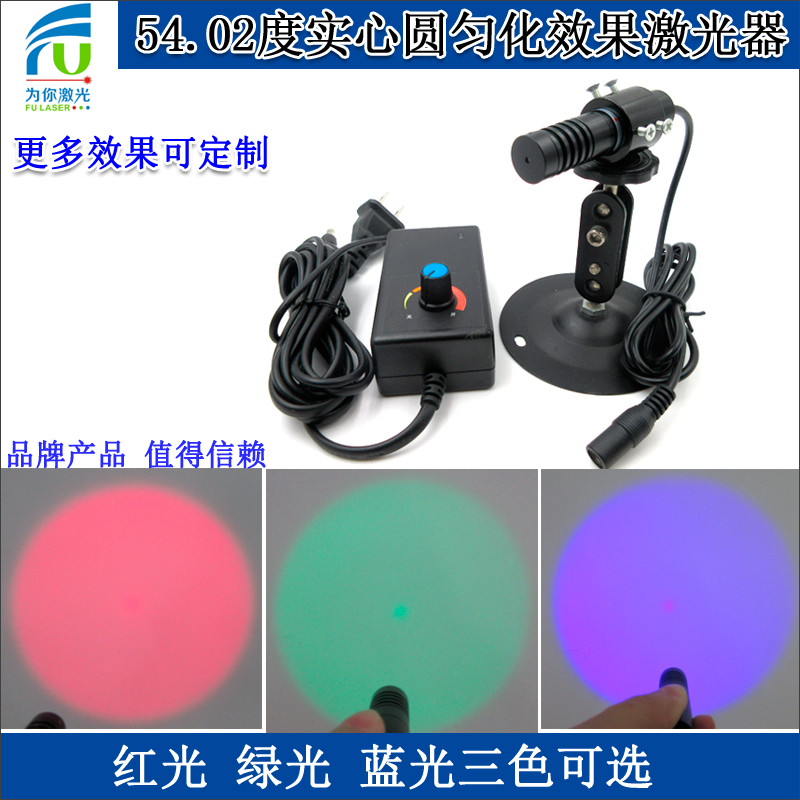

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece

FU-Lasers for you!
