Product Title：FU650MTX100-GD16-39.2°-362(RED) FU520MTX100-GD16-39.2°-362(GREEN) FU450MTX100-GD16-39.2°-362(BLUE) laser diode module with lattice Dot matrix distribution laser light (proportional scaling)

FU650MTX100-GD16-39.2°-362(RED) FU520MTX100-GD16-39.2°-362(GREEN) FU450MTX100-GD16-39.2°-362(BLUE) laser diode module with lattice Dot matrix distribution laser light (proportional scaling)

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650MTX100-GD16-39.2°-362(RED)

Wavelength: 650nm

----------------------------------------------------

Model: FU520MTX100-GD16-39.2°-362(GREEN)

Wavelength: 520nm

----------------------------------------------------

Model: FU450MTX100-GD16-39.2°-362(BLUE)

Wavelength: 450nm

---------------------------------------------------

Different model but in same parameter:

Output Power (mW): <100

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

Beam mode: lattice (Dot matrix distribution)

Beam size: about 356mm*272mm at 500mm distance (proportional scaling)

Fan angle: about 39.2degree*30.4degree

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

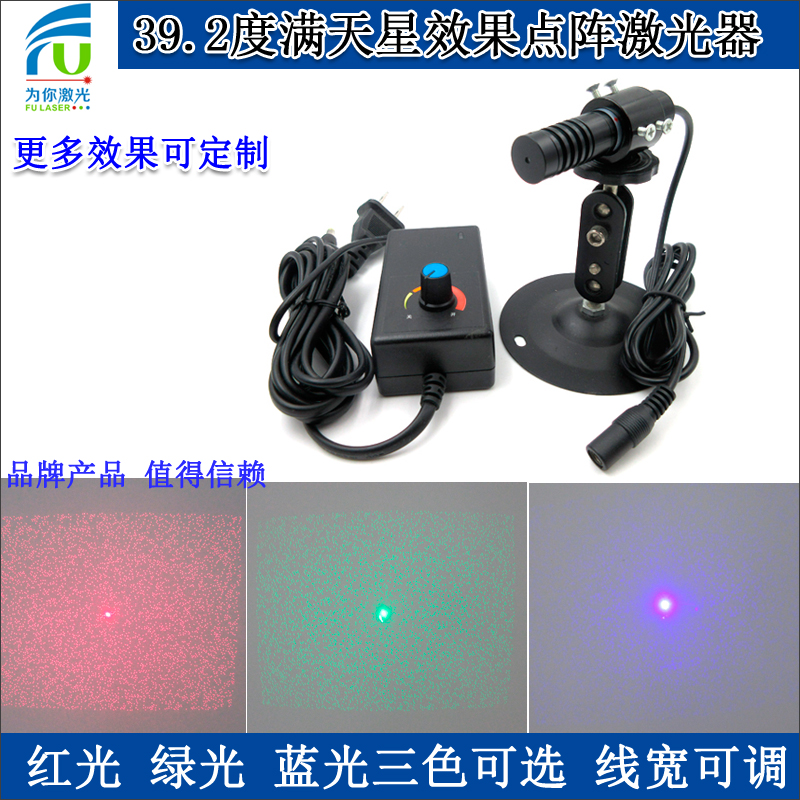

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece
