Product Title：FU650CFXYH100-GD16-40.63°-117(RED) FU520CFXYH100-GD16-40.63°-117(GREEN) FU450CFXYH100-GD16-40.63°-117(BLUE) laser diode module Rectangle homogenization effect(proportional scaling) Irregular lattice

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650CFXYH100-GD16-40.63°-117(RED)

Wavelength(nm): 650

----------------------------------------------------

Model: FU520CFXYH100-GD16-40.63°-117(GREEN)

Wavelength(nm): 520

----------------------------------------------------

Model: FU450CFXYH100-GD16-40.63°-117(BLUE)

Wavelength(nm): 450

---------------------------------------------------

Different model but in same parameter:

Output Power (mW): <100

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

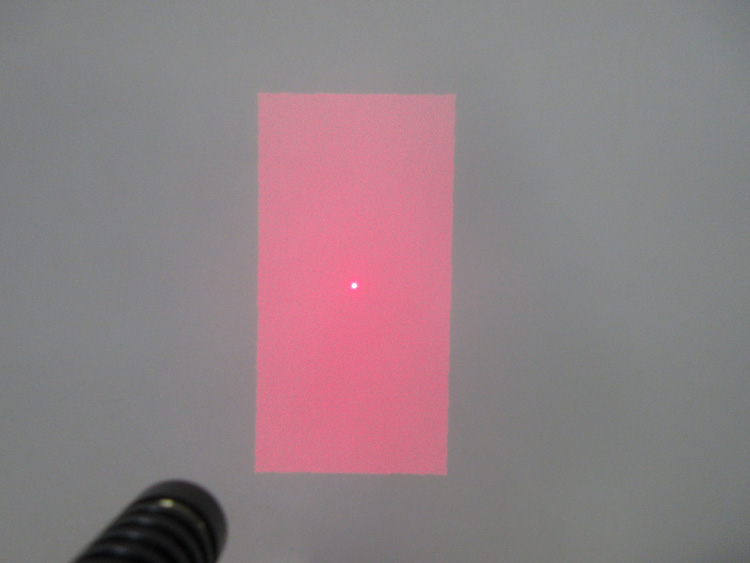

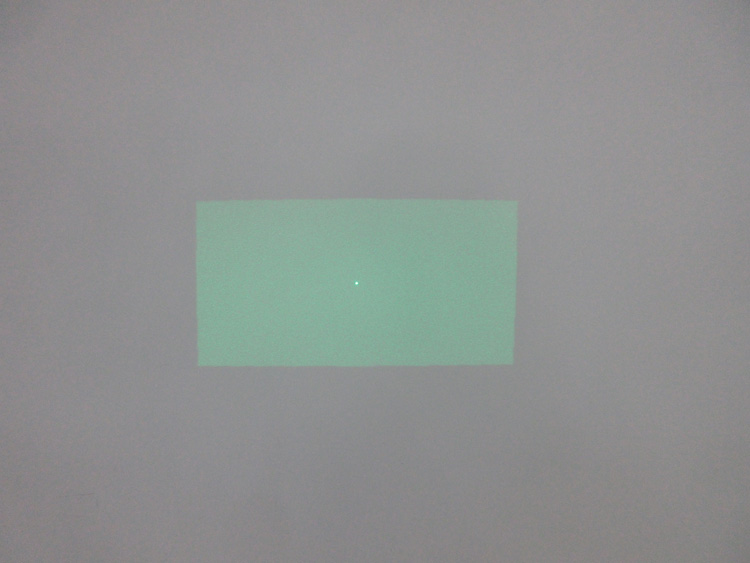

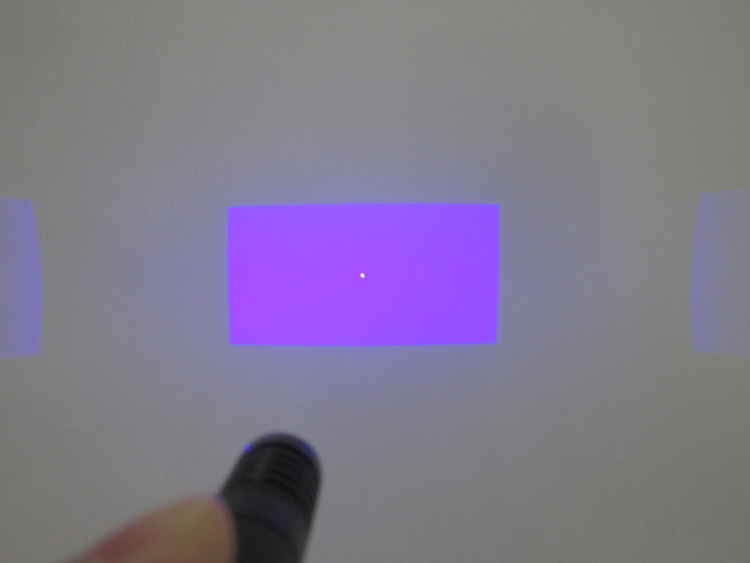

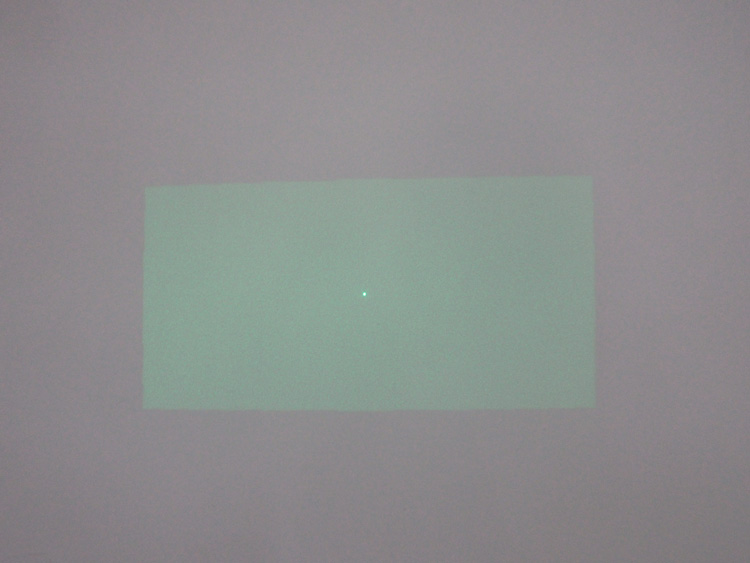

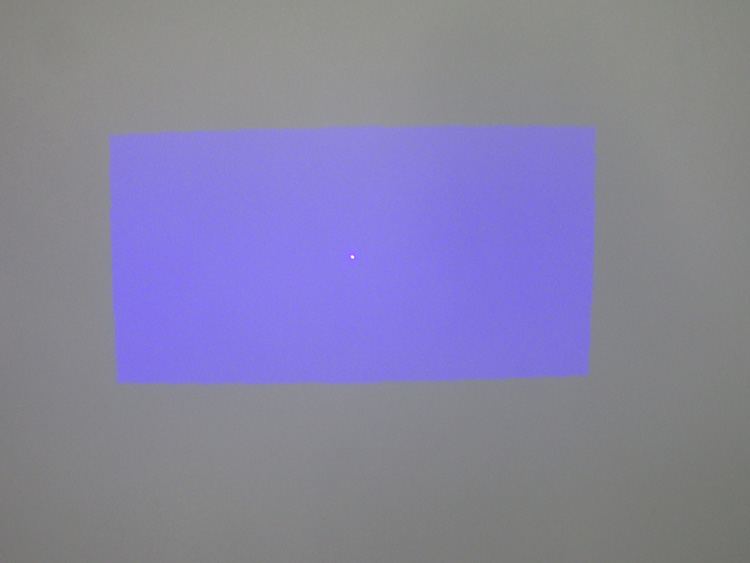

Beam mode: Rectangle homogenization

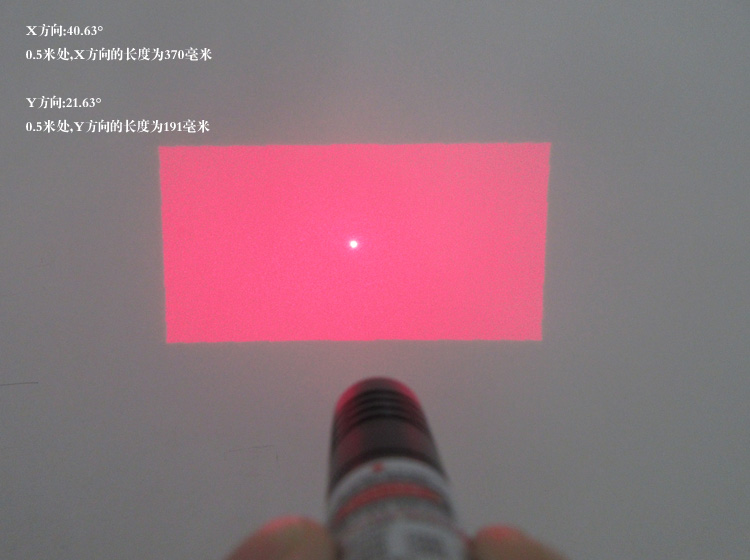

Rectangular long side: 370mm @500mm (proportional scaling), about 40.63degree

Rectangular short side: 191mm @500mm (proportional scaling), about 21.63degree

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

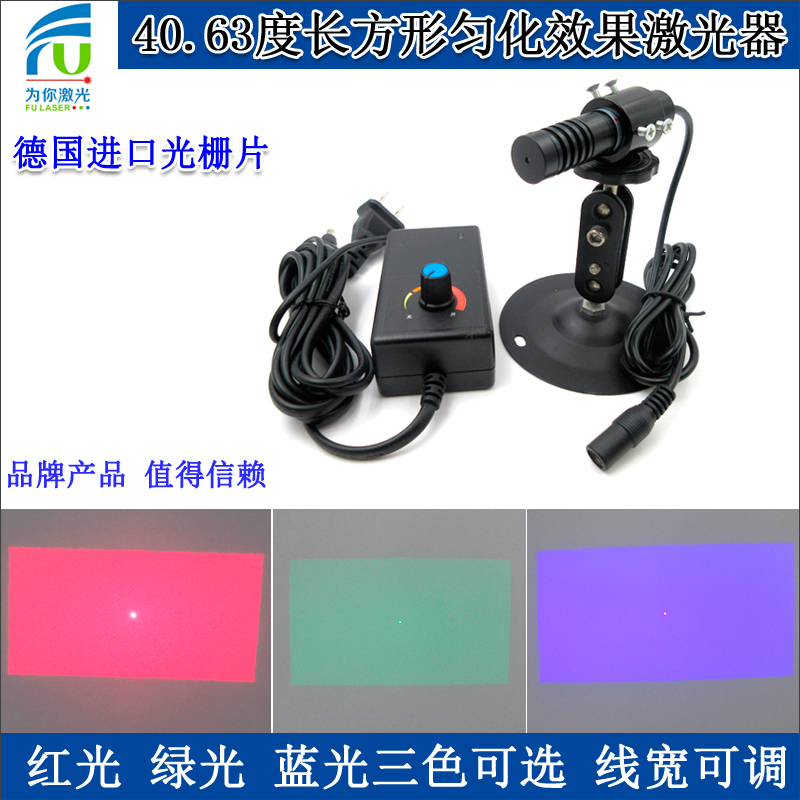

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece
