Product Title：FU650CFKSZ100-GD16-46.2°-270A(RED) FU520CFKSZ100-GD16-46.2°-270A(GREEN) FU450CFKSZ100-GD16-46.2°-270A(BLUE) laser diode module with square frame laser light (proportional scaling)

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650CFKSZ100-GD16-46.2°-270A(RED)

Wavelength(nm): 650

----------------------------------------------------

Model: FU520CFKSZ100-GD16-46.2°-270A(GREEN)

Wavelength(nm): 520

----------------------------------------------------

Model: FU450CFKSZ100-GD16-46.2°-270A(BLUE)

Wavelength(nm): 450

---------------------------------------------------

Different model but in same parameter:

Output Power (mW): <100

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

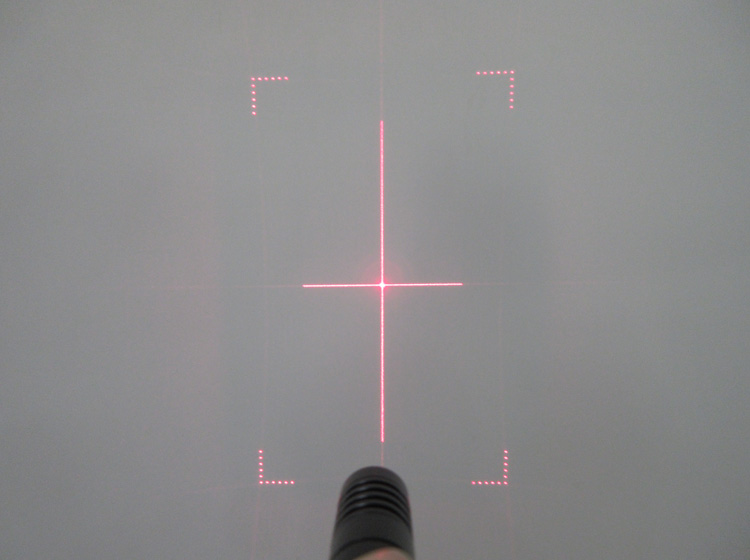

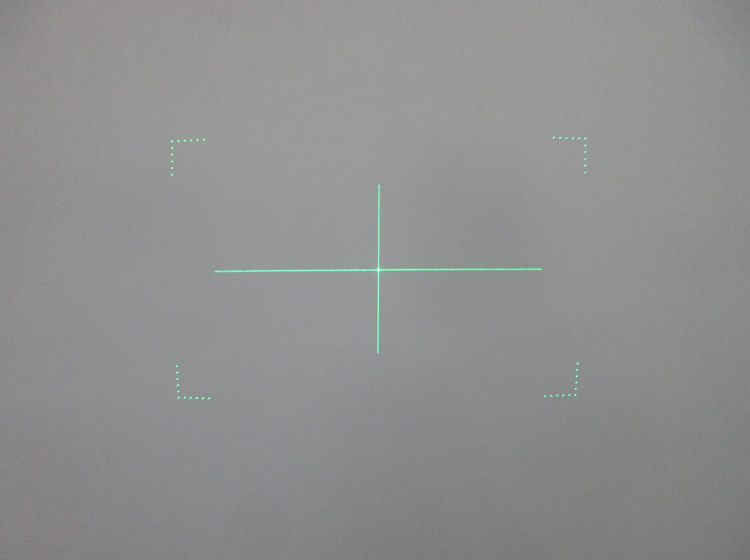

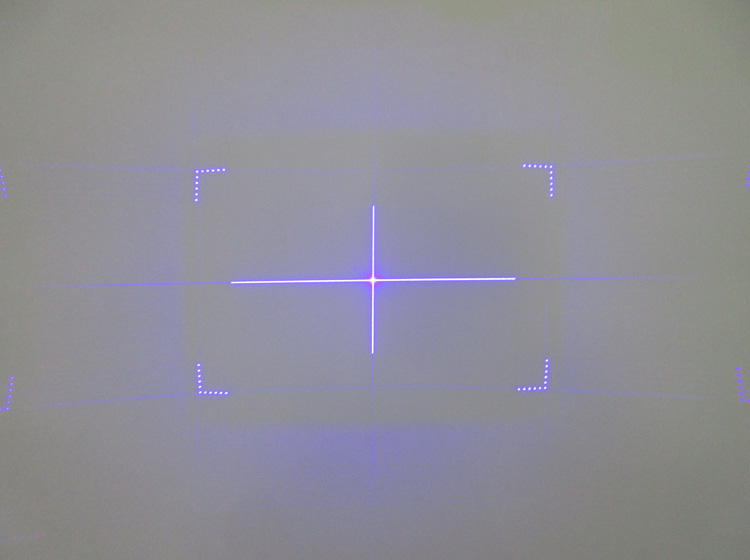

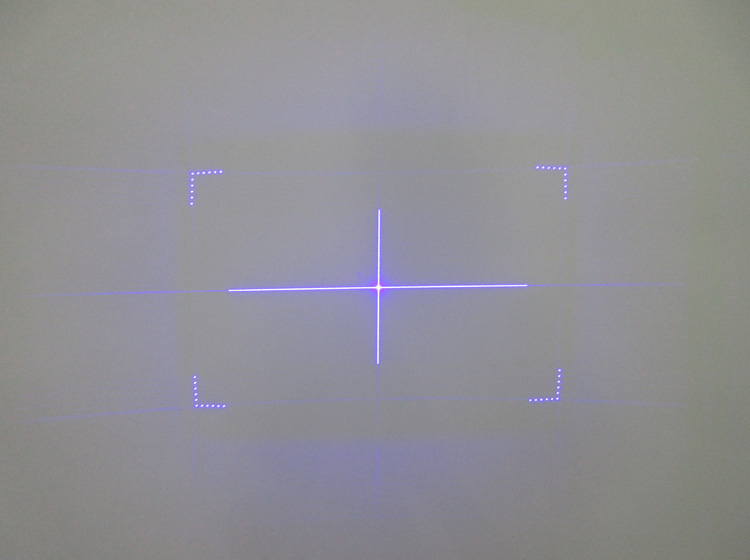

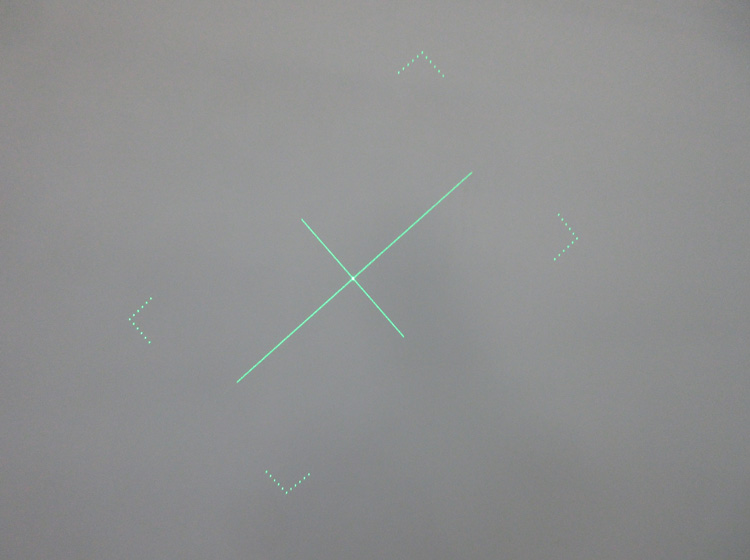

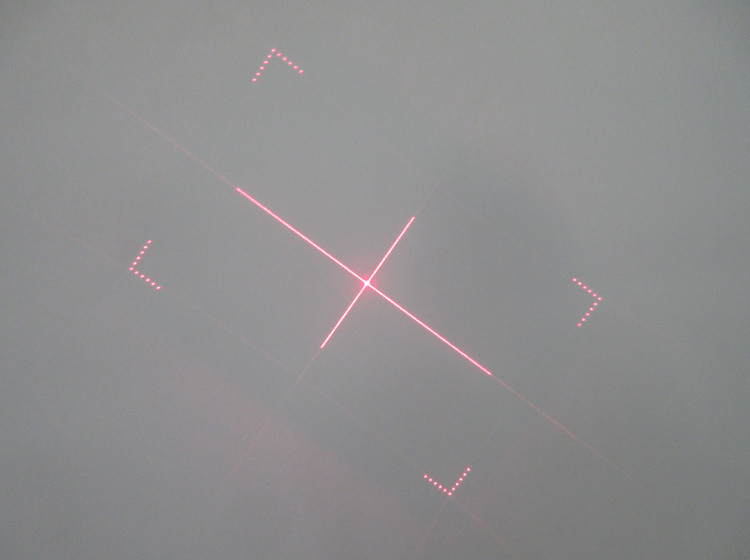

Beam mode: Frame

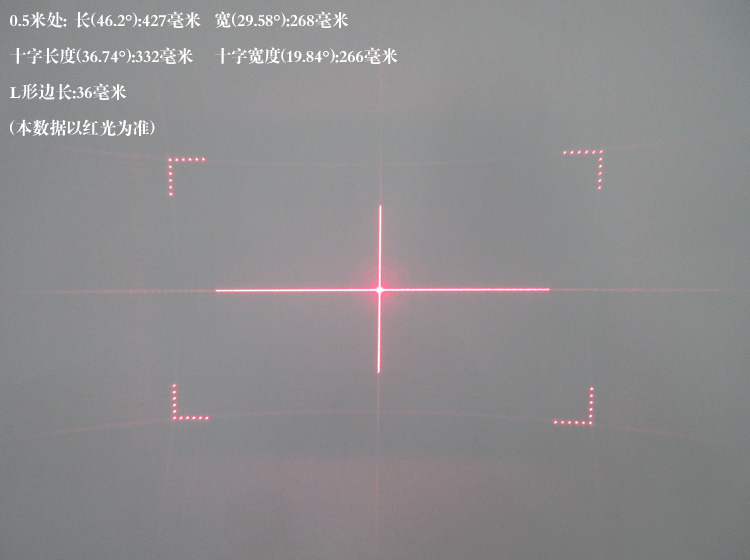

Beam size: @500mm

Square: Length: 427mm x Width: 268mm
Cross: Length: 332mm x Width: 266mm
L shape: Length：36mm x Width: 36mm (proportional scaling)

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

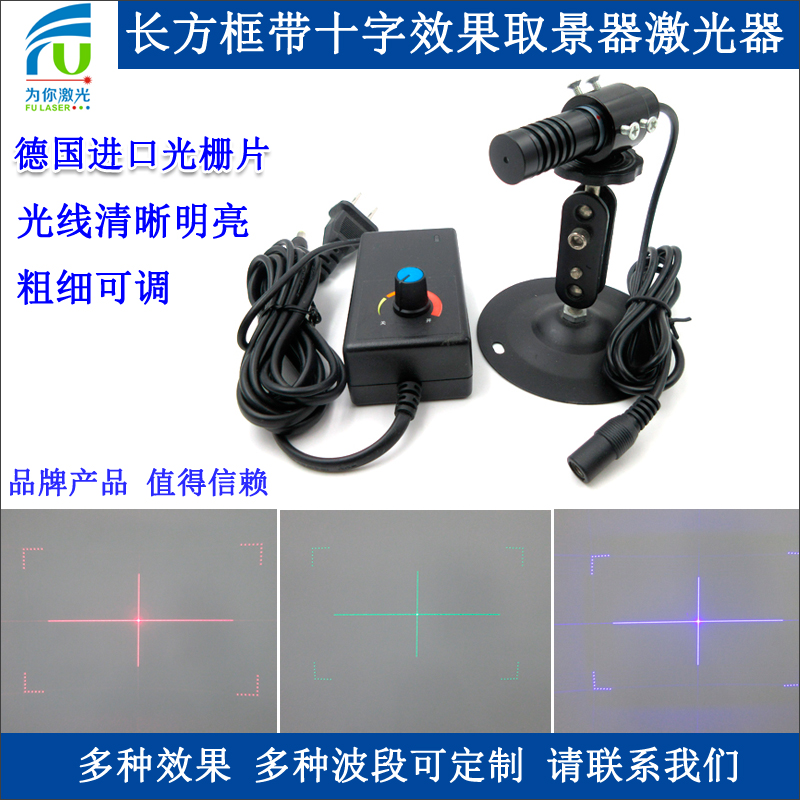

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece
