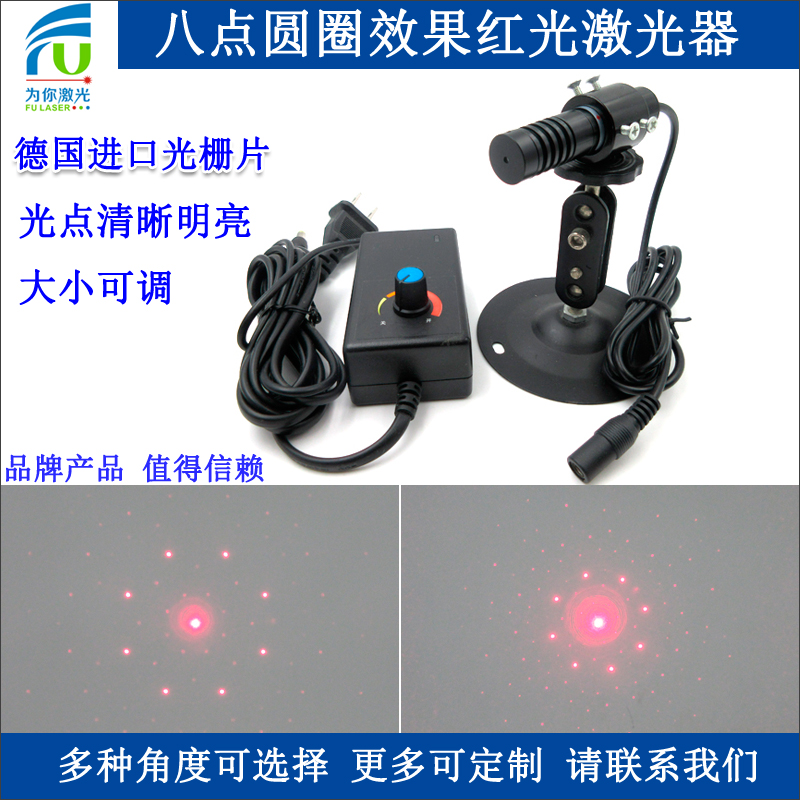

Product Title：FU650BDYQZXD100-GD16-2.04-315 FU650BDYQZXD100-GD16-2.86-294 FU650BDYQZXD100-GD16-3.63-300 FU650BDYQZXD100-GD16-4.1-328 FU650BDYQZXD100-GD16-5-350 FU650BDYQZXD100-GD16-5.8-321 FU650BDYQZXD100-GD16-5.82-296 FU650BDYQZXD100-GD16-8.25-314 dot circle lase

FU650BDYQ100-GD16-0.77-285 FU650BDYQ100-GD16-1.48-286 dot circle laser diode module lazer light

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650BDYQZXD100-GD16-2.04°-315

about φ36mm at 1meter

about φ73mm at 2meter

about φ110mm at 3meter   (proportional scaling)

--------------------------------------------------

Model: FU650BDYQZXD100-GD16-2.86°-294

about φ50mm at 1meter

about φ100mm at 2meter

about φ150mm at 3meter (proportional scaling)

--------------------------------------------------

Model: FU650BDYQZXD100-GD16-3.63°-300

about φ63mm at 1meter

about φ126mm at 2meter

about φ190mm at 3meter (proportional scaling)

--------------------------------------------------

FU650BDYQZXD100-GD16-4.1°-328

about φ71mm at 1meter

about φ142mm at 2meter

about φ215mm at 3meter (proportional scaling)

--------------------------------------------------

Model: FU650BDYQZXD100-GD16-5°-350

about φ87mm at 1meter

about φ174mm at 2meter

about φ262mm at 3meter (proportional scaling)

--------------------------------------------------

FU650BDYQZXD100-GD16-5.8°-321

about φ71mm at 1meter

about φ142mm at 2meter

about φ215mm at 3meter (proportional scaling)

--------------------------------------------------

FU650BDYQZXD100-GD16-5.82°-296

about φ100mm at 1meter

about φ200mm at 2meter

about φ300mm at 3meter (proportional scaling)

--------------------------------------------------

FU650BDYQZXD100-GD16-8.25°-314

about φ145mm at 1meter

about φ290mm at 2meter

about φ435mm at 3meter

----------------------------------------------------
