Product Title：FU650BDYQ100-GD16-0.77-285 FU650BDYQ100-GD16-1.48-286 dot circle laser diode module lazer light

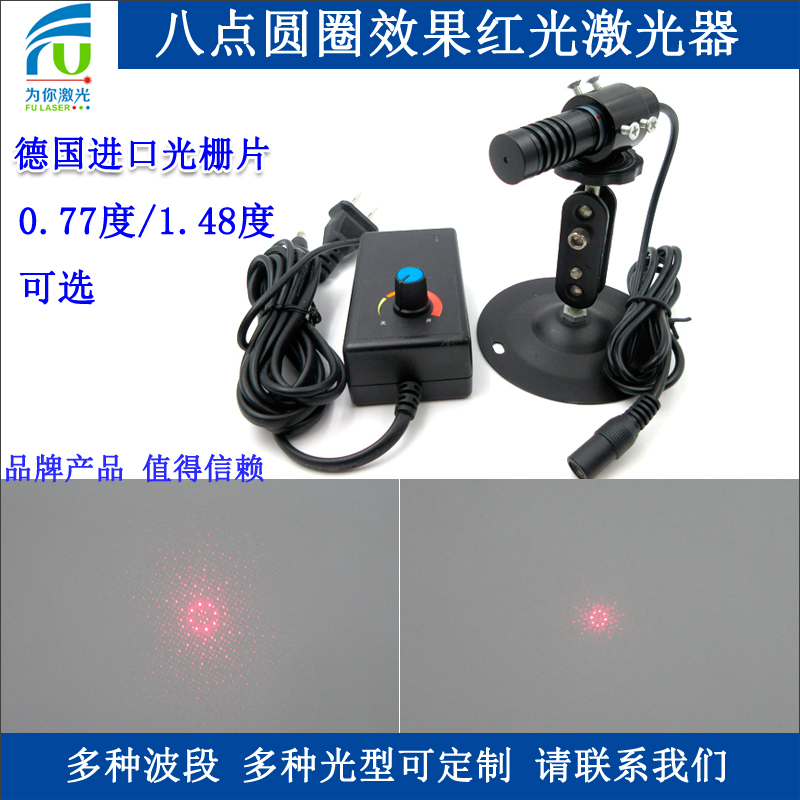

FU650BDYQ100-GD16-0.77-285 FU650BDYQ100-GD16-1.48-286 dot circle laser diode module lazer light

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650BDYQ100-GD16-0.77-285

about φ13mm at 1meter

about φ26mm at 2meter

about φ40mm at 3meter (proportional scaling)

----------------------------------------------------

Model: FU650BDYQ100-GD16-1.48-286

about φ25mm at 1meter

about φ50mm at 2meter

about φ75mm at 3meter (proportional scaling)

----------------------------------------------------

Different model but in same parameter:

Wavelength(nm): 650

Output Power (mW): <100

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

Beam mode: dot circle(8 dot)

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece

FU-Lasers for you!
