FU650MTX100-GD16-90°(RED) FU520MTX100-GD16-90°(GREEN) FU450MTX100-GD16-90°(BLUE) laser diode module with lattice Dot matrix distribution laser light (proportional scaling)-Customized laser(RGB IR)-深圳市富喆科技有限公司-官方网站-Shenzhen Fuzhe Technology Co., Ltd.

Product Title：FU650MTX100-GD16-90°(RED) FU520MTX100-GD16-90°(GREEN) FU450MTX100-GD16-90°(BLUE) laser diode module with lattice Dot matrix distribution laser light (proportional scaling)

FU650SXY100-GD16-53.1°(RED) FU520SXY100-GD16-53.1°(GREEN) FU450SXY100-GD16-53.1°(BLUE) laser diode module with solid circle Homogenized laser light

More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.

Brand: FU(For You)

Model: FU650MTX100-GD16-90°(RED)

Wavelength(nm): 650

----------------------------------------------------

Model: FU520MTX100-GD16-90°(GREEN)

Wavelength(nm): 520

----------------------------------------------------

Model: FU450MTX100-GD16-90°(BLUE)

Wavelength(nm): 450

---------------------------------------------------

Different model but in same parameter:

Output Power (mW): <100

Operating Voltage(VDC): 3-5

Beam focus: Adjustable

Beam mode: lattice (Dot matrix distribution)

Beam size: 2000mm*2000mm at 1000mm distance (proportional scaling)

Transverse Mode : Near TEM00

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Total Power Consumption (W) 1

Cooling Method : Passive air+Extra heat sink

Cable length(cm): <100

Standard Warranty (months): 6

Laser Head Dimensions (mm): 70(L) x 16(D)

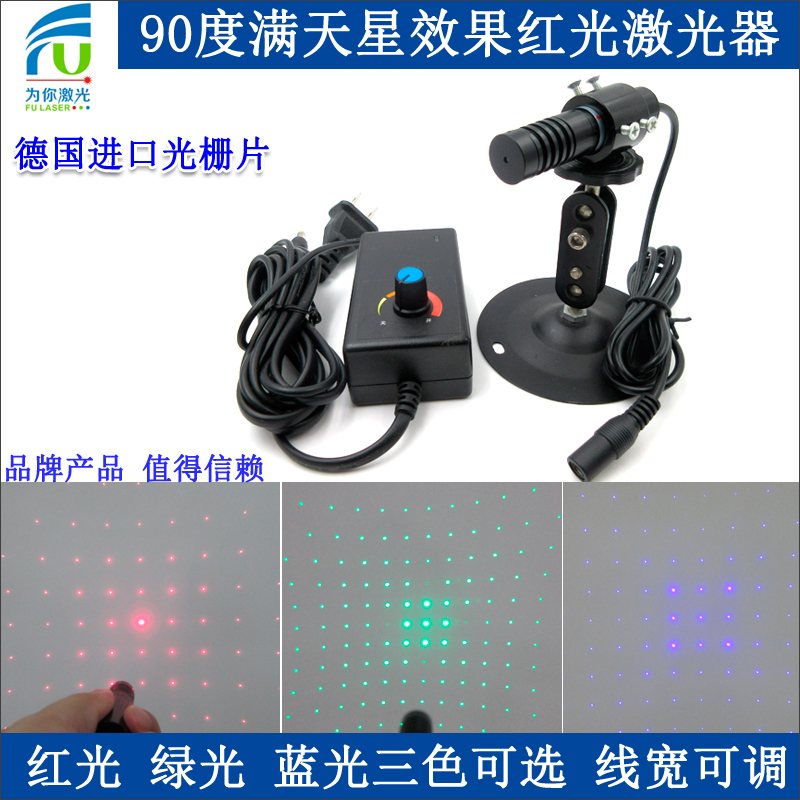

Package Includes:

Laser module -1 piece

Power supply 1-3VDC- 1 piece

Tripod(Bracket/Mount)- 1 piece
