Product Title：FU650MTX100-GD16-57°Diffractive optical elements(DOE) 650nm Dot Pseudo-Random Irregular speckle Pattern laser with focusable Laser light module

Brand: FU(For You)

Model

:

  FU650MTX100-GD16-57°

Wavelength: 660nm in picture (405/450/520/532/635/650/670/685nm for choose)

Output power: <100mW

Operating voltage: DC2.8~3.2V or 3.5~25V

Dimension: φ16*70mm

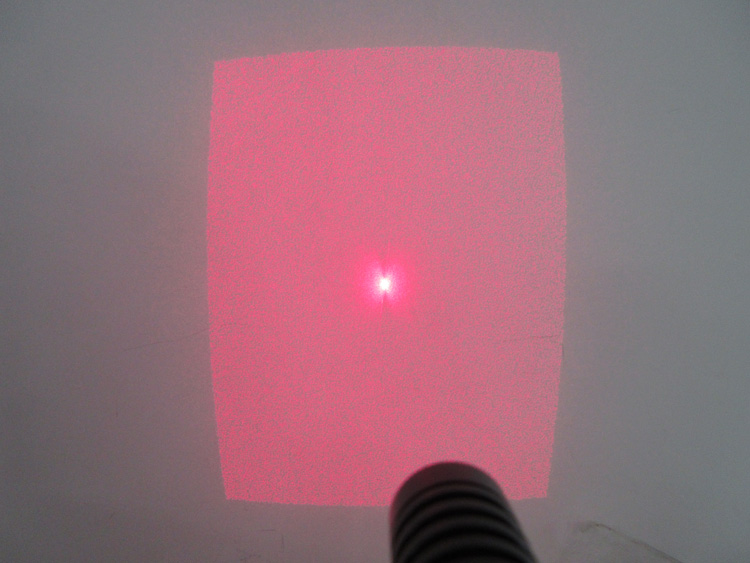

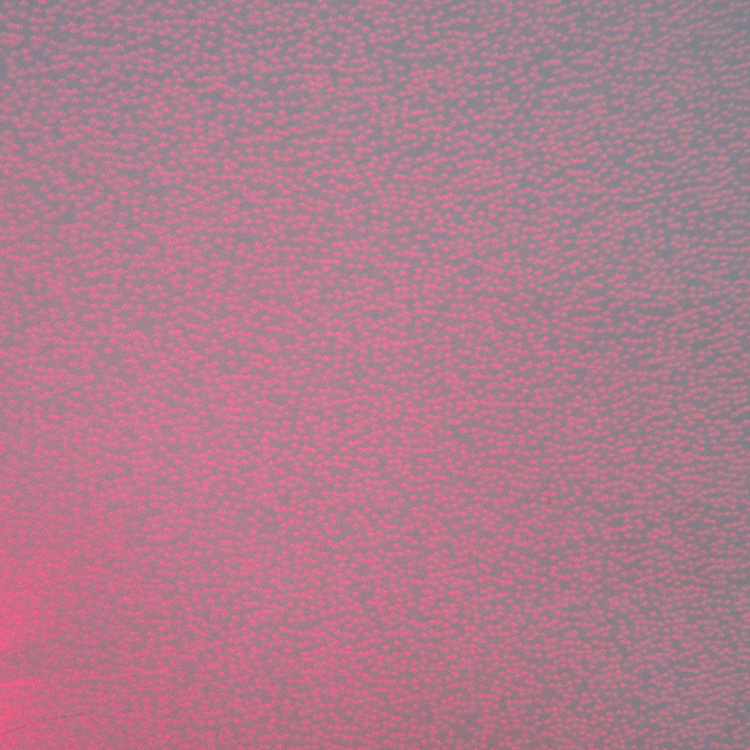

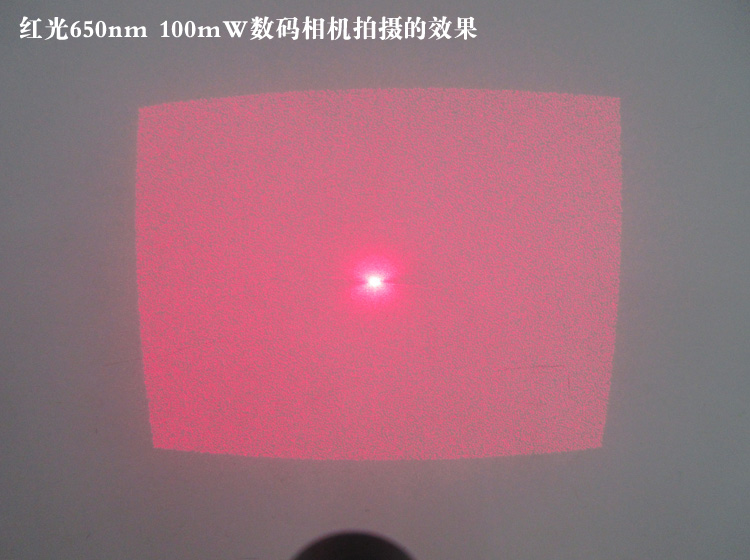

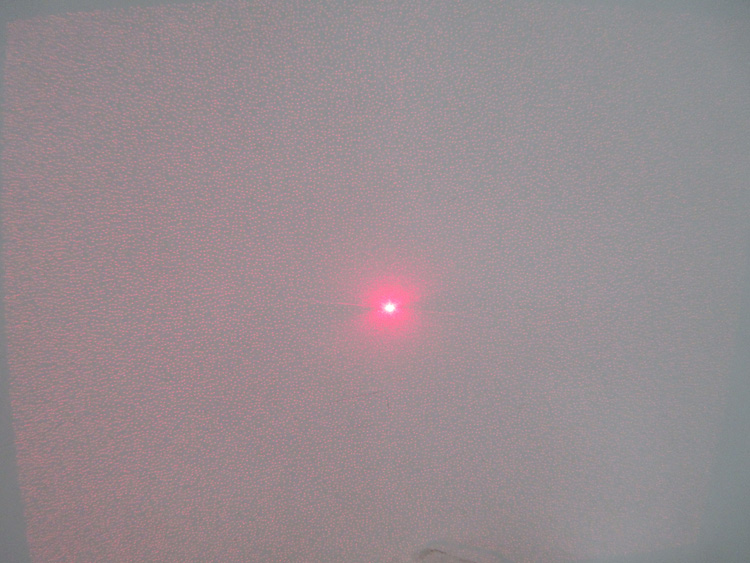

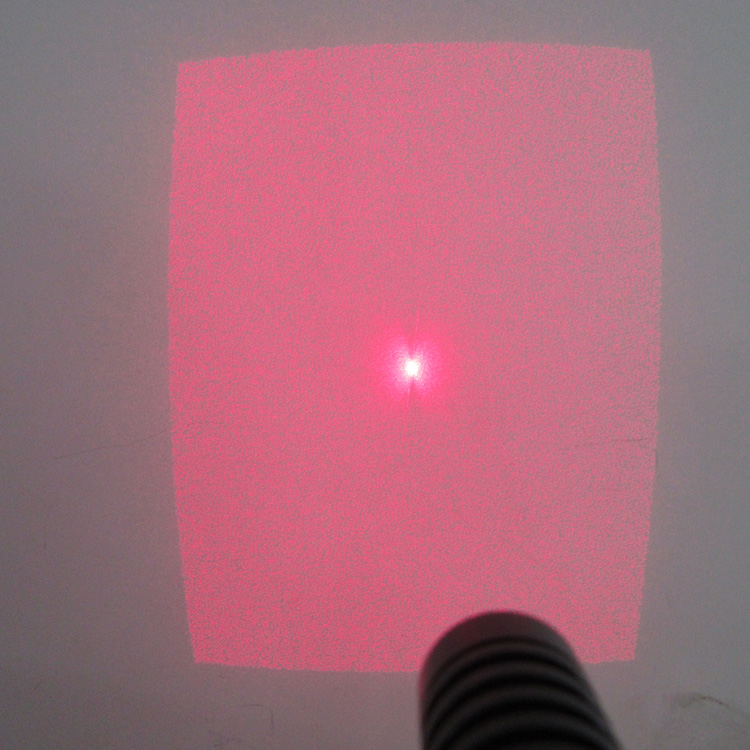

Beam mode: Pseudo-Random Irregular speckle Pattern(adjustable focus)

Lens: Plastics lens

Operating temperature: -10~40°C
Storage temperature: -40-80°C
Beam size: @1000mm, area:Length: 1080mm, Width: 800mm

(proportional scaling)
