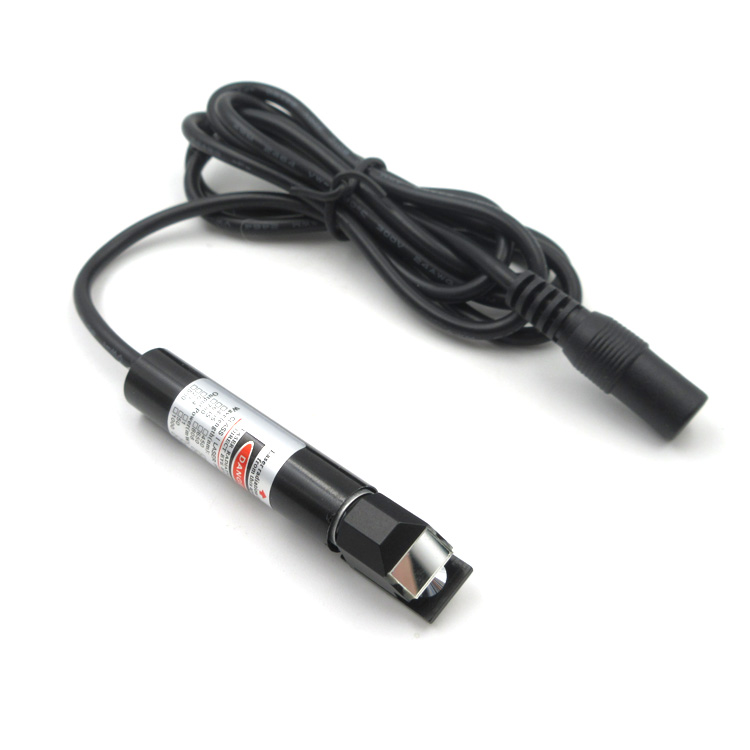

Product Title：FU639180L100-BD1270,629~649nm 639nm 100mW 180 degree line laser diode module with fixed focus
More customized diode laser modules with different wavelengths and power options are available additionally to the standard types.
Brand: FU
Line Model: FU639180L100-BD1270

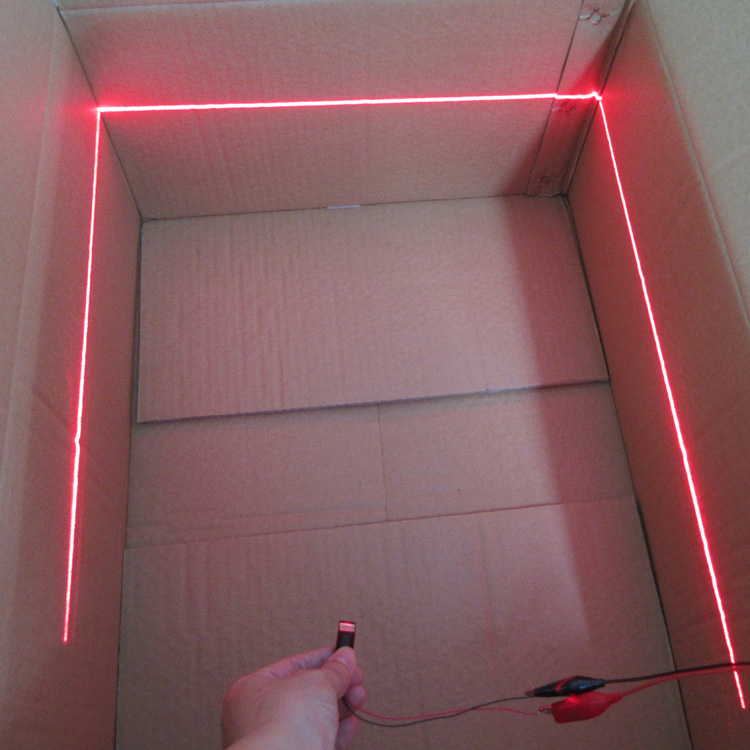

Projection Type : Line
Projection Fan angle (°, full angle): 180
Wavelength(nM): 639±10
Output Power (mW): <100
Operating Voltage(VDC): 3
Beam focus: Adjustable
Divergence (mrad, full angle): <2
Transverse Mode : Near TEM00
Operating Temperature Range (°C): -10 to +40
Storage Temperature Range (°C): -20 to +50
Total Power Consumption (W) 1
Cooling Method : Passive air+Heat sink
Cable length(cm): <100
Standard Warranty (months): 6

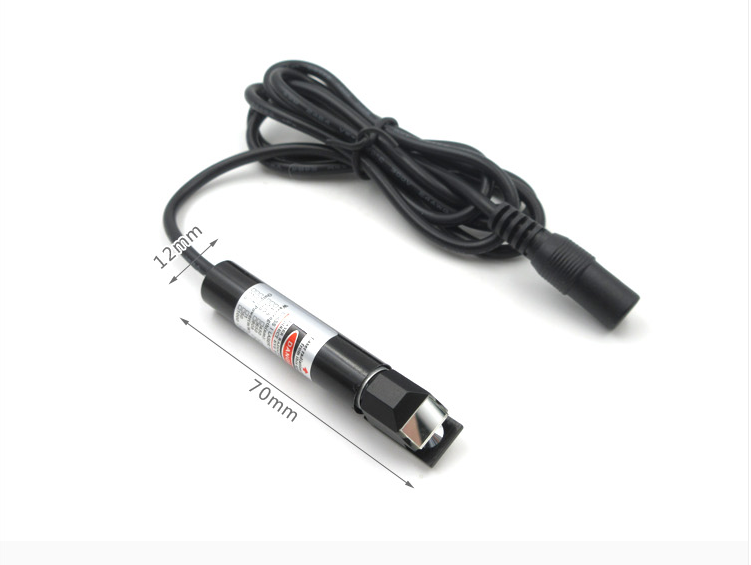

Laser Head Dimensions (mm): 70(L) x 12(D)
---------------------------------------------------------------

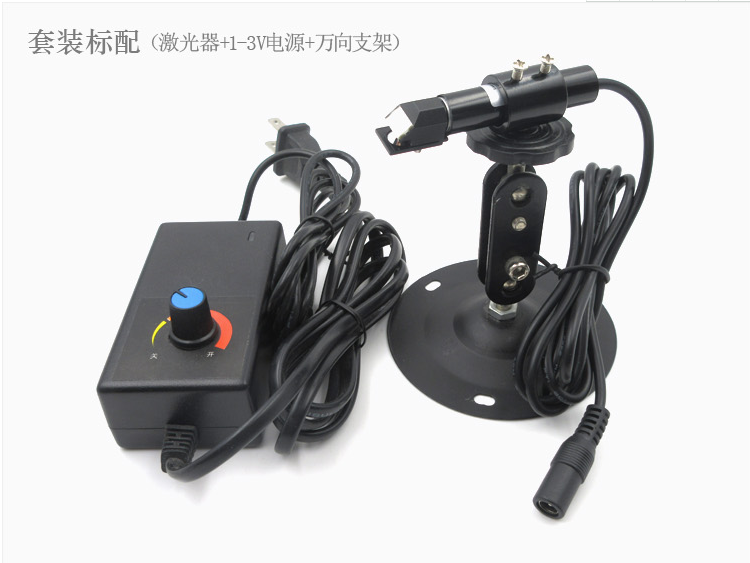

Package Includes:
Laser module -1 piece
Power supply- 1 piece
Tripod(Bracket/Mount)- 1 piece
FU639180L100-BD1270,629~649nm 639nm 100mW 180 degree line laser diode module with fixed focus
