Product Title：FU66081WG100-GD16 640~665nm 650nm 660nm 100mW Diffractive optical elements(DOE) 9*9=81 Square mesh Laser Grid Matrix with adjustable focus
Brand: FU(For You)
Wavelength: 660nm in picture (405/450/520/532/635/650/670/685nm IR for choose)
Output power: <100mW
Operating voltage: DC2.8~3.2V or 3.5~25V

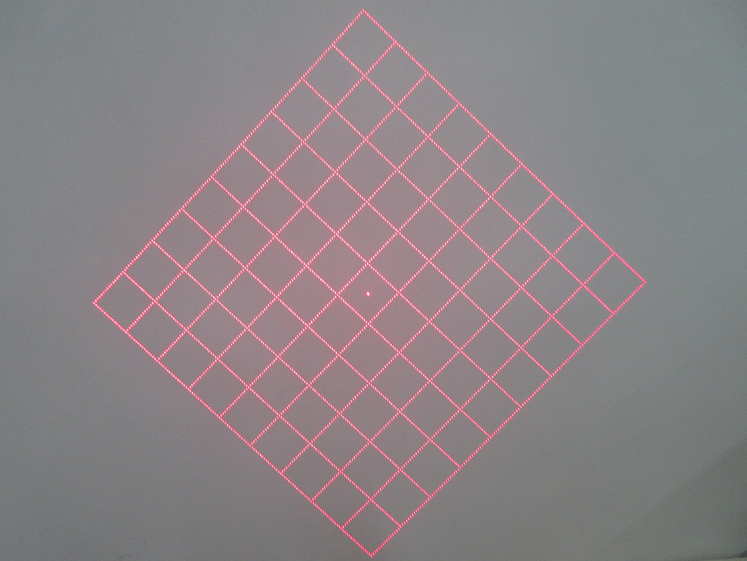

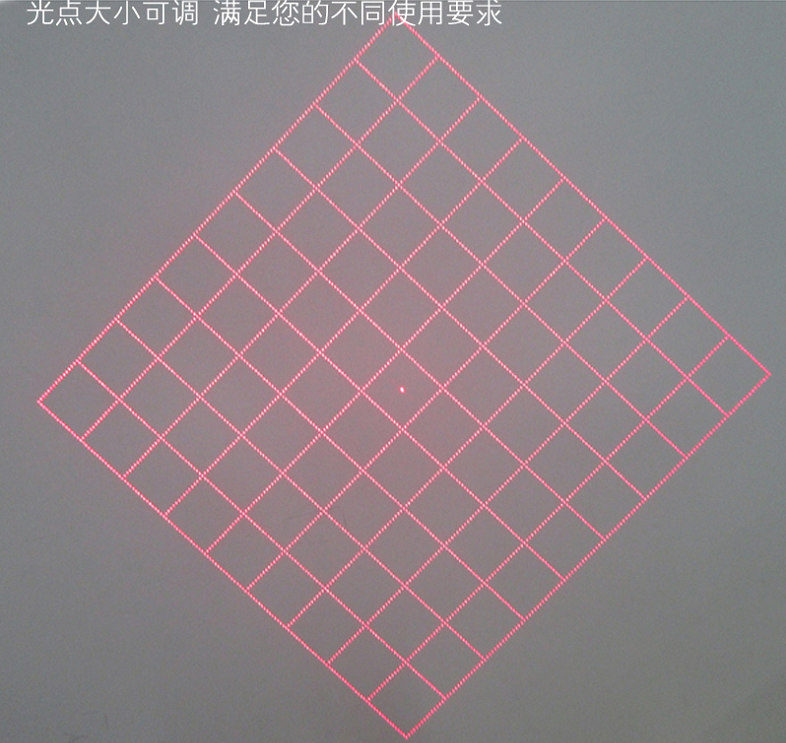

Beam mode: 9*9=81 grid(adjustable focus)
Lens: Plastics lens
Operating temperature: -10~40°C
Storage temperature: -40-80°C

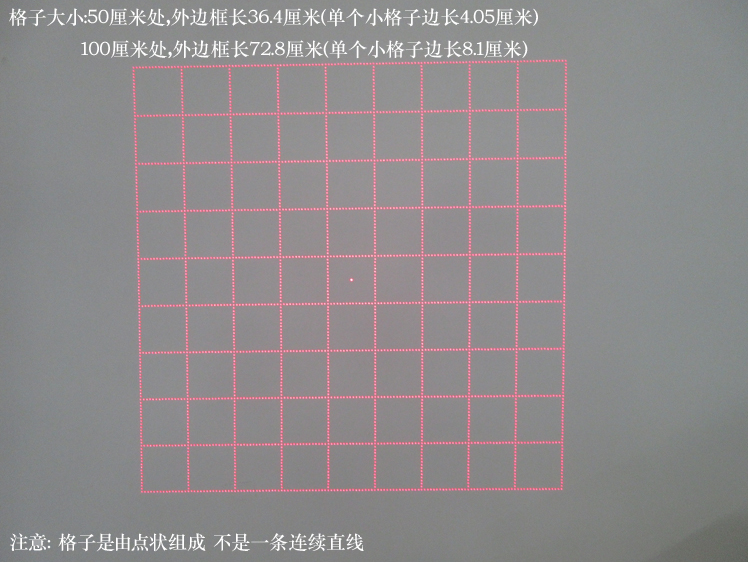

Beam size: @1000mm, length: 728 mm, width: 728 mm, each small grid: 81*81 mm (proportional scaling)

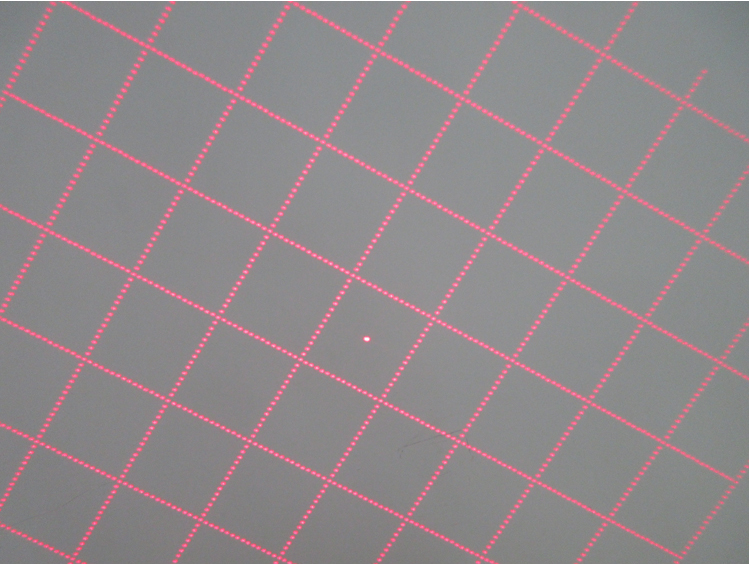

Note: The line was made by so many dots, not a continous line.
FU66081WG100-GD16 640~665nm 650nm 660nm 100mW Diffractive optical elements(DOE) 9*9=81 grid pattern with adjustable focus
