Brand:FU(For You)
Model: FU635SG5-C6/FU635SG5-YC6
Specification：
Wavelength(nm): 635±10
Output Power (mW): <5
Operating voltage(VDC): 3~5

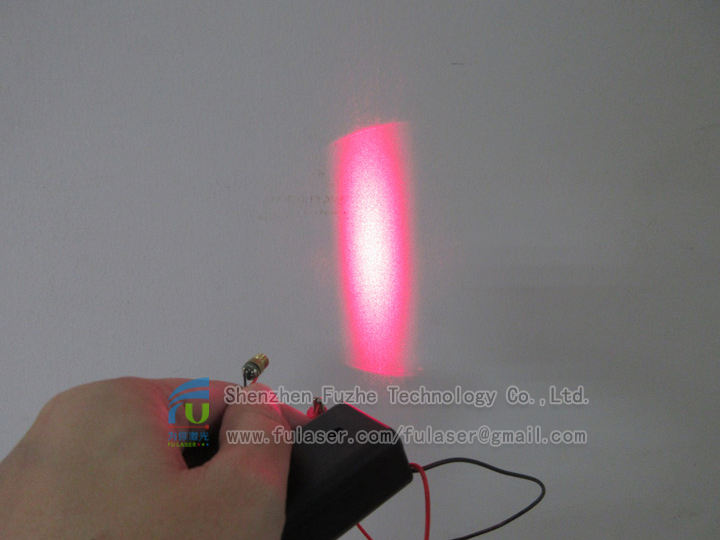

Projection Type : Approximate elliptical spot
Divergence (mrad, full angle): <1
Transverse Mode: Near TEM00
Operating Temperature Range: (°C) -10 to 40
Storage Temperature Range : (°C) -10 to 50
Total Power Consumption (W): 1
Cooling Method : Heat sink
Standard Warranty (months): 6
MTTF (operational hours) :3000
Laser Head Dimensions (mm) 6.8 (L) x 6(D)
PCB Dimensions (mm): 6.5 (L) x 6(W)---FU635SG5-C6
2 (H) x 6(D)---FU635SG5-YC6
------------------
Package Includes:
Laser module -1 piece
-------------------
FU-Lasers for you!

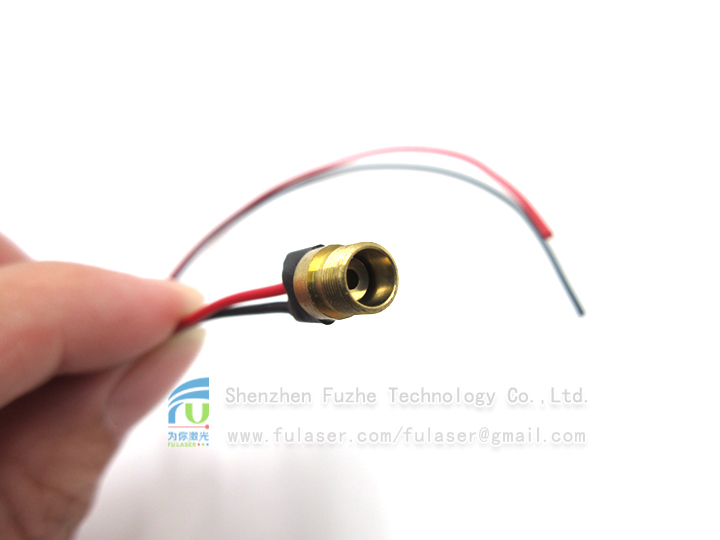

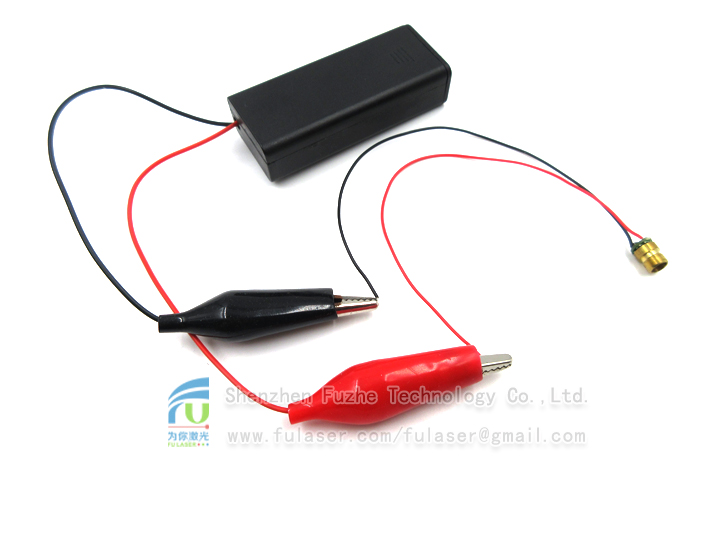

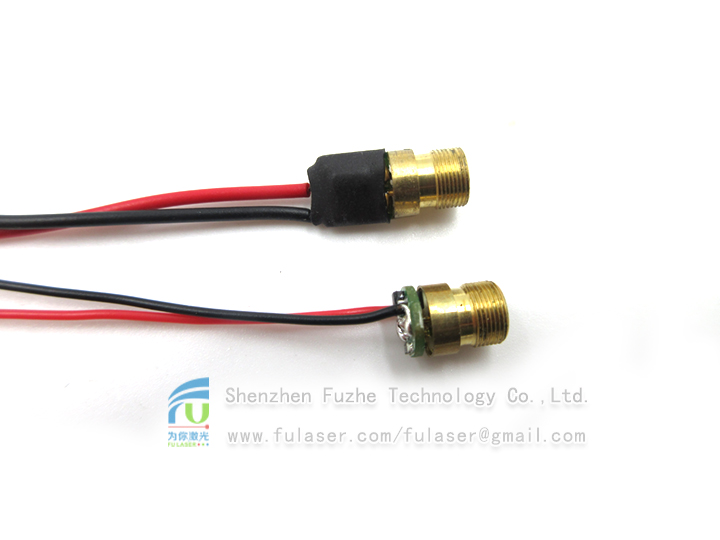

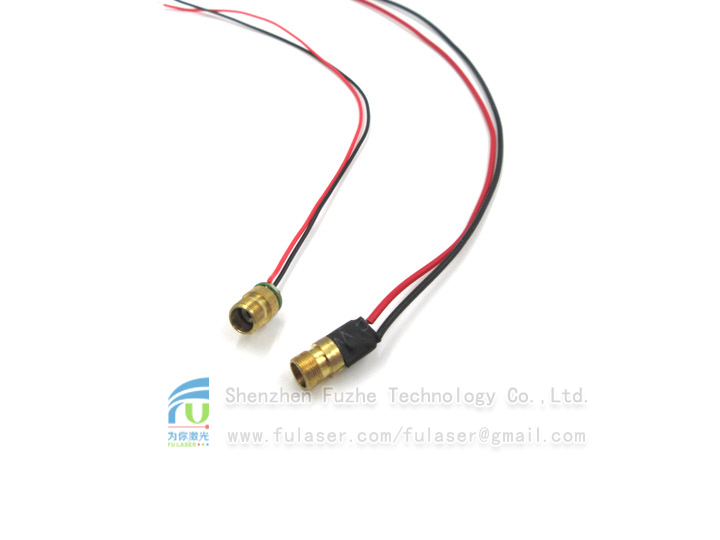

FU635SG5-C6/FU635SG5-YC6 red laser diode module, with Approximate elliptical spot
