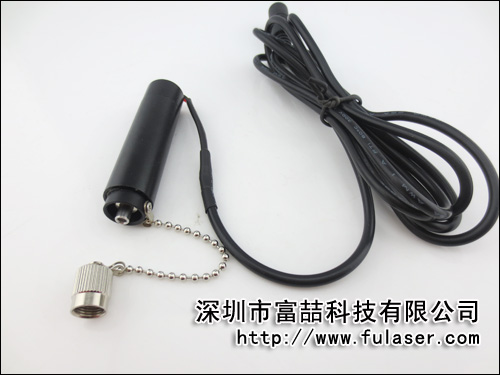

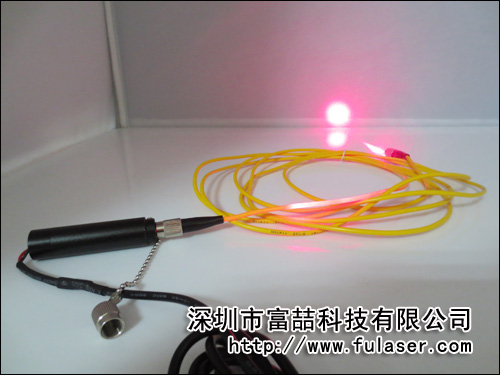

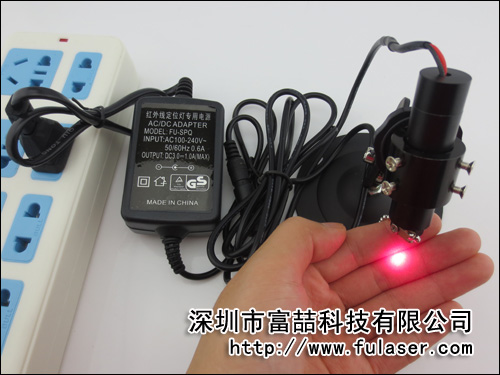

Product Title：FU650GX100-BD16 continuous wave fiber coupled laser FC connector
Our fiber pigtailed laser products have multi-wavelength choices covering
the spectra band from blue to IR, which including 405nm, 457nm, 473nm,
532nm, 635nm, 660nm, 671nm, 785nm, 808nm, 1064nm, and others

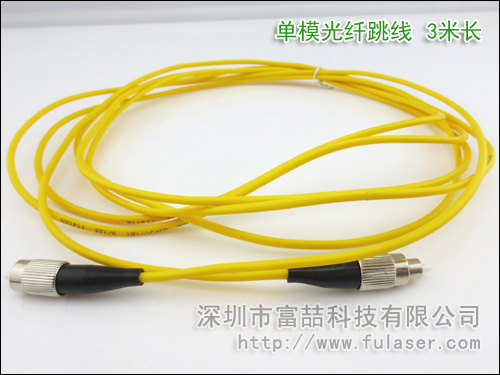

customized colors. Varied options of fibers (Single-mode) and customized
fiber output collimators are available at the same time.
Featured with high reliability performance under laser wielding technology
and low cost design, Fiber Pigtailed Lasers are idea solutions of bringing
flexibility and convenience to industrial opto-electronic system design and
maintenance by replacing replace traditional free-space lasers and color
combiners without adding cost burden.
The Fiber Pigtailed Laser Family covers a wide range of applications in
Laser Aiming, Biomedical Instrumentation, and Raman Spectrometer,
Digital Printing and other measurement systems.
Specifications:
Model:FU650GX100-BD16
Wavelength: 650nm
laser source power: <100mW
Output power: <30mW
Operating voltage: DC2.8-3.2V
Spatial Mode: Near TEM00(SM)
Fiber Coupling Efficiency: >30%(laser diode)
Fiber type: FC connector
Operating Temperature: 10C - +35C
Storage Temperature: -10C - 80C
Dimensions: 16mm * 70mm
MTTF: 5000-10000 hours
